Model	AMD Ryzen™ 5 5600
Product Code	100-100000927BOX
Series	Ryzen 5000 Series
Processor Architecture	Zen 3
CPU Socket	AM4
PCI Express® Version	PCIe® 4.0
Total Cores	6
Total Threads	12
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 4.4GHz
Base Clock	3.5GHz
L1 Cache	384KB
L2 Cache	3MB
L3 Cache	32MB
Graphics Model	Discrete Graphics Card Required
Max of Memory Channels	2
System Memory Subtype	UDIMM
Max Memory Size	128GB
System Memory Type	DDR4
Max Memory Speed	2x1R:DDR4-3200 // 2x2R: DDR4-3200 // 4x1R: DDR4-2933 // 4x2R: DDR4-2667
ECC Support	Yes (Requires mobo support)
Supported Extensions	AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Supporting Chipsets	X570 , X470 , X370 , B550 , B450 , B350 , A520
OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Default TDP	65W
PPT	88W
Max Operating Temperature	90°C
Thermal Solution (PIB)	AMD Wraith Stealth
CPU Boost Technology	Precision Boost 2
Unlocked for Overclocking	Yes
Processor Technology for CPU Cores	TSMC 7nm FinFET
Processor Technology for I/O Die	12nm
Native USB 3.2 Gen 2 (10Gbps)	4
Native SATA Ports	2
Package Die Count	2
Instruction Set	x86-64
Native PCIe® Lanes (Total/Usable)	24, 20
Additional Usable PCIe Lanes from Motherboard	X570: 16x Gen 4 // X470: 2x Gen 3, 8x Gen 2
NVMe Support	Boot , RAID0 , RAID1 , RAID10
Key Features	AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

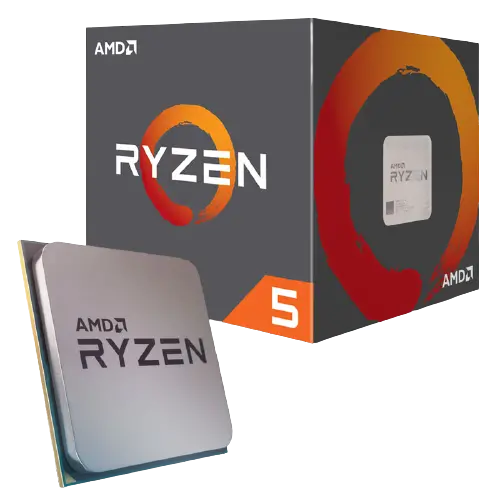

AMD Ryzen 5 5600-BOX – 6 Cores & 12 Threads, 4.4GHz, 34MB Cache, 3200 DDR4, PCIe 4.0, AM4
