Brand	AMD

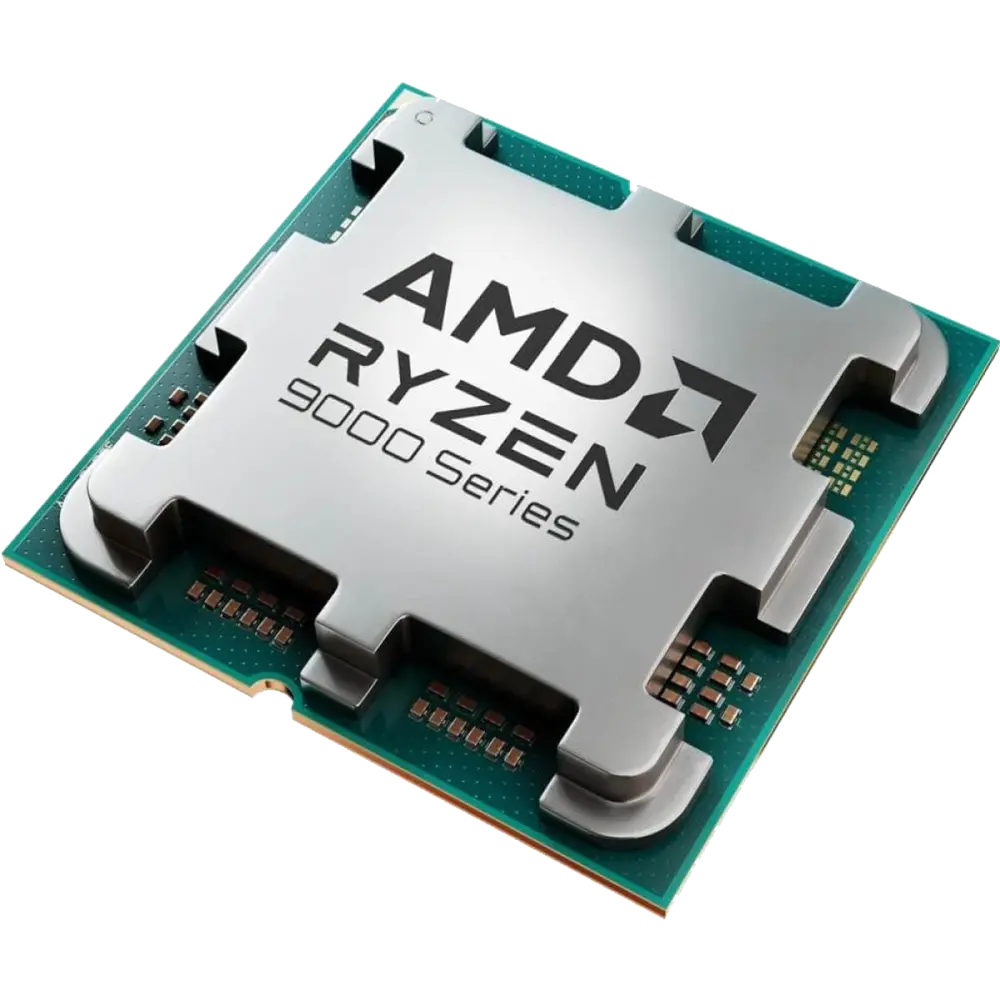

Model	AMD Ryzen™ 5 9500F
Product Number	100-000001406
Series	Ryzen 9000 Series
Processor Architecture	Zen 5
CPU Socket	AM5
PCI Express® Version	PCIe® 5.0
Total Cores	6
Total Threads	12
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 5GHz
Base Clock	3.8GHz
L1 Cache	480KB
L2 Cache	6MB
L3 Cache	32MB
CPU Boost Technology	Precision Boost 2
Graphics Model	Discrete Graphics Card Required
Max of Memory Channels	2
System Memory Subtype	UDIMM
Max Memory Size	192GB
System Memory Type	DDR5
Max Memory Speed	2x1R:DDR5-5600 // 2x2R: DDR5-5600 // 4x1R: DDR5-3600 // 4x2R: DDR5-3600
ECC Support	Yes (Requires mobo support)
Default TDP	65W
PPT	88W
Max Operating Temperature	95°C
Thermal Solution (PIB)	AMD Wraith Stealth
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
Processor Technology for CPU Cores	TSMC 4nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
Package Die Count	2
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 2.0 (480Mbps)	1
Native PCIe® Lanes (Total/Usable)	28 , 24
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
Supported Technologies	AMD EXPO™ Technology , AMD Ryzen™ Technologies
OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

AMD Ryzen 5 9500F 6 Cores & 12 Threads – 5.0 GHz, 38MB Cache, 5600 DDR5, PCIe 5.0, AM5, MPK

Product Description
