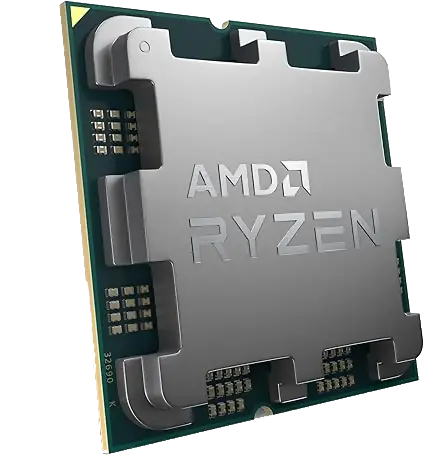

AMD Ryzen 7 9800X3D Tray Desktop Processor:

The AMD Ryzen 7 9800X3D Tray is a high-performance OEM desktop processor built for gamers seeking maximum frame rates and excellent efficiency. Featuring 8 Zen 5 cores, 16 threads, second-generation AMD 3D V-Cache technology, 96MB L3 cache, and boost speeds up to 5.2GHz, it delivers exceptional gaming performance while maintaining strong productivity capabilities. The tray version includes the processor only and does not include retail packaging or a CPU cooler. AMD recommends a high-performance air cooler or liquid cooler for optimal performance.

Designed for gamers who demand every possible frame, the AMD Ryzen 7 9800X3D Tray combines Zen 5 architecture with second-generation AMD 3D V-Cache to reduce memory latency and improve gaming performance. Whether you're playing competitive esports titles, immersive AAA games, streaming gameplay, or creating content, the processor provides a balance of speed, responsiveness, and efficiency. Choosing the tray version allows experienced PC builders to pair the CPU with their preferred high-performance air or liquid cooler while saving on the cost of retail packaging.

Key Features:

8 Zen 5 CPU Cores
16 Processing Threads
Up to 5.2GHz Boost Clock
4.7GHz Base Clock
Second-Generation AMD 3D V-Cache
8MB L2 & 96MB L3 Cache
104MB Total Cache
AM5 Socket
PCIe 5.0 Support
DDR5 Memory Support
AMD EXPO Technology
Precision Boost Overdrive
Curve Optimizer Support
Integrated AMD Radeon Graphics

specs:

Product Collection	Ryzen 9000 Series
Processor Line	AMD Ryzen™ 7 9800X3D
Product Number	100-000001084
Total Cores	8
Total Threads	16
Max Turbo Frequency	Up to 5.2 GHz
Base Clock	4.7 GHz
L1 Cache	640 KB
L2 CACHE	8 MB
L3 Cache	96 MB
PCI Express® Version	PCIe® 5.0
CPU Socket	AM5
Processor Architecture	Zen 5
Default TDP	120W
PPT	162W
Native PCIe® Lanes (Total/Usable)	28 , 24
Max of Memory Channels	2
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 2.0 (480Mbps)	1
Max. Memory	256 GB
System Memory Type	DDR5
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5600 // 2x2R DDR5-5600 // 4x1R DDR5-3600 // 4x2R DDR5-3600
ECC Support	Yes (Requires mobo support)
Max Operating Temperature	95°C
Thermal Solution (PIB)	Not Included // Recommended Cooler: Liquid cooler recommended for optimal performance
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Graphics Model	AMD Radeon™ Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes
Multithreading (SMT)	Yes
Unlocked for Overclocking	Yes
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
Processor Technology for CPU Cores	TSMC 4nm FinFET
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
Package Die Count	2
Instruction Set	x86-64
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
Key Features	Supported Technologies: AMD EXPO™ Technology , AMD Ryzen™ Technologies
Resources	https://www.amd.com/en/products/processors/desktops/ryzen/9000-series/amd-ryzen-7-9800x3d.html

AMD Ryzen 7 9800X3D - 8 Cores, 16 Threads, Up to 5.2 GHz, AM5 Desktop Processor TRAY
