Brand	AMD

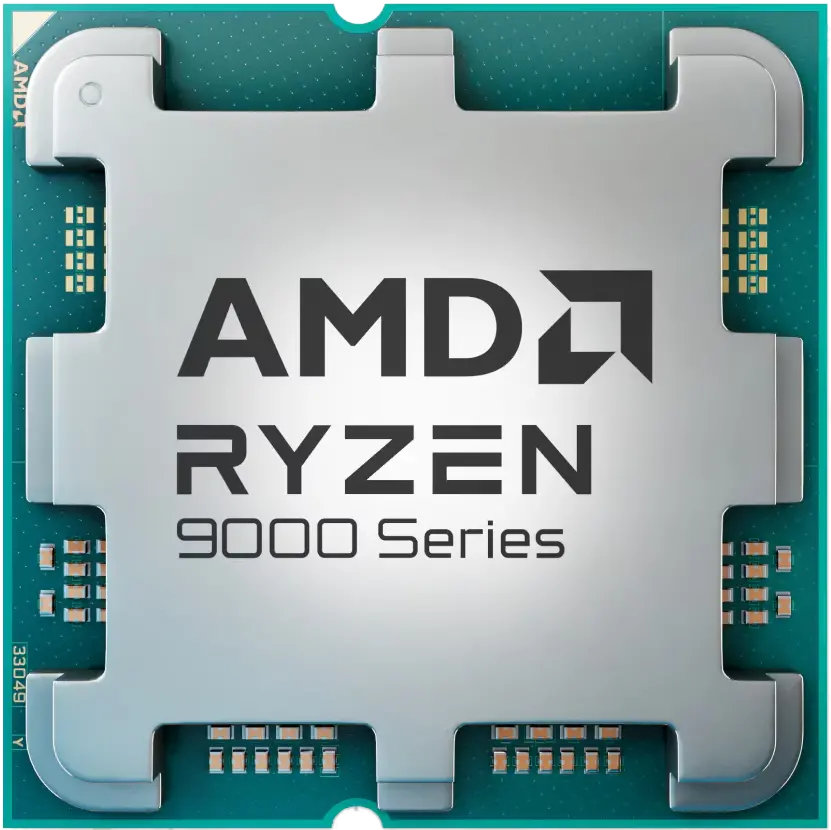

Model	AMD Ryzen™ 7 9850X3D Desktop Processor
Product Code	100-100001973WOF
Series	Ryzen 9000 Series
Processor Architecture	Zen 5
CPU Socket	AM5
PCI Express® Version	PCIe® 5.0
Total Cores	8
Total Threads	16
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 5.6GHz
Base Clock	4.7GHz
L1 Cache	640KB
L2 Cache	8MB
L3 Cache	96MB
Graphics Model	AMD Radeon™ Graphics
Graphics Core Count	2
Graphics Frequency	2200MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes
Max of Memory Channels	2
System Memory Subtype	UDIMM
Max Memory Size	256GB
System Memory Type	DDR5
Max Memory Speed	2x1R:DDR5-5600 // 2x2R: DDR5-5600 // 4x1R: DDR5-3600 // 4x2R: DDR5-3600
ECC Support	Yes (Requires mobo support)
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
Default TDP	120W
PPT	162W
Max Operating Temperature	95°C
Thermal Solution (PIB)	Not Included // Liquid cooler recommended for optimal performance
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
Processor Technology for CPU Cores	TSMC 4nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
Package Die Count	2
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 2.0 (480Mbps)	1
Native PCIe® Lanes (Total/Usable)	28, 24
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
Supported Technologies	AMD EXPO™ Technology , AMD Ryzen™ Technologies
OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

AMD Ryzen 7 9850X3D 8 Cores & 16 Threads CPU – 5.6GHz, Radeon Graphics, 5600 DDR5, PCIe 5.0, AM5
