Brand	AMD

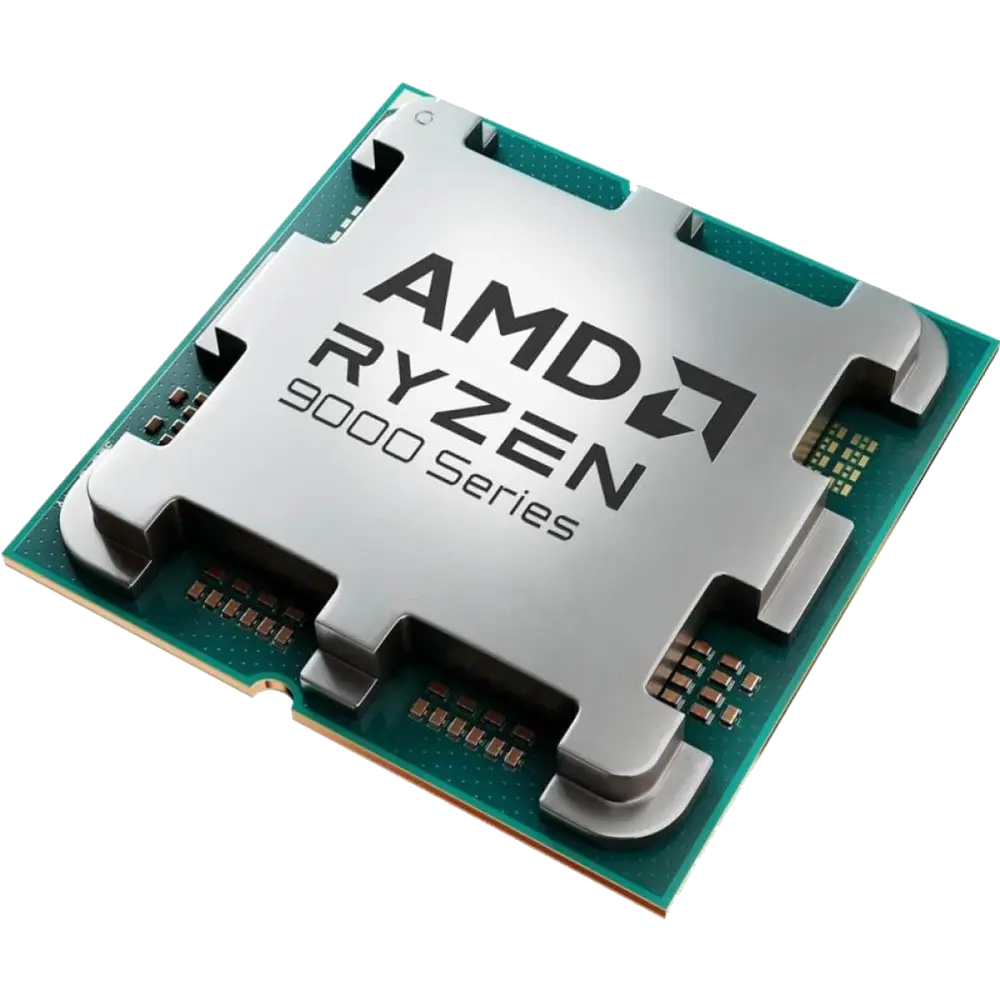

Model	AMD Ryzen™ 9 9950X
Product Number	100-000001277
Series	Ryzen 9000 Series
Processor Architecture	Zen 5
CPU Socket	AM5
PCI Express® Version	PCIe® 5.0
Total Cores	16
Total Threads	32
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 5.7GHz
Base Clock	4.3GHz
L1 Cache	1280KB
L2 Cache	16MB
L3 Cache	64MB
Graphics Model	AMD Radeon™ Graphics
Graphics Core Count	2
Graphics Frequency	2200MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes
Max of Memory Channels	2
System Memory Subtype	UDIMM
Max Memory Size	192GB
System Memory Type	DDR5
Max Memory Speed	2x1R:DDR5-5600 // 2x2R: DDR5-5600 // 4x1R: DDR5-3600 // 4x2R: DDR5-3600
ECC Support	Yes (Requires mobo support)
Default TDP	170W
PPT	230W
Max Operating Temperature	95°C
Thermal Solution (PIB)	Not Included // Liquid cooler recommended for optimal performance
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
Processor Technology for CPU Cores	TSMC 4nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
Package Die Count	3
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 2.0 (480Mbps)	1
Native PCIe® Lanes (Total/Usable)	28 , 24
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
Additional Usable PCIe Lanes from Motherboard	X870E: 8x Gen4 // X870: 4x Gen4 // X670E: 12x Gen4 // X670: 12x Gen4 // B650E: 8x Gen4 // B650: 8x Gen4
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
Supported Technologies	AMD EXPO™ Technology , AMD Ryzen™ Technologies
OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

AMD Ryzen 9 9950X 16 Cores & 32 Threads – 5.7GHz, 5600 DDR5, PCIe 5.0, AM5, Tray (With Build)
