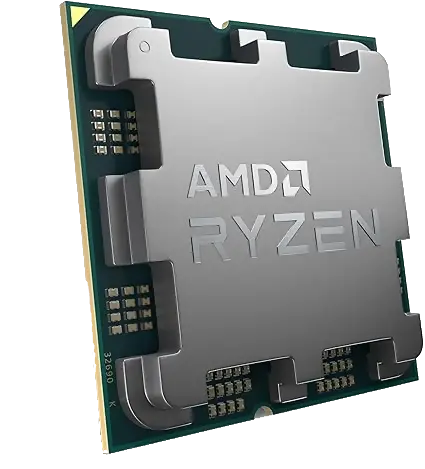

AMD Ryzen 9 9950X3D Desktop Processor:

The AMD Ryzen 9 9950X3D is designed for users who refuse to compromise between gaming and productivity. Powered by AMD's latest Zen 5 architecture and enhanced with second-generation 3D V-Cache technology, it delivers industry-leading gaming performance while maintaining the multi-threaded power needed for professional content creation, software compilation, virtualization, and demanding creative workflows. With support for the AM5 platform, DDR5 memory, and PCIe 5.0 storage and graphics, it provides a future-ready foundation for high-end desktop PCs.

Whether you're chasing the highest frame rates in competitive games, rendering complex 3D scenes, editing 8K video, compiling large software projects, or running AI models locally, the AMD Ryzen 9 9950X3D is engineered to excel. Its combination of Zen 5 architecture and second-generation 3D V-Cache technology delivers outstanding gaming performance while preserving exceptional multi-core productivity. Built for the AM5 platform, it also provides a long upgrade path with support for modern DDR5 memory and PCIe 5.0 devices.

Key Features:

16 Zen 5 CPU Cores & 32 Processing Threads
Up to 5.7GHz Boost Clock
4.3GHz Base Clock
Second-Generation AMD 3D V-Cache
128MB L3 & 16MB L2 Cache
AM5 Socket
PCIe 5.0 Support
DDR5 Memory Support
AMD EXPO Memory Overclocking
Precision Boost Overdrive
Curve Optimizer
Unlocked for Overclocking
Integrated AMD Radeon Graphics
TSMC 4nm Process

specs:

Product Collection	Ryzen 9000 Series
Processor Line	AMD Ryzen™ 9 9950X3D
Product Number	100-000000719
Total Cores	16
Total Threads	32
Max Turbo Frequency	Up to 5.7 GHz
Base Clock	4.3 GHz
L1 Cache	1280 KB
L2 CACHE	16 MB
L3 Cache	128 MB
PCI Express® Version	PCIe® 5.0
CPU Socket	AM5
Native PCIe® Lanes (Total/Usable)	28 , 24
Max of Memory Channels	2
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 2.0 (480Mbps)	1
Max. Memory	256 GB
System Memory Type	DDR5
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5600 // 2x2R DDR5-5600 // 4x1R DDR5-3600 // 4x2R DDR5-3600
ECC Support	Yes (Requires mobo support)
Thermal Solution (PIB)	Not Included // Recommended Cooler: Liquid cooler recommended for optimal performance
Supported Extensions	AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Default TDP	170W
PPT	230W
Max Operating Temperature	95°C
Graphics Capabilities	Graphics Model: AMD Radeon™ Graphics // Graphics Core Count: 2 // Graphics Frequency: 2200 MHz // USB Type-C® DisplayPort™ Alternate Mode
Multithreading (SMT)	Yes
Unlocked for Overclocking	Yes
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
Processor Technology for CPU Cores	TSMC 4nm FinFET
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
Package Die Count	1
Instruction Set	x86-64
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
Key Features	Supported Technologies: AMD EXPO™ Technology , AMD Ryzen™ Technologies
Resources	https://www.amd.com/en/products/processors/desktops/ryzen/9000-series/amd-ryzen-9-9950x3d.html
