CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. // 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory // Dual channel memory architecture // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz / * Support for DisplayPort 1.4 version and HDR. // - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz / * Support for HDMI 1.4 version
Audio	Realtek® Audio CODEC / High Definition Audio / 2/4/5.1/7.1-channel / Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 7 RTL8922AE // - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands // - BLUETOOTH 5.4 // - Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode / AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode / AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode // Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs / AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs / AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs / 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: / AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs / AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs / AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs // 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs // 4 x SATA 6Gb/s connectors / RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices / * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. / RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support // - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel // CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel // Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header // - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) // - 4 x USB 2.0/1.1 ports available through the internal USB headers /// Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector / 1 x 4-pin ATX 12V power connector / 1 x CPU fan header / 1 x CPU fan/water cooling pump header / 3 x system fan headers / 1 x system fan/water cooling pump header / 3 x addressable RGB Gen2 LED strip headers / 1 x RGB LED strip header / 3 x M.2 Socket 3 connectors / 4 x SATA 6Gb/s connectors / 1 x front panel header / 1 x front panel audio header / 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support / 1 x USB 3.2 Gen 1 header / 2 x USB 2.0/1.1 headers / 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) / 1 x HDMI port* / 1 x power button / 1 x reset button / 1 x reset jumper / 1 x Clear CMOS jumper
Back Panel Connectors	1 x DisplayPort* / 1 x Q-Flash Plus button / 4 x USB 2.0/1.1 ports / 1 x USB Type-C® port, with USB 3.2 Gen 2 support / 5 x USB 3.2 Gen 1 ports / 1 x RJ-45 port / 2 x USB 3.2 Gen 2 Type-A ports (red) / 2 x antenna connectors (2T2R) / 2 x audio jacks / 1 x optical S/PDIF Out connector
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection / Temperature detection / Fan speed detection / Water cooling flow rate detection / Fan fail warning / Fan speed control
BIOS	1 x 256 Mbit flash / Use of licensed AMI UEFI BIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) / Support for Q-Flash / Support for Q-Flash Plus / Support Smart Backup
Bundled Software	Norton® Internet Security (OEM version) / LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

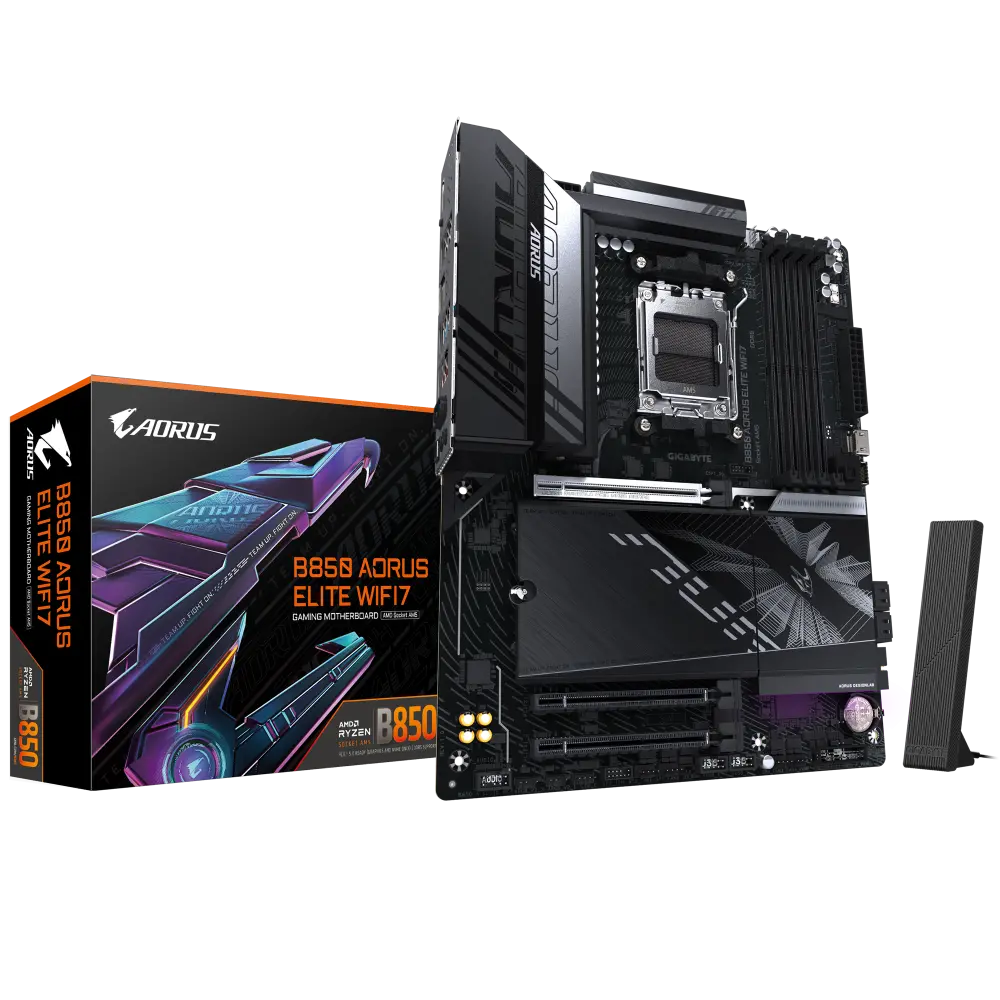

Gigabyte B850 AORUS ELITE WIFI7 AM5 ATX Motherboard
