🧠 CPU & Chipset

Socket: AMD AM5
Compatible CPUs: AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset: AMD X870

--------------------------------------------------------------------------------------------------------------------------------------------------------------

💾 Memory

Type: DDR5
Speeds Supported (OC): 8200 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6666 / 6600 / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s
Slots: 4 x DIMM
Capacity: Up to 256 GB (64 GB per DIMM)
Channel Support: Dual channel
Features: AMD EXPO™, Intel XMP, Non-ECC Unbuffered DIMM support

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🎮 Onboard Graphics

GPU: AMD Radeon™ Graphics (Integrated)
Ports:
2 x USB4® Type-C® (DisplayPort & USB4 support, up to 3840x2160 @240Hz)
1 x HDMI 2.1 (up to 4096x2160 @60Hz)
1 x Front HDMI (up to 1920x1080 @30Hz)
HDR & HDCP 2.3 supported

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🔊 Audio

Codec: Realtek® ALC1220
Channels: 2/4/5.1/7.1
Digital Audio: Optical S/PDIF Out supported

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🌐 Networking

LAN: Realtek® 2.5GbE
Wi-Fi:
MediaTek MT7925 or Realtek RTL8922AE
Wi-Fi 7 (2.4/5/6 GHz), IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth: 5.4

--------------------------------------------------------------------------------------------------------------------------------------------------------------

📦 Expansion Slots

CPU PCIe:
1 x PCIe x16 (Gen 5.0 or 4.0 depending on CPU)
Chipset PCIe:
1 x PCIe x16 (Gen 4.0, x4 mode)
1 x PCIe x16 (Gen 3.0, x4 mode)

--------------------------------------------------------------------------------------------------------------------------------------------------------------

💽 Storage Interfaces

M.2:
1 x M.2 (M2A_CPU) PCIe 5.0 x4/x2 (25110 to 2280)
2 x M.2 (M2B_CPU & M2C_CPU) PCIe 5.0 x4/x2 (22110/2280)
1 x M.2 (M2D_SB) PCIe 4.0 x4/x2 (22110/2280)
SATA:
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
Note: RAID 5 only on Ryzen™ 9000 Series

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🔌 USB Connectivity

Back Panel:
2 x USB4® Type-C®
1 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A (Red)
3 x USB 3.2 Gen 1
4 x USB 2.0
Internal Headers:
1 x USB 3.2 Gen 2x2 Type-C
4 x USB 2.0
4 x USB 3.2 Gen 1

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🧩 Internal I/O Connectors

24-pin ATX + 2 x 8-pin ATX 12V
1 x CPU fan / 1 x CPU pump
3 x System fan + 1 x Water pump header
RGB headers: 3 x ARGB Gen2, 1 x RGB
4 x M.2 + 4 x SATA
TPM header / Clear CMOS jumper / Reset & Power buttons
1 x HDMI (Internal)

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🔙 Back Panel Ports

1 x Q-Flash Plus button
4 x USB 2.0 / 4 x USB 3.2 Gen 1
1 x HDMI
2 x USB4® Type-C®
2 x USB 3.2 Gen 2 Type-A
1 x RJ-45
2 x Antenna connectors (WiFi)
2 x Audio jacks + 1 x Optical S/PDIF

--------------------------------------------------------------------------------------------------------------------------------------------------------------

🛠 Other Features

I/O Controller: iTE®
Monitoring: Voltage, Temp, Fan speed & water flow detection
BIOS: 256Mbit AMI UEFI, ACPI 5.0, Q-Flash & Q-Flash Plus
Software: GIGABYTE Control Center, Norton Internet Security (OEM), LAN manager
OS: Windows 11 64-bit
Form Factor: ATX (30.5cm x 24.4cm)

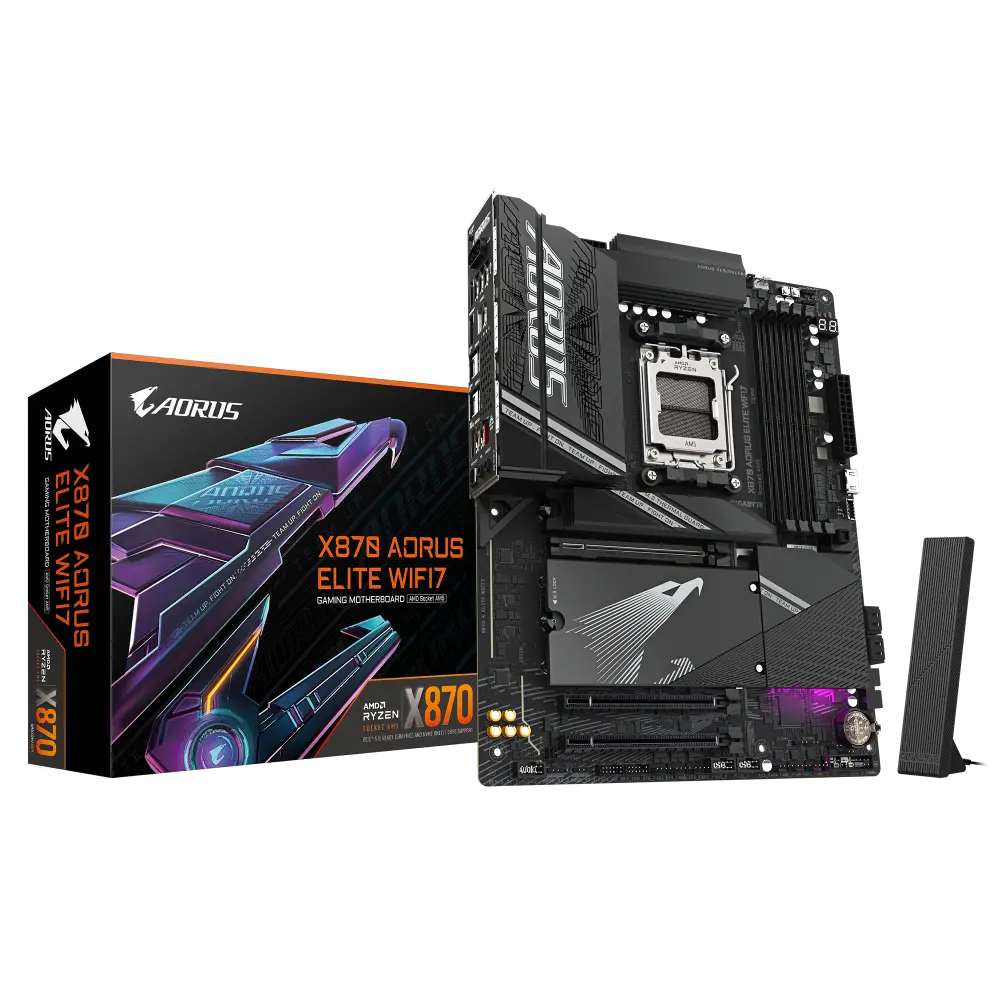

Gigabyte X870 Aorus Elite WIFI7 AM5 ATX Motherboard
