Compact 1080p & 1440p Next-Gen Gaming: ASUS Dual GeForce RTX 5060 8GB GDDR7 OC Edition:

The ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition ( 90YV0N12-M0NA00 / DUAL-RTX5060-O8G) delivers high-efficiency 1080p and 1440p gaming performance in a compact 228mm, 2.5-slot form factor. Powered by the NVIDIA Blackwell architecture with 3840 CUDA Cores and 8GB of high-speed GDDR7 VRAM running at 28 Gbps across a 128-bit interface, this factory-overclocked graphics card reaches boost clock speeds up to 2565 MHz in OC Mode (2535 MHz Default Boost). Built on a PCIe 5.0 bus interface, it provides full hardware acceleration for NVIDIA DLSS 4, real-time ray tracing, and up to 614 TOPS of AI performance for generative applications. Dual Axial-tech cooling fans running on dual ball bearings combined with a 0dB silent mode ensure quiet and reliable thermal management.

Key features:

Next-Gen GDDR7 Memory Architecture: Features 8GB of ultra-fast GDDR7 memory operating at 28 Gbps to handle modern high-resolution gaming textures and AI workloads effortlessly.
Compact 228mm Dual-Fan Design: At just 228mm in length and 2.5 slots thick, this GPU easily fits small form factor (SFF) and compact Mid-Tower PC cases.
Axial-Tech Fans & 0dB Mode: Dual ball bearing Axial-tech fans push direct airflow into the heatsink and come to a complete stop when GPU temperatures fall for zero noise during light tasks.
PCIe 5.0 & Modern Output Suite: Built on the ultra-fast PCIe 5.0 bus, featuring one HDMI 2.1b and three DisplayPort 2.1b outputs supporting up to 8K resolution across 4 displays.
Single 8-Pin Power Compatibility: Uses a single standard 8-pin PCIe power cable with a modest 550W PSU requirement, allowing simple plug-and-play installation without adapter dongles.

specs:

Model	DUAL-RTX5060-O8G
Product Number	90YV0N12-M0NA00
Graphic Engine	NVIDIA® GeForce RTX™ 5060
Bus Standard	PCI Express 5.0
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan	1.4
AI Performance	623 TOPs
Video Memory	8GB GDDR7
Engine Clock	OC mode: 2565MHz // Default mode: 2535MHz (Boost Clock)
CUDA Core	3840
Memory Speed	1750 MHz - 28 Gbps effective
Memory Interface	128bit
Memory Bandwidth	448.0GB/s
Tensor Compute Performance	FP16 (half): 19.18 TFLOPS (1:1) // FP32 (float): 19.18 TFLOPS // FP64 (double): 299.6 GFLOPS (1:64
Resolution	Digital Max Resolution 7680 x 4320
Interface	Yes x 1 (Native HDMI 2.1b) // Yes x 3 (Native DisplayPort 2.1b) // HDCP Support Yes (2.3)
NVlink/ Crossfire Support	No
Maximum Display Support	4
Recommended PSU	550W
Power Connectors	1 x 8-pin
Slot	2.5 slot
Software	ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
AURA SYNC	None
Accessories	1x Speedsetup Manual // 1x Thank You Card
PCB Form	ATX
Dimensions(WxHxL)	228 x 123 x 50mm
Weight	656g
Resources	https://www.asus.com/eg-en/motherboards-components/graphics-cards/dual/dual-rtx5060ti-o16g/techspec/

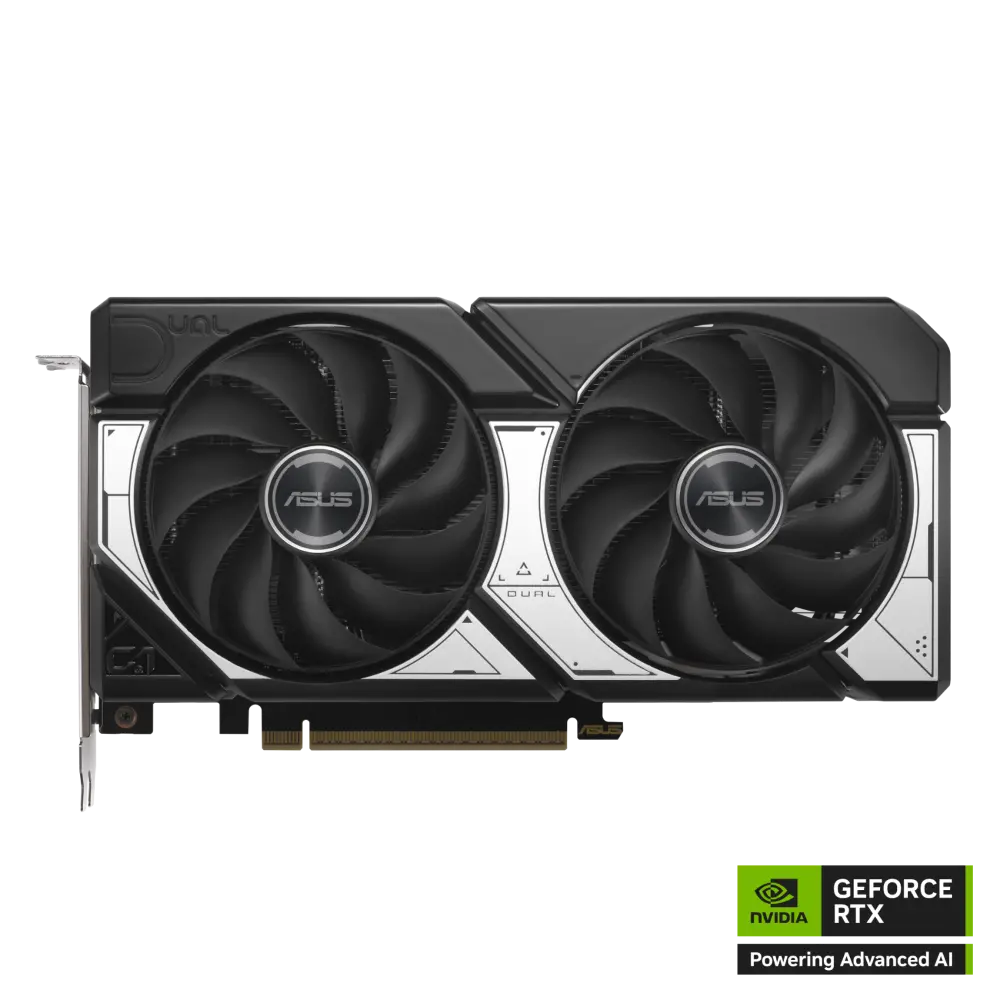

ASUS Dual GeForce RTX 5060 8GB GDDR7 OC Edition Graphics Card

Product Description
