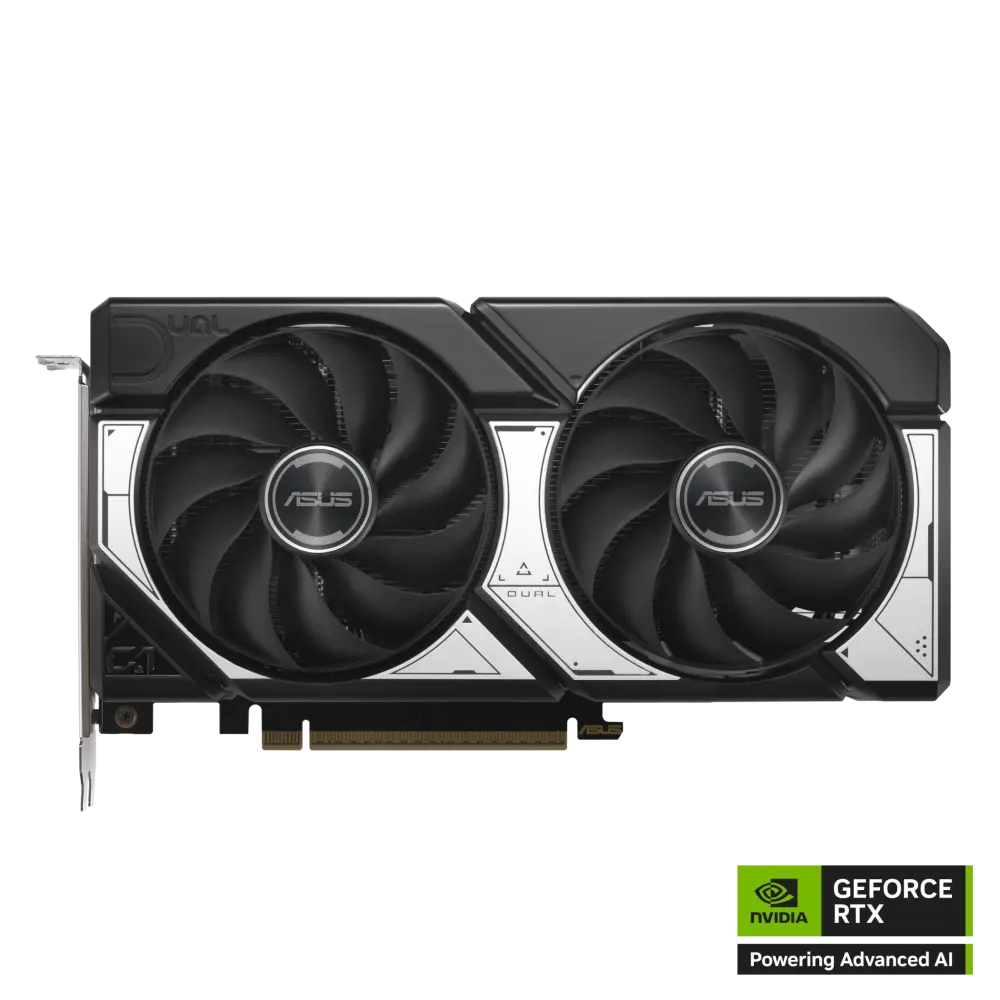

Compact Power & Next-Gen Ray Tracing: ASUS Dual GeForce RTX 5060 Ti 16GB GDDR7 OC Edition:

The ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition (90YV0MH0-M0NA00 / DUAL-RTX5060TI-O16G) delivers high-frame-rate 1440p and 1080p gaming performance in a space-saving 2.5-slot form factor. Driven by the NVIDIA Blackwell architecture with 4608 CUDA Cores and 16GB of high-speed GDDR7 VRAM operating at 28 Gbps, this factory-overclocked graphics card reaches boost clock speeds up to 2632 MHz in OC Mode. Built on a PCIe 5.0 bus interface, it provides full hardware acceleration for NVIDIA DLSS 4 Multi Frame Generation, full ray tracing with neural rendering, and up to 767 AI TOPS for generative AI workflows. Thermal management is powered by twin Axial-tech fans running on dual ball bearings, a vented protective backplate, 0dB silent cooling technology, and a hardware Dual BIOS switch for effortless performance tweaking.

Key features:

16GB High-Bandwidth GDDR7 VRAM: Ample high-speed video memory handles high-resolution texture packs, ray-traced workloads, and heavy video editing without memory bottlenecks.
Dual Axial-Tech Cooling & 0dB Mode: Twin Axial-tech fans feature smaller hubs for longer blades and a barrier ring to increase downward air pressure. The fans completely stop when GPU temperatures fall below 50°C for dead-silent operation.
Compact 2.5-Slot Form Factor: Designed for maximum compatibility with Small Form Factor (SFF) cases and standard Mid-Tower chassis without sacrificing thermal dissipation.
Hardware Dual BIOS Switch: Seamlessly toggle between "Performance Mode" for aggressive fan profiles and lower core temperatures or "Quiet Mode" for whisper-quiet gaming sessions.
Auto-Extreme Precision Manufacturing: Fully automated single-pass soldering process reduces thermal stress on components and eliminates harsh chemical cleaning for enhanced long-term component reliability.

specs:

Model	DUAL-RTX5060TI-O16G
Product Number	90YV0MH0-M0NA00
Graphic Engine	NVIDIA® GeForce RTX™ 5060 Ti
Bus Standard	PCI Express 5.0
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan	1.4
AI Performance	767 TOPs
Video Memory	16GB GDDR7
Engine Clock	OC mode: 2632MHz // Default mode: 2602MHz (Boost Clock)
CUDA Core	4608
Memory Speed	1750 MHz - 28 Gbps effective
Memory Interface	128bit
Memory Bandwidth	448.0GB/s
Tensor Compute Performance	FP16 (half): 23.98 TFLOPS (1:1) // FP32 (float): 23.98 TFLOPS // FP64 (double): 374.7 GFLOPS (1:64
Resolution	Digital Max Resolution 7680 x 4320
Interface	1x Native HDMI 2.1b // 3x Native DisplayPort 2.1b // HDCP Support (2.3)
NVlink/ Crossfire Support	No
Maximum Display Support	4
Recommended PSU	550W
Power Connectors	1x 8-pin
Slot	2.5 slot
Software	ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
AURA SYNC	None
Accessories	1x Speedsetup Manual // 1 x Thank You Card
PCB Form	ATX
Dimensions(WxHxL)	229x120x50mm
Weight	1.12 Kg
Resources	https://www.asus.com/eg-en/motherboards-components/graphics-cards/dual/dual-rtx5060ti-o16g/techspec/
