Feature-Rich Intel B760 mATX Motherboard with DDR4, Dual PCIe 4.0 M.2, 2.5Gb Ethernet & Corporate Stable Model Management:

The ASUS PRIME B760M-A D4-CSM (90MB1D00-M1EAYC) is a versatile Micro-ATX motherboard powered by the Intel B760 chipset and LGA 1700 socket, fully supporting 14th, 13th, and 12th Gen Intel® Core™ processors. Built for both high-performance custom desktop builds and commercial deployment, it features four DDR4 memory slots supporting up to 128GB (5333MHz OC), PCIe 4.0 x16 expansion, and dual PCIe 4.0 M.2 slots with dedicated thermal heatsinks. Equipped with Realtek 2.5Gb Ethernet, dual HDMI 2.1 ports, DisplayPort 1.4, and Aura Sync RGB headers, the motherboard delivers robust connectivity. As part of the ASUS Corporate Stable Model (CSM) program, it includes ASUS Control Center Express IT management software and guaranteed product lifecycle stability.

Key features:

Intel LGA 1700 Compatibility: Supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors with optimized power delivery.
Dual PCIe 4.0 M.2 Storage: Two M.2 slots support data-transfer speeds up to 64 Gbps via PCIe 4.0 x4, accelerating OS boot times and game load speeds.
Comprehensive Cooling System: Features large VRM heatsinks, an M.2 heatsink, and Fan Xpert 2+ software controls for efficient thermal dissipation under sustained workloads.
High-Speed 2.5Gb Ethernet Connectivity: Onboard Realtek 2.5 Gb LAN provides up to 2.5X bandwidth improvement over standard Gigabit Ethernet for lag-free gaming and fast file transfers.

specs:

Brand	ASUS
Model	ASUS PRIME B760M-A D4-CSM
Product Number	90MB1D00-M1EAYC
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® B760 Chipset
Memory	4x DIMM, Max. 128GB, DDR4
Memory Frequency	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Memory Features	Dual Channel Memory Architecture // Supports Intel® Extreme Memory Profile (XMP) // OptiMem II
Graphics	1x DisplayPort Supports max. 4K@60Hz as specified in DisplayPort 1.4 // 2x HDMI® ports Supports 4K@60Hz as specified in HDMI® 2.1
Expansion Slots	3x PCI-E x16 slot
Expansion Slots (CPU)	Intel® CoreTM Processors (14th & 13th & 12th Gen): 1x PCIe 4.0 x16 slot
Expansion Slots (Chipset)	Intel® B760 Chipset: 1x PCIe 4.0 x16 slot (supports x4 mode) \| 1x PCIe 4.0 x16 slot (supports x1 mode)
Storage	2x M.2 slots and 4x SATA 6Gb/s ports
Storage M.2 (CPU)	Intel® CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage M.2 (Chipset)	Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (SATA)	4x SATA 6Gb/s ports
RAID Support	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB (Rear)	Total 6 ports: 2x USB 3.2 Gen 2 ports (2x Type-A ) // 4x USB 2.0 ports (4x Type-A)
USB (Front)	Total 10 ports: 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports // 1x USB 3.2 Gen 1 connector (supports USB Type-C®) // 2x USB 2.0 headers support 4 additional USB 2.0 ports // 1x USB 2.0 header supports 1 additional USB 2.0 port
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking \| Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding // Premium audio capacitors // Dedicated audio PCB layers
Ethernet	Realtek 2.5Gb Ethernet
Internal I/O Connectors	Fan and Cooling related: 1 x 4-pin CPU Fan header \| 1 x 4-pin CPU OPT Fan header \| 2 x 4-pin Chassis Fan headers // Power related: 1 x 24-pin Main Power connector \| 1 x 8-pin +12V Power connector // Storage related: 2 x M.2 slots (Key M) \| 4 x SATA 6Gb/s ports // USB: 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports \| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) \| 2 x USB 2.0 headers support 4 additional USB 2.0 ports \| 1 x USB 2.0 header supports 1 additional USB 2.0 port // Miscellaneous: 3 x Addressable Gen 2 headers \| 1 x Aura RGB header \| 1 x Clear CMOS header \| 1 x COM Port header \| 1 x Front Panel Audio header (AAFP) \| 1 x LPT header \| 1 x S/PDIF Out header \| 1 x SPI TPM header (14-1pin) \| 1 x 20-3 pin System Panel header with Chassis intrude function
Back Panel I/O Ports	2 x USB 3.2 Gen 2 ports (2 x Type-A ) // 4 x USB 2.0 ports (4 x Type-A) // 1 x DisplayPort // 2 x HDMI® ports // 1 x Realtek 2.5Gb Ethernet port // 3 x Audio jacks // 1 x PS/2 Keyboard/Mouse combo port
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Special Features	ASUS 5X PROTECTION III: DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O // ASUS Q-Design: Q-DIMM - Q-LED Core - Q-Slot // ASUS Thermal Solution: M.2 heatsink - VRM heatsink design // ASUS EZ DIY: ProCool // Aura Sync: Aura RGB header - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate: Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving // AI Suite 3: Digi+ VRM - PC Cleaner // ASUS CPU-Z // Norton Deluxe (60 Days Free Trial) // WinRAR // UEFI BIOS: ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manageability	WOL by PME, PXE
Accessories	Cables: 2 x SATA 6Gb/s cables // Miscellaneous: 1 x I/O Shield \| 1 x M.2 Rubber Package \| 1 x Screw package for M.2 SSD // Documentation: 1 x ACC Express Activation Key Card \| 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor 24.4 x 24.4 cm
Resources	https://www.asus.com/eg-en/motherboards-components/motherboards/prime/prime-b760m-a-d4-csm/techspec/

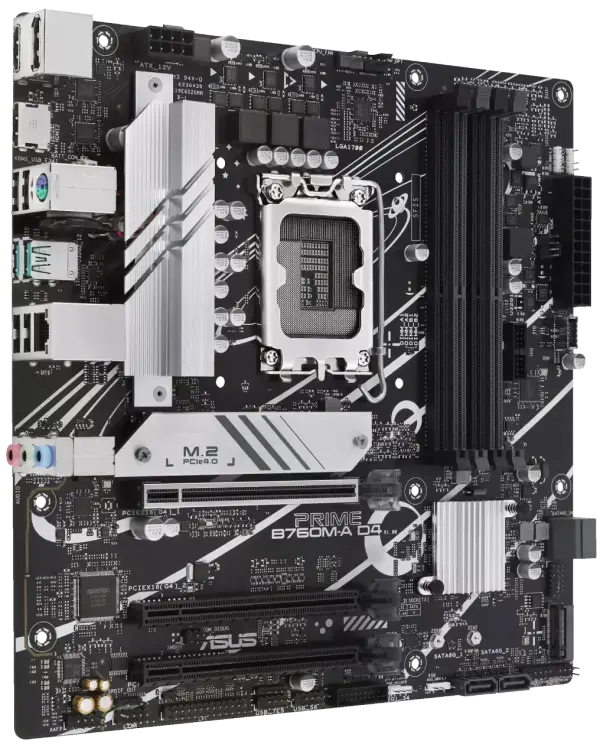

ASUS PRIME B760M-A D4-CSM LGA 1700 Micro-ATX Motherboard
