Essential Intel B760 mATX Motherboard with DDR4, Dual PCIe 4.0 M.2 & 2.5Gb Ethernet:

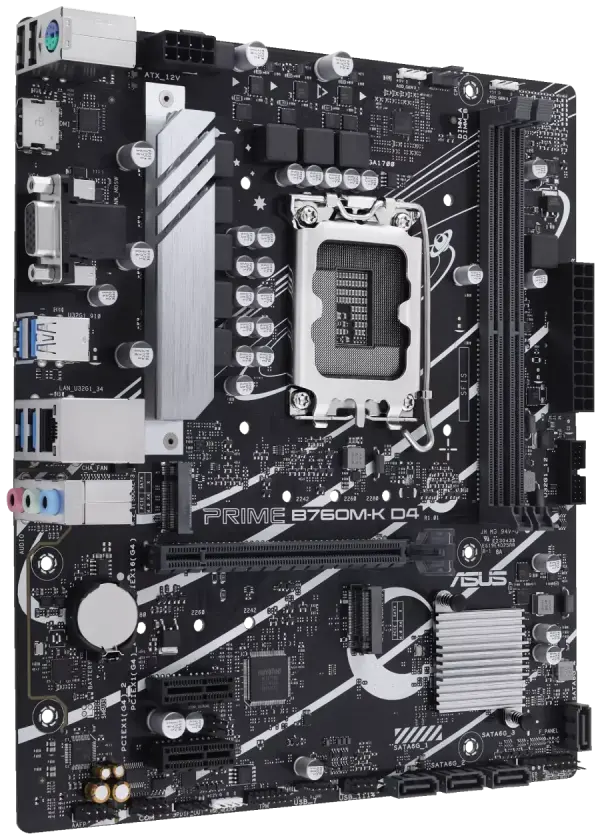

The ASUS PRIME B760M-K D4 (90MB1DS0-M1EAY0) is a compact Micro-ATX motherboard powered by the Intel B760 chipset and LGA 1700 socket, fully compatible with 14th, 13th, and 12th Gen Intel® Core™ processors. Built to deliver a reliable foundation for everyday productivity and budget gaming PCs, it features dual DDR4 memory slots supporting up to 64GB (5333MHz OC), PCIe 4.0 x16 expansion, and dual PCIe 4.0 M.2 slots for high-speed NVMe SSD storage. Equipped with Realtek 2.5Gb Ethernet, HDMI 2.1, VGA display outputs, and 8-pin ProCool power connectors, the PRIME B760M-K D4 provides robust power delivery, essential cooling, and high-speed network connectivity.

Key features:

Intel LGA 1700 Compatibility: Native support for 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors.
Dual PCIe 4.0 M.2 Storage: Two M.2 slots support data-transfer rates up to 64 Gbps via PCIe 4.0 x4, ensuring rapid OS boot times and application loading.
Realtek 2.5Gb Ethernet: Onboard 2.5 Gigabit LAN delivers faster data transfer speeds and smoother online gaming compared to standard 1Gb Ethernet.
Comprehensive Cooling Controls: Features a dedicated VRM heatsink alongside Fan Xpert 2+ software for intelligent fan management and thermal stability.
5X Protection III Safeguards: Multi-hardware safeguards including SafeSlot Core, LANGuard, Overvoltage Protection, and Stainless-Steel Back I/O for long-term durability.

specs:

Brand	ASUS
Model	ASUS PRIME B760M-K D4
Product Number	90MB1DS0-M1EAY0
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® B760 Chipset
Memory	2x DIMM, Max. 64GB, DDR4
Memory Frequency	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Memory Features	Dual Channel Memory Architecture // Supports Intel® Extreme Memory Profile (XMP)
Graphics	1x VGA port // 1x HDMI® port: Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots (CPU)	Intel® CoreTM Processors (14th & 13th & 12th Gen): 1x PCIe 4.0 x16 slot
Expansion Slots (Chipset)	Intel® B760 Chipset: 2x PCIe 4.0 x1 slots
Storage	2x M.2 slots and 4x SATA 6Gb/s ports
Storage M.2 (CPU)	Intel® CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage M.2 (Chipset)	Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (SATA)	4x SATA 6Gb/s ports
RAID Support	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB (Rear)	Total 6 ports: 4x USB 3.2 Gen 1 ports (4 x Type-A) \| 2x USB 2.0 ports (2 x Type-A）
USB (Front)	Total 5 ports: 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports \| 2x USB 2.0 headers support 3 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking \| Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding // Premium audio capacitors // Dedicated audio PCB layers
Ethernet	Realtek 2.5Gb Ethernet
Internal I/O Connectors	Fan and Cooling related: 1 x 4-pin CPU Fan header \| 1 x 4-pin Chassis Fan header // Power related: 1 x 24-pin Main Power connector \| 1 x 8-pin +12V Power connector // Storage related: 2 x M.2 slots (Key M) \| 4 x SATA 6Gb/s ports // USB: 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports \| 2 x USB 2.0 headers support 3 additional USB 2.0 ports // Miscellaneous: 2 x Addressable Gen 2 headers \| 1 x Aura RGB header \| 1 x Clear CMOS header \| 1 x COM Port header \| 1 x Front Panel Audio header (AAFP) \| 1 x S/PDIF Out header \| 1 x Speaker header \| 1 x SPI TPM header (14-1pin) \| 1 x 10-1 pin System Panel header
Back Panel I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A) // 2 x USB 2.0 ports (2 x Type-A) // 1 x VGA port // 1 x HDMI® port // 1 x Realtek 2.5Gb Ethernet port // 3 x Audio jacks // 1 x PS/2 Keyboard/Mouse combo port
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Special Features	ASUS 5X PROTECTION III: DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O // ASUS Q-Design: Q-DIMM - Q-LED Core - Q-Slot // ASUS EZ DIY: ProCool // ASUS Thermal Solution: VRM heatsink design // Aura Sync: Aura RGB header - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate: Aura Sync - Fan Xpert - Power Saving // AI Suite 3: Digi+ VRM - PC Cleaner // ASUS CPU-Z // Norton Deluxe (60 Days Free Trial) // WinRAR // UEFI BIOS: ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manageability	WOL by PME, PXE
Accessories	Cables: 2 x SATA 6Gb/s cables // Miscellaneous: 1 x I/O Shield \| 2 x M.2 anchors // Documentation: 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor 24.4 x 21.1 cm
Resources	https://www.asus.com/eg-en/motherboards-components/motherboards/prime/prime-b760m-k-d4/techspec/

ASUS PRIME B760M-K D4 LGA 1700 Micro-ATX Motherboard
