CPU	Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors* / Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** / * Refer to www.asus.com for CPU support list. / ** Intel® Turbo Boost Max Technology 3.0 / support depends on the CPU types.
Chipset	Intel® B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor / 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Ethernet	1 x Realtek 2.5Gb Ethernet
Memory	2 x DIMM slots, Max. 96GB, DDR5 / 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* / Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) / * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x VGA port / 1 x HDMITM port/* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. / Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots	Intel® CoreTM Processors (14th & 13th & 12th Gen) / 1 x PCIe 4.0 x16 slot / Intel® B760 Chipset / 2 x PCIe 4.0 x1 slots / - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* / Intel® CoreTM Processors (14th & 13th & 12th Gen) / M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / Intel® B760 Chipset / M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / 4 x SATA 6Gb/s ports / * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB	Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) / 2 x USB 2.0 ports (2 x Type-A) / Front USB (Total 5 ports): 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports / 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* / - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking / - Supports up to 24-Bit/192 kHz playback / Audio Features: - Audio Shielding / - Premium audio capacitors / - Dedicated audio PCB layers / * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) / 2 x USB 2.0 ports (2 x Type-A) / 1 x VGA port / 1 x HDMITM port / 1 x Realtek 2.5Gb Ethernet port / 3 x Audio jacks / 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related: 1 x 4-pin CPU Fan header / 2 x 4-pin Chassis Fan headers / Power related: 1 x 24-pin Main Power connector / 1 x 8-pin +12V Power connector / Storage related: 2 x M.2 slots (Key M) / 4 x SATA 6Gb/s ports / USB: 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports / 2 x USB 2.0 headers support 3 additional USB 2.0 ports / Miscellaneous: 2 x Addressable Gen 2 headers / 1 x Aura RGB header / 1 x Clear CMOS header / 1 x COM Port header / 1 x Front Panel Audio header (AAFP) /1 x S/PDIF Out header / 1 x Speaker header / 1 x SPI TPM header (14-1pin) / 1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III: - DIGI+ VRM / - LANGuard / - Overvoltage Protection / - SafeSlot Core / - Stainless-Steel Back I/O / ASUS Q-Design: - Q-DIMM / - Q-LED Core / - Q-Slot / ASUS EZ DIY : - ProCool / ASUS Thermal Solution: - VRM heatsink design / Aura Sync: - Aura RGB header / - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate / - Aura Sync / - Fan Xpert 2+ / - Power Saving / - Two-Way AI Noise Cancellation / AI Suite 3 / - DIGI+ VRM / - PC Cleaner / ASUS CPU-Z / Norton 360 Deluxe (60 Days Free Trial) / WinRAR / UEFI BIOS: ASUS EZ DIY / - ASUS CrashFree BIOS 3 / - ASUS EZ Flash 3 / - ASUS UEFI BIOS EZ Mode
Accessories	Cables: 2 x SATA 6Gb/s cables / Miscellaneous: 1 x I/O Shield / 2 x M.2 anchors / Documentation: 1 x User guide

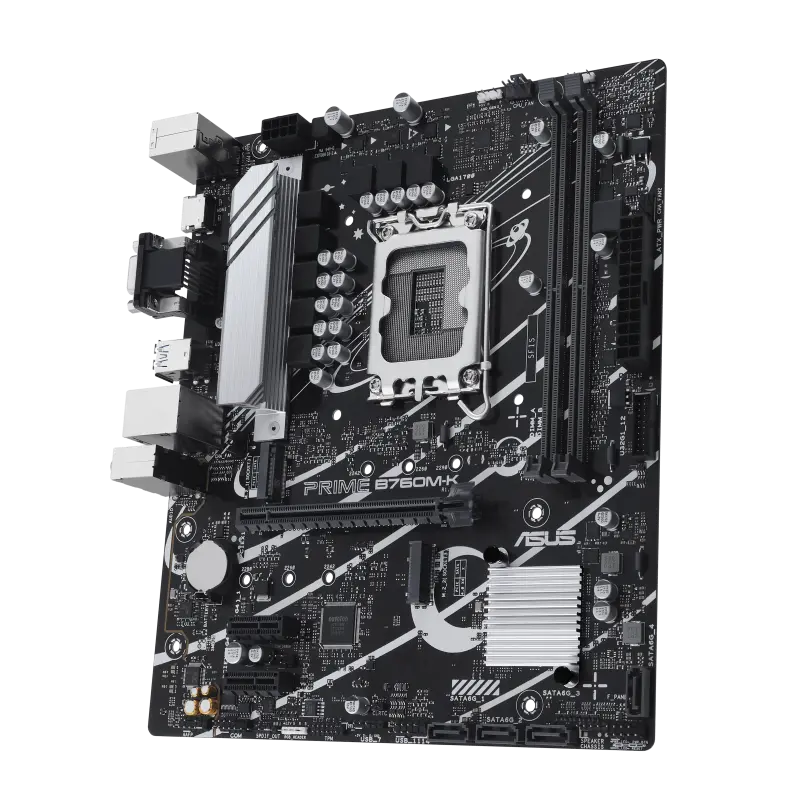

ASUS Prime B760M-K DDR5 Micro-ATX Motherboard – LGA 1700, PCIe 4.0, M.2 Slot, USB 3.2

Product Description
