Model:	PRIME B860-PLUS WIFI
Product Number:	90MB1K50-M0EAY0
CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® B860 Chipset
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Manageability	WOL by PME, PXE
Memory	4 x DIMM slots, max. 256GB, DDR5 // Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* // Dual channel memory architecture // DIMM Fit // Supports Intel® Extreme Memory Profile (XMP) memory module // ASUS Enhanced Memory Profile III (AEMP III)
Expansion Slots	Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) // Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) - 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
Graphics	1 x DisplayPort 1.4: Supports up to 4K@60Hz // 1 x HDMI 2.1: Supports up to 4K@60Hz
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports // Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) // Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports // Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB	Rear USB (Total 8 ports): 1 x USB 20Gbps port (1 x USB Type-C®) - 2 x USB 10Gbps ports (2 x Type-A) - 1 x USB 5Gbps port (1 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) // Front USB (Total 5 ports): 1 x USB 5Gbps port (1 x USB Type-C®) - 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) // 2 x USB 10Gbps ports (2 x Type-A) // 1 x USB 5Gbps port (1 x Type-A) // 4 x USB 2.0 ports (4 x Type-A) // 1 x DisplayPort // 1 x HDMI™ port // 1 x Wi-Fi module // 1 x Realtek 2.5Gb Ethernet port // 3 x Audio jacks
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback // Audio Features: Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers // A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Accessories	Cables: 2 x SATA 6Gb/s cables // Miscellaneous: 1 x ASUS WiFi Q-Antenna - 1 x M.2 rubber package - 1 x Screw package for M.2 SSD // Documentation: 1 x Quick start guide
Internal I/O Connectors	Fan and Cooling related: 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 4 x 4-pin Chassis Fan headers // Power related: 1 x 24-pin Main Power connector - 1 x 8-pin +12V CPU Power connector // Storage related: 2 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports // USB: 1 x USB 5Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports // Miscellaneous: 3 x Addressable Gen 2 headers - 1 x Aura RGB header - 1 x Clear CMOS header - 1 x Chassis Intrusion header - 1 x COM Port header - 1 x Front Panel Audio header (F_AUDIO) - 1 x S/PDIF Out header - 1 x SPI TPM header (14-1pin) - 1 x 10-1 pin Front System Panel header - 1 x Thunderbolt™ (USB4®) header
Special Features	ASUS 5X PROTECTION III: DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O // ASUS Q-Design: Q-Antenna - Q-Dashboard - Q DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot // ASUS Thermal Solution: M.2 heatsink - VRM heatsink design // ASUS EZ DIY: ProCool - Pre-mounted I/O shield // Aura Sync: Aura RGB header - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate: Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving // ASUS AI Advisor // ASUS DriverHub // ASUS GlideX // ASUS CPU-Z // Adobe Creative Cloud (Free Trial)// Norton 360 Deluxe (60 Days Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS: ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Ethernet	1 x Realtek 2.5Gb Ethernet // ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later// Bluetooth® v5.3: The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

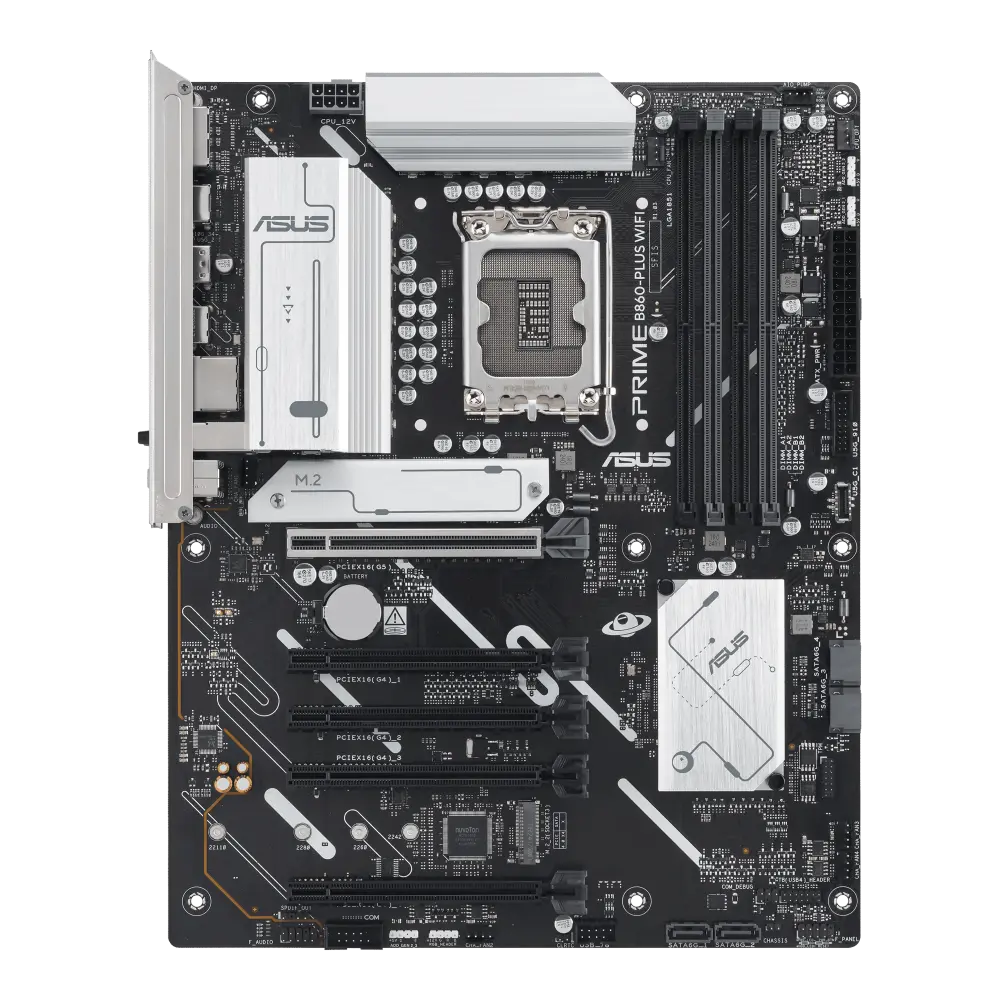

ASUS PRIME B860-PLUS WIFI ATX Motherboard – Intel LGA1851, DDR5, PCIe 5.0, Wi-Fi 6
