*Model*	*PRIME X870-P WIFI*
*Product Number*	*90MB1IS0-M0EAY0*
*CPU*	*AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
*Chipset*	*AMD X870 Chipset*
*BIOS*	*256 Mb Flash ROM, UEFI AMI BIOS*
*Memory*	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors // ECC and Non-ECC, Un-buffered DIMM // Dual channel memory architecture // Supports AMD Extended Profiles for Overclocking (EXPO™) // ASUS Enhanced Memory Profile (AEMP)
*Graphics*	*1 x HDMI™ port // 2 x USB4® (40Gbps) ports support USB Type-C® display output*
*Expansion Slots*	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) // AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) // AMD X870 Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode)
*Storage*	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports: AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) // AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) // AMD X870 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode) // 2 x SATA 6Gb/s ports
*USB*	Rear USB (Total 10 ports): 2 x USB4® (40Gbps) ports (2 x USB Type-C®) - 1 x USB 10Gbps port (1 x Type-A) - 3 x USB 5Gbps ports (3 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) // Front USB (Total 7 ports): 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports
*Audio*	Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback // Audio Features: Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
*Ethernet*	*1 x Realtek 2.5Gb Ethernet // ASUS LANGuard*
*Wireless & Bluetooth*	*Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band -Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. // Bluetooth® v5.4*
*Internal I/O Connectors*	Fan and Cooling Related: 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 4 x 4-pin Chassis Fan headers // Power Related: 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors // Storage Related: 4 x M.2 slots (Key M) - 2 x SATA 6Gb/s ports // USB: 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports // Miscellaneous: 3 x Addressable Gen 2 headers - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (F_AUDIO) - 1 x S/PDIF Out header - 1 x SPI TPM header (14-1 pin) - 1 x 10-1 pin System Panel header
*Back Panel I/O Ports*	2 x USB4® (40Gbps) ports (2 x USB Type-C®) // 1 x USB 10Gbps port (1 x Type-A) // 3 x USB 5Gbps ports (3 x Type-A) // 4 x USB 2.0 ports (4 x Type-A) // 1 x HDMI™ port // 1 x Wi-Fi module // 1 x Realtek 2.5Gb Ethernet port // 3 x Audio jacks // 1 x BIOS FlashBack™ button
*Features*	ASUS 5X PROTECTION III: DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O // ASUS Q-Design: M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot // ASUS Thermal Solution: Flexible M.2 heatsink - VRM heatsink design // ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot // Aura Sync - Addressable Gen 2 headers
*Software Features*	ASUS Exclusive Software: Armoury Crate: Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving // ASUS DriverHub // ASUS GlideX // TurboV Core // ASUS CPU-Z // Norton 360 Deluxe (60 Days Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS // ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
*Accessories*	*Cables: 2 x SATA 6Gb/s cables // Miscellaneous: 1 x ASUS WiFi Q-Antenna - 1 x M.2 rubber package - 2 x Screw packages for M.2 SSD / Documentation // 1 x Quick start guide*
*Manageability*	*WOL by PME, PXE*
*Operating System*	*Windows 11*
*Form Factor*	*ATX Form Factor 12 inch x 9.6 inch (30.5cmx24.4cm)*

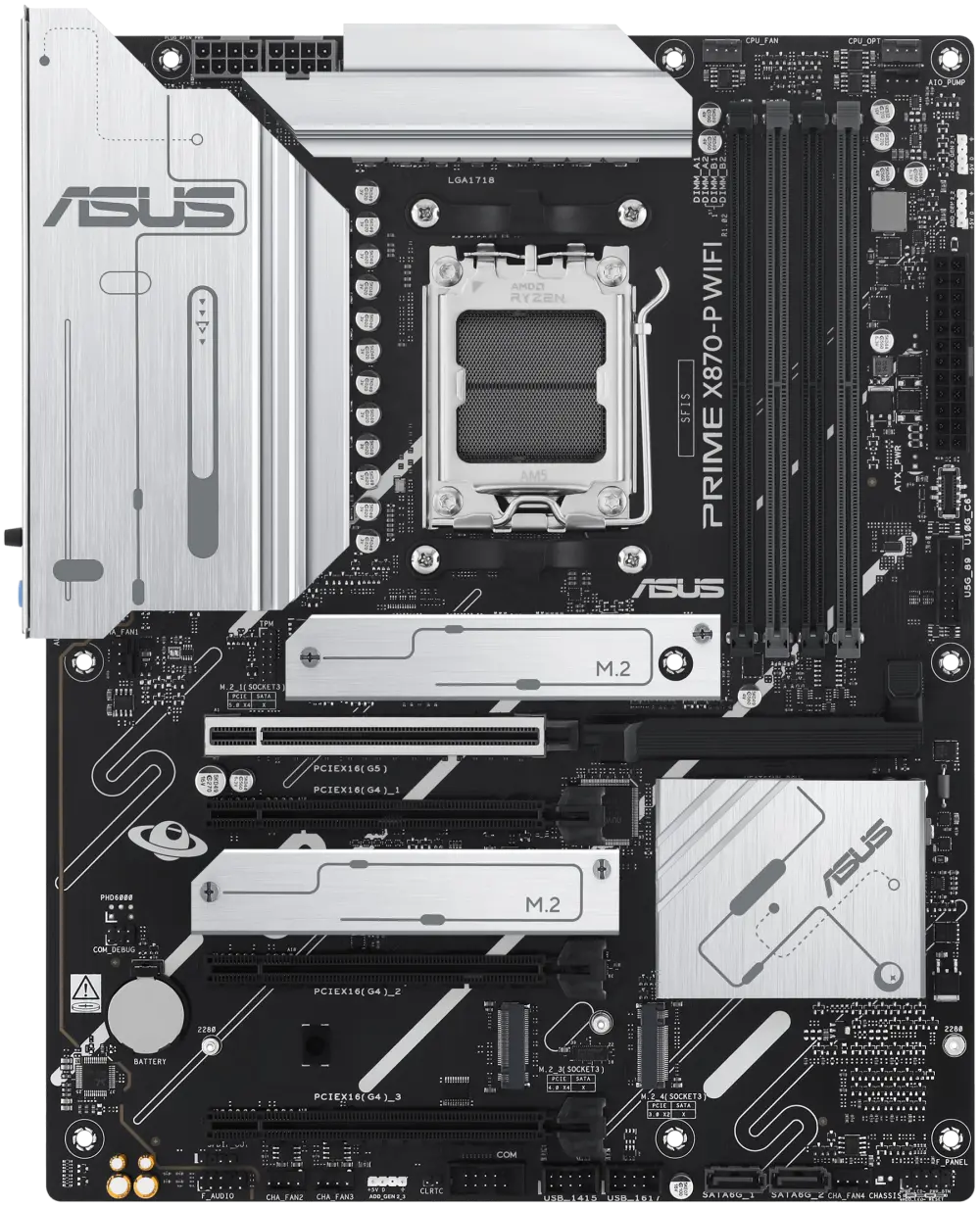

ASUS PRIME X870-P WIFI AM5 ATX Motherboard

Product Description
