Next-Gen Foundation: Unlocked Intel Power Meets Sleek Silver Aesthetics

Lay the groundwork for an elite, future-proof desktop rig with the ASUS Prime Z790-P WIFI. Engineered to extract maximum performance from Intel® Core™ 12th, 13th, and 14th Generation processors, this ATX powerhouse (90MB1CJ0-M1EAY0) features a robust 14+1 DrMOS power stage design to maintain absolute electrical stability under heavy overclocking conditions. Adorned with striking silver-and-white heatsinks, it seamlessly anchors both high-tier workstations and clean, minimalist gaming builds.

Speed defines every square inch of this board. It breaks past standard memory bottlenecks by fully supporting high-frequency DDR5 RAM speeds up to 7200+ MHz (OC) via ASUS AEMP II optimization profiles. Expansion is completely future-proofed with a primary PCIe 5.0 x16 safe-slot for next-generation graphics cards, alongside three M.2 PCIe 4.0 slots hidden beneath dedicated thermal armor to protect your NVMe SSDs from heat throttling. Completed with ultra-fast 2.5Gb Ethernet, integrated WiFi 6, and an onboard Thunderbolt™ 4 header for creators, this motherboard provides premium, unrestricted data bandwidth. Secure your system foundation today with local warranty backing at Delta-Computer.net.

Specs:

Brand	ASUS
Model	ASUS PRIME Z790-P WIFI
Product Number	9MB1CJ0-M1EAY0
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.
Chipset	Intel® Z790 Chipset
Memory	4x DIMM, Max. 192GB, DDR5
Memory Frequency	7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Memory Features	Dual Channel Memory Architecture // Supports Intel® Extreme Memory Profile (XMP) // OptiMem II
Graphics	1x DisplayPort: Supports max. 4K@60Hz as specified in DisplayPort 1.4 // 1x HDMI® port: Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots (CPU)	Intel® Core™ Processors (14th & 13th & 12th Gen): 1x PCIe 5.0 x16 slot
Expansion Slots (Chipset)	Intel® Z790 Chipset: 3x PCIe 4.0 x16 slots (support x4 mode) // 1x PCIe 3.0 x1 slot
Storage	Total supports 3x M.2 slots // 4x SATA 6Gb/s ports
Storage (CPU)	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Storage (Chipset)	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) // M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) // 4x SATA 6Gb/s ports
RAID Support	Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
USB (Rear)	Total 8 ports: 1x USB 3.2 Gen 2x2 port (1x USB Type-C®) // 1x USB 3.2 Gen 2 port (1x Type-A) // 2x USB 3.2 Gen 1 ports (2x Type-A) // 4x USB 2.0 ports (4x Type-A)
USB (Front)	Total 9 ports: 1x USB 3.2 Gen 2 connector (supports USB Type-C®) // 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports // 2x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC: Supports jack-detection, Multi-streaming, Front Panel Jack-retasking // Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding // Premium audio capacitors // Dedicated audio PCB layers
Ethernet	1x Realtek 2.5Gb Ethernet
WIFI & Bluetooth	Wi-Fi 6: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band // Bluetooth® v5.2
Internal I/O Connectors	Fan and Cooling related: 1x 4-pin CPU Fan header - 1x 4-pin CPU OPT Fan header - 1x 4-pin AIO Pump header - 3x 4-pin Chassis Fan headers // Power related: 1x 24-pin Main Power connector - 1x 8-pin +12V Power connector - 1x 4-pin +12V Power connector // Storage related: 3x M.2 slots (Key M) - 4x SATA 6Gb/s ports // USB: 1x USB 3.2 Gen 2 connector (supports USB Type-C®) - 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports - 2x USB 2.0 headers support 4 additional USB 2.0 ports // Miscellaneous: 3x Addressable Gen 2 headers - 2x Aura RGB headers - 1x Clear CMOS header - 1x COM Port header - 1x Front Panel Audio header (AAFP) - 1x S/PDIF Out header - 1x SPI TPM header (14-1pin) - 1x 20-5pin System Panel header - 1x Thunderbolt™ (USB4®) Header
Back Panel I/O Ports	1x USB 3.2 Gen 2x2 port (1x USB Type-C®) // 1x USB 3.2 Gen 2 port (1x Type-A) // 2x USB 3.2 Gen 1 ports (2x Type-A) // 4x USB 2.0 ports (4x Type-A) // 1x DisplayPort // 1x HDMI® port // 1x Wi-Fi Module // 1x Realtek 2.5Gb Ethernet port // 3x Audio jacks // 1x PS/2 Keyboard/Mouse combo port
Features	ASUS 5X PROTECTION III: DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O // ASUS Q-Design: Q-DIMM - Q-Slot - Q-LED Core // ASUS Thermal Solution: Flexible M.2 heatsink - VRM heatsink design // ASUS EZ DIY: ProCool // Aura Sync: Aura RGB headers - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate: Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving // AI Suite 3: TurboV EVO - PC Cleaner - DIGI+ VRM // ASUS CPU-Z // MyASUS // Norton 360 Deluxe (60 Days Free Trial) // WinRAR // UEFI BIOS // ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manageability	WOL by PME, PXE
Operating System	Windows® 11, Windows® 10 64-bit
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Accessories	Cables: 2x SATA 6Gb/s cables // Miscellaneous: 1x ASUS Wi-Fi moving antennas - 1x I/O Shield - 1x M.2 Rubber Package - 2x Screw packages for M.2 SSD // Documentation: 1x User guide
Form Factor	ATX Form Factor 30.5x23.4cm

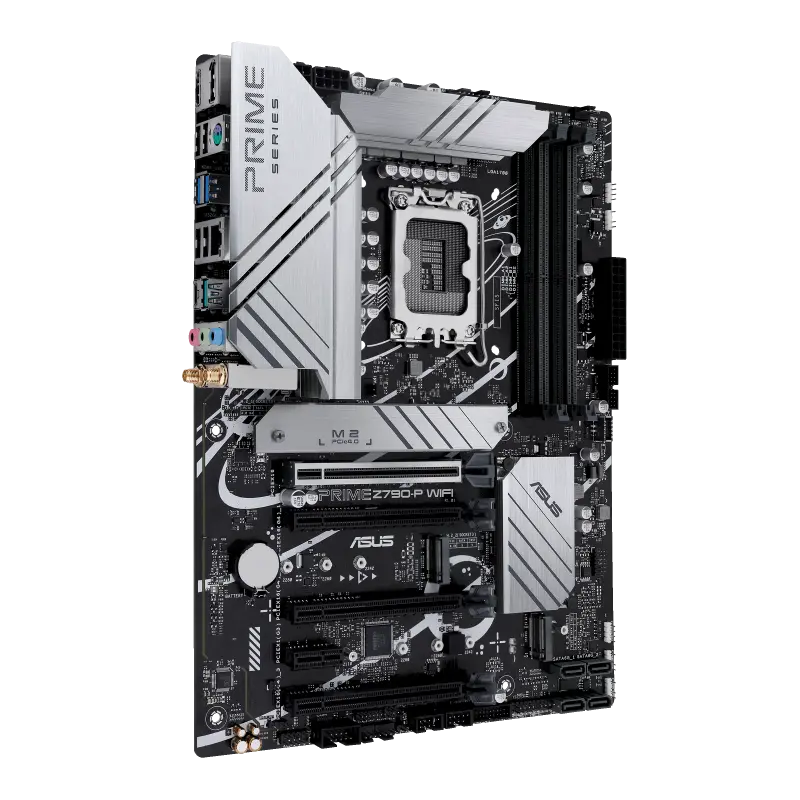

ASUS Prime Z790-P WIFI LGA1700 ATX Motherboard
