*Model & Product Number*	*ROG CROSSHAIR X870E HERO (90MB1IE0-M0EAY0)*
*CPU Support*	*AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5)*
*Chipset*	*AMD X870E*
*BIOS*	*256Mb Flash ROM, UEFI AMI BIOS*
*Operating System*	*Windows 11*
*Form Factor*	*ATX 30.5x24.4cm*
*Manageability*	*WOL by PME, PXE*
*Memory - DIMM Slots*	*4× DDR5 DIMM slots*
*Memory - Max Capacity*	*Up to 256GB*
*Memory - Speed Support*	*8200+MT/s (Ryzen 9000), 8600+MT/s (Ryzen 8000), 8000+MT/s (Ryzen 7000)*
*Memory - Type*	*ECC & Non-ECC Un-buffered, Dual-channel*
*Memory - Technologies*	*NitroPath DRAM, AEMP, AMD EXPO*
*Expansion Slots*	*2× PCIe 5.0 x16 (Ryzen 9000/7000), 2× PCIe 4.0 x16 (Ryzen 8000)*
*Graphics Output*	*1× HDMI 2.1, 2× USB4® Type-C (DisplayPort 1.4a, 4K@60Hz)*
*Storage - M.2*	*5× M.2 (PCIe 5.0/4.0), depending on CPU*
*Storage - SATA & SlimSAS*	*4× SATA 6Gb/s, 1× SlimSAS (PCIe 4.0 x4)*
*Storage - RAID Support*	*RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000)*
*USB - Rear Ports*	*2× USB4 Type-C (40Gbps), 8× USB 10Gbps (6× Type-A, 2× Type-C)*
*USB - Front Ports*	*1× USB 20Gbps Type-C (60W), 1× USB 20Gbps header, 4× USB 3.2 Gen1, 4× USB 2.0*
*USB - Power Delivery*	*5V/3A and up to 20V max 3A, PPS: 3.3–21V max 3A*
*Back Panel I/O*	*USB, HDMI, 2.5GbE + 5GbE LAN, S/PDIF, Buttons (BIOS FlashBack™, CMOS)*
*Audio*	*ROG SupremeFX ALC4082, ESS QUAD DAC, 32-bit/384kHz, Optical Out*
*Accessories*	*WiFi Q-Antenna, Q-Connector, SATA, M.2 Q-Kits, USB Drive, Bottle Opener*
*Internal I/O - Cooling*	*CPU Fan, CPU OPT, AIO, 4× Chassis Fan, W_PUMP+*
*Internal I/O - Power*	*24-pin ATX, 2 × 8-pin CPU, 1 × PCIe*
*Internal I/O - Storage*	*5× M.2, 1× SlimSAS, 4× SATA*
*Internal I/O - USB*	*2× USB 20Gbps, 4× USB 3.2 Gen1, 4× USB 2.0*
*Internal I/O - Misc*	*ARGB headers, Q-Buttons, Thermal Sensor, Front Audio*
*Special Features - OC & Power*	*FlexKey, LN2 Mode, ReTry, Start Button, Digi+ Engine*
*Special Features - Design & Cooling*	*Q-Design (Q-Code, Q-LED, Q-Latch), Heatsinks, Metal Backplate*
*Special Features - Lighting & Charging*	*Aura Sync, 60W USB QC4+, USB Wattage Watcher*
*Software Features*	*ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert, AI OC, AURA, BIOS Tools*
*Ethernet*	*Intel® 2.5Gb + Realtek 5Gb Ethernet, LANGuard*
*Wireless & Bluetooth*	*Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 6.5Gbps), Bluetooth 5.4*

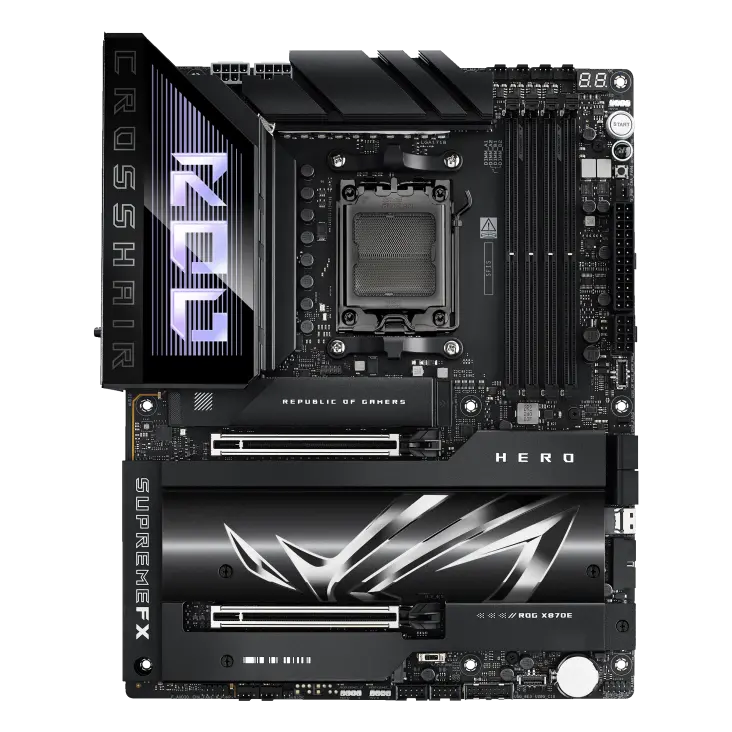

ASUS ROG Crosshair X870E Hero AM5 ATX Motherboard

Product Description
