*Model:*	*ROG MAXIMUS Z890 HERO*
*Product Number:*	*90MB1ID0-M0EAY0*
*CPU*	*Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
*Chipset*	*Intel® Z890 Chipset*
*BIOS*	*256 Mb Flash ROM, UEFI AMI BIOS*
*Operating System*	*Windows® 11 (22H2 & later)*
*Manageability*	*WOL by PME*
*Memory*	4x DIMM slots, max. 256GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) // Dual channel memory architecture // Supports Intel® Extreme Memory Profile (XMP) memory module // DIMM FIT // ASUS Enhanced Memory Profile III (AEMP III)
*Supports DIMM Flex*	*Yes*
*NitroPath DRAM Technology*	*Yes*
*Expansion Slots*	Intel® Core™ Ultra Processors (Series 2): 1x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) // Intel® Z890 Chipset: 1x PCIe 4.0 x16 slot (supports x4 mode) - 1x PCIe 4.0 x1 slot // When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
*Graphics*	1x HDMI™ port: Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. // 2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs - In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. // In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
*Storage*	Supports up to 6x M.2 slots and 1x SlimSAS connector and 4x SATA 6Gb/s ports: Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - M.2_4 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) // Intel® Z890 Chipset: M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)- M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) // 4 x SATA 6Gb/s ports // SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately. // Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 // When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
*USB*	Rear USB (Total 11 ports): 2x Thunderbolt™ 4 ports (2x USB Type-C®) - 5x USB 10Gbps ports (4x Type-A + 1x USB Type-C®) - 4x USB 5Gbps ports (4x Type-A) // Front USB (Total 10 ports): 1x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) - 1x USB 10Gbps connector (supports USB Type-C®) - 2x USB 5Gbps headers support 4 additional USB 5Gbps ports - 2x USB 2.0 headers support 4 additional USB 2.0 ports // USB Type-C® power delivery output: max. 5V/3A // USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
*Back Panel I/O Ports*	2x Thunderbolt™ 4 USB Type-C® ports // 5x USB 10Gbps ports (4x Type-A + 1x USB Type-C®) // 4x USB 5Gbps ports (4x Type-A) // 1x HDMI™ port // 1x Wi-Fi module // 1x Intel® 2.5Gb Ethernet port // 1x Realtek 5Gb Ethernet port // 2x Gold-plated audio jacks // 1x Optical S/PDIF out port // 1x BIOS FlashBack™ button // 1x Clear CMOS button
*Audio*	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel // Audio Features: SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors.
*Accessories*	Cables: 1x ARGB RGB extension cable - 4x SATA 6Gb/s cables // Additional Cooling Kit: 1x DDR5 fan holder - 1x Thermal pad for M.2 22110 // Miscellaneous: 1x ASUS WiFi Q-Antenna - 1x Q-connector - 1x M.2 Q-Latch package - 3 x M.2 Q-Slide packages - 1x ROG stickers - 6x M.2 rubber packages - 1x ROG thank you card - 1x ROG Bottle Opener // Installation Media: 1x USB drive with utilities and drivers // Documentation: 1x Quick start guide
*Internal I/O Connectors*	Fan and Cooling Related: 1x 4-pin CPU Fan header - 1x 4-pin CPU OPT Fan header - 1x 4-pin AIO Pump header - 4x 4-pin Chassis Fan headers - 1x W_PUMP+ headers // Power Related: 1x 24-pin Main Power connector - 2x 8-pin +12V CPU Power connectors - 1x 8-pin PCIe Power connector // Storage Related: 6x M.2 slots (Key M) - 4x SATA 6Gb/s ports - 1x SlimSAS connector // USB: 1x USB 20Gbps connector (supports USB Type-C® ) - 1x USB 10Gps connector (supports USB Type-C® ) - 2x USB 5Gbps headers support 4 additional USB 5Gbps ports - 2x USB 2.0 headers support 4 additional USB 2.0 ports // Miscellaneous: 3x Addressable Gen 2 headers - 1x Alteration PCIe mode switch - 1x FlexKey button - 1x Front Panel Audio header (F_AUDIO) - 1x ReTry button - 1x Start button - 1x 10-1 pin System Panel header - 1x Thermal Sensor header - 1x Thunderbolt™ (USB4®) header
*Special Features*	Extreme OC Kit: FlexKey button - ReTry button - Start button // Extreme Engine Digi+: 10K Black metallic capacitors - MicroFine alloy choke // ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot // ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design // ASUS EZ DIY: Backplate - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM // Aura Sync: Addressable Gen 2 header(s) // ROG M.2 PowerBoost // Front Panel USB 20Gbps with Quick Charge 4+ Support: Support: up to 60W fast charging and USB Wattage Watcher - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS
*Software Features*	ROG Exclusive Software: ROG CPU-Z - Dolby Atmos - Polymo Lighting II - Internet Security (1-year full version) // ASUS Exclusive Software: Armoury Crate: - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst- HWiNFO - Power Saving // ASUS AI Advisor // ASUS Driver Hub // ASUS GlideX // TurboV Core// USB Wattage Watcher // TurboV Core // Adobe Creative Cloud (Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS // NPU Boost // AI Overclocking Guide // ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey // FlexKey
*Ethernet*	*1x Intel® 2.5Gb Ethernet // 1x Realtek 5Gb Ethernet // ASUS LANGuard*
*Wireless & Bluetooth*	Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. // Bluetooth® v5.4: The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
*Form Factor*	*ATX Form Factor 30.5x24.4cm*

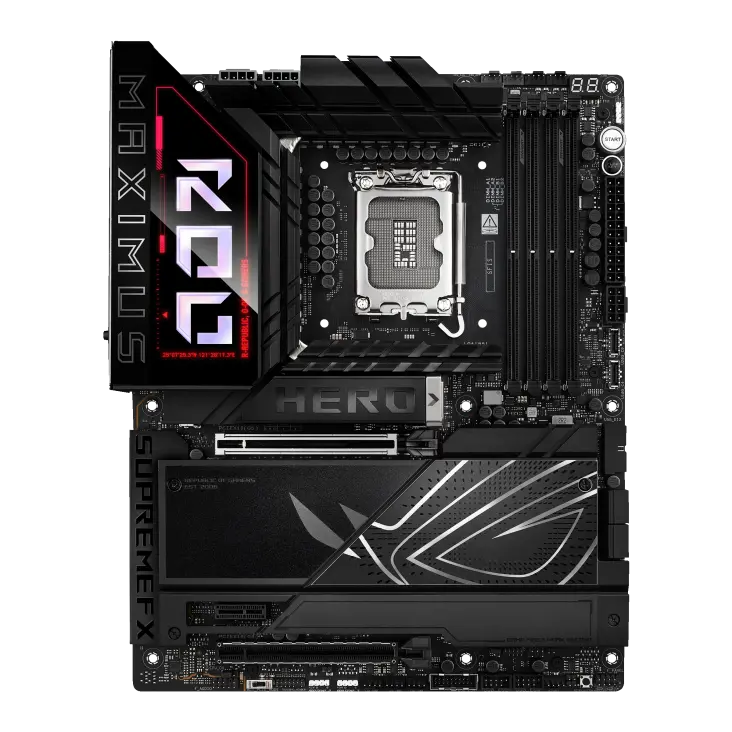

ASUS ROG Maximus Z890 Hero LGA1851 ATX Motherboard

Product Description
