Dimensions	250 x 565 x 591 mm
Weight	18Kg
Case Size	Mid Tower
Motherboard Support	EATX (12"x10.9") / ATX / Micro-ATX / Mini-ITX
Drive Bays	4x 2.5" Bay / 2x 2.5"/3.5" Combo Bay
Expansion Slots	8 / 2 (additional vertical)
Front I/O Port	1x Headphone / 1x Microphone / 4x USB 3.1 Gen1 / 1x USB 3.1 Gen2 Type C / LED Control Button / Fan Control Button / Reset Button
Tempered Glass	Front Side / Left Side / Right Side
Radiator Support (Front)	120 mm / 140 mm / 240 mm / 280 mm / 360 mm / 420 mm
Radiator Support (Top)	120 mm / 140 mm / 240 mm / 280 mm / 360 mm
Radiator Support (Rear)	120 mm / 140 mm
Cooling Support (Front)	3x 120 mm / 3x 140 mm / Radiator + Fan Thickness: Max. 90 mm
Cooling Support (Top)	3 x 120 mm / 2 x 140 mm / Radiator + Fan Thickness: Max. 60 mm
Cooling Support (Rear)	1 x 120 mm / 1 x 140 mm
Pre-installed Fans (Front)	3 x 140 mm
Pre-installed Fans (Rear)	1 x 140 mm
Maximum CPU Cooler Height	190 mm
Maximum GPU Length	450 mm (Riser Cable above 200mm in length is required for one GPU install in vertical position)
Maximum PSU Length	220 mm
Removable Dust Filters	Front / Top / Bottom
Maximum Cable Management Space	33 mm
AURA Sync	ARGB

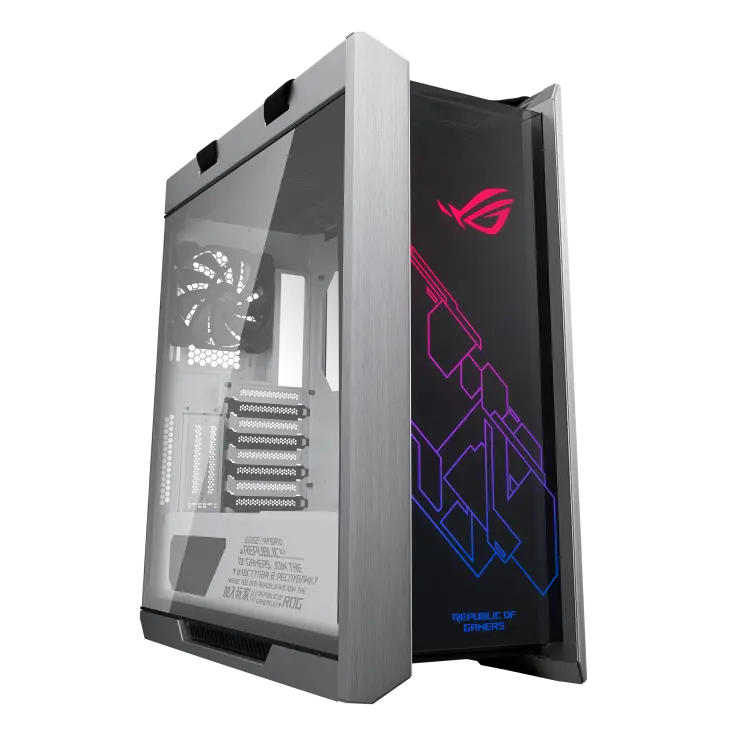

ASUS ROG Strix Helios GX601 Case White Edition

Product Description
