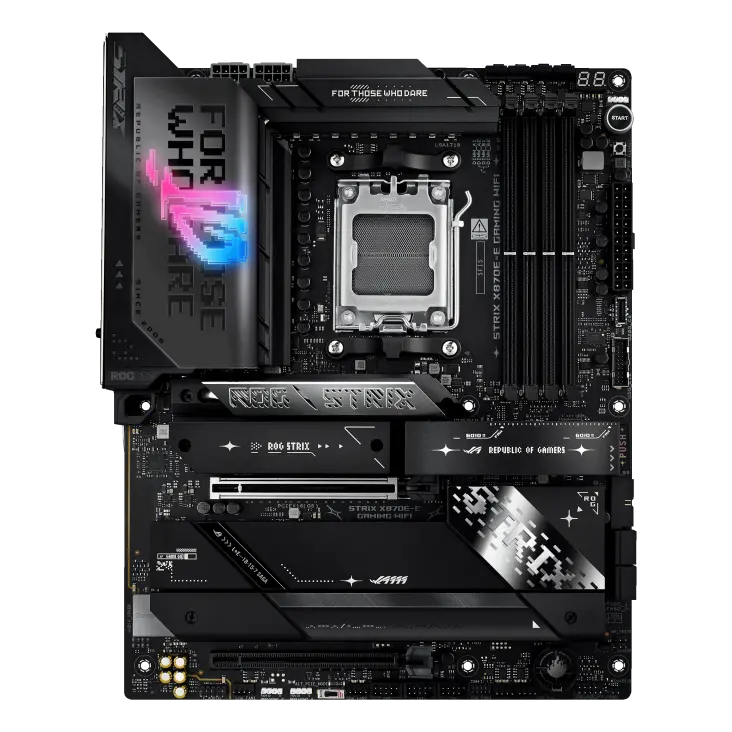

*Model:*	*ROG STRIX X870E-E GAMING WIFI*
*Product Number:*	*90MB1IB0-M0EAY0*
*CPU*	*AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
*Chipset*	*AMD X870E*
*BIOS*	*256 Mb Flash ROM, UEFI AMI BIOS*
*Operating System*	*Windows® 11 (22H2 & later)*
*Form Factor*	*ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )*
*Manageability*	*WOL by PME, PXE*
*Memory*	4 x DIMM slots, max. 256GB, DDR5 Support up to8000+MT/s(OC) with Ryzen™ 9000 Series Processors - 8400+MT/s(OC) with Ryzen™ 8000 Series Processors - 8000+MT/s(OC) with Ryzen™ 7000 Series Processors // ECC and Non-ECC Un-buffered DIMM // Dual Channel Memory Architecture // Supports AMD EXTended Profiles for Overclocking (EXPO™)
*NitroPath DRAM Technology*	*Yes*
*ASUS Enhanced Memory Profile (AEMP)*	*Yes*
*Expansion Slots*	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) // AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) // AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
*Graphics*	*1 x HDMI™ port: Supports max. 4K@60Hz as specified in HDMI 2.1. // 2 x USB4® (40Gbps) ports support USB Type-C® display outputs: Supports max. 4K@60Hz as specified in DisplayPort 1.4a*
*Storage*	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports: AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) // AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) // AMD X870E Chipset: M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) // 4 x SATA 6Gb/s ports // AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
*USB*	Rear USB (Total 13 ports): 2 x USB4® (40Gbps) ports(2 x USB Type-C®) - 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge) - 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®) // Front USB (Total 11 ports): 1 x USB 20Gbps connector (supports USB Type-C®) - 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports - 3 x USB 2.0 headers support additional 6 USB 2.0 ports // USB Type-C® power delivery output: 5V/3A // USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
*Back Panel I/O Ports*	2 x USB4® (40Gbps) ports (2 x USB Type-C®) // 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge) // 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®) // 1 x HDMI™ port // 1 x Wi-Fi Module // 1 x Realtek 5Gb Ethernet // 2 x Gold-plated audio jacks// 1 x Optical S/PDIF out port // 1 x BIOS FlashBack™ button // 1 x Clear CMOS button
*Audio*	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback // Audio Features: Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
*Accessories*	Cables: 2 x SATA 6Gb/s cables // Additional Cooling Kit: 1 x Thermal pad for M.2 22110 // Miscellaneous: 1 x ASUS Wi-Fi moving antennas - 1 x Cable ties pack - 1 x M.2 Q-Latch package - 2 x M.2 Q-Slides - 1 x ROG key chain - 1 x ROG Strix stickers - 5 x M.2 Rubbers // Documentation: 1 x Quick start guide
*Internal I/O Connectors*	Fan and Cooling related: 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 5 x 4-pin Chassis Fan headers // Power related: 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors // Storage related: 5 x M.2 slots (Key M)- 4 x SATA 6Gb/s ports // USB: 1 x USB 20Gbps connector (supports USB Type-C®) - 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports // Miscellaneous: 3 x Addressable Gen 2 headers - 1 x CPU Over Voltage jumper - 1 x FlexKey button - 1 x Front Panel Audio header (F_AUDIO) - 1 x Start button - 1 x 10-1 pin System Panel header - 1 x Thermal Sensor header
*Special Features*	Extreme Engine Digi+: 5K Black Metallic Capacitors // ASUS Q-Design: M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot // ASUS Thermal Solution: M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design // ASUS EZ DIY: BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM // Aura Sync: Addressable Gen 2 headers
*Software Features*	ROG Exclusive Software: ROG CPU-Z - Dolby Atmos // ASUS Exclusive Software: Armoury Crate: AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst- HWiNFO - Power Saving // ASUS Driver Hub // ASUS GlideX // TurboV Core // USB Wattage Watcher // Adobe Creative Cloud (Free Trial) // Norton 360 for Gamers (60 Days Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS // AI Overclocking Guide // ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI // BIOS EZ Mode: ASUS MyHotkey // Dynamic OC Switcher // FlexKey
*Ethernet*	*1 x Intel® 5Gb Ethernet // ASUS LANGuard*
*Wireless & Bluetooth*	Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. // Bluetooth® v5.4: The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
