*Model:*	*ROG STRIX Z890-A GAMING WIFI*
*Product Number:*	*90MB1I90-M0EAY0*
*CPU*	Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 // Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
*Chipset*	*Intel® Z890 Chipset*
*BIOS*	*256 Mb Flash ROM, UEFI AMI BIOS*
*Operating System*	*Windows® 11 (22H2 & later)*
*Form Factor*	*ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )*
*Manageability*	*WOL by PME, PXE*
*Memory*	4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked // Dual channel memory architecture // Supports Intel® Extreme Memory Profile (XMP) memory module // ASUS Enhanced Memory Profile III (AEMPIII)
*Supports DIMM Flex*	*Yes*
*Supports DIMM FIT*	*Yes*
*Expansion Slots*	*Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot // Intel® Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)*
*Graphics*	1 x DisplayPort // 1 x HDMI™ port // 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs // Supports max. 8K@60Hz as specified in DisplayPort 1.4 // Supports 4K@60Hz as specified in HDMI 2.1. // In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
*Storage*	Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports: 1 - Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) // 2- Intel® Z890 Chipset: M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) - M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) // 3- 4 x SATA 6Gb/s ports // Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
*USB*	Rear USB (Total 10 ports): 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) - 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge) - 2 x USB 5Gbps ports (2 x Type-A) // Front USB (Total 7 ports): 1 x USB 20Gbps connector (supports USB Type-C® ) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports // USB Type-C® power delivery output: max. 5V/3A // USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
*Back Panel I/O Ports*	2 x Thunderbolt™ 4 ports (2 x USB Type-C®) // 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge) // 2 x USB 5Gbps ports (2 x Type-A) // 1 x DisplayPort // 1 x HDMI™ port // 1 x Wi-Fi module // 1 x Intel® 2.5Gb Ethernet port // 2 x Audio jacks// 1 x Optical S/PDIF out port // 1 x BIOS FlashBack™ button // 1 x Clear CMOS button
*Audio*	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel // Audio Features: SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
*Accessories*	Cables: 2 x SATA 6Gb/s cables // Additional Cooling Kit: 1 x Thermal pad for M.2 22110 // Miscellaneous: 1 x ASUS WiFi Q-Antenna - 1 x Cable ties package - 1 x M.2 Q-Latch package - 1 x ROG key chain - 1 x ROG Strix stickers - 5 x M.2 rubbers // Documentation: 1 x Quick start guide
*Internal I/O Connectors*	Fan and Cooling Related : 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 5 x 4-pin Chassis Fan headers // Power Related: 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors // Storage Related: 5 x M.2 slots (Key M)4 x SATA 6Gb/s ports // USB: 1 x USB 20Gbps connector (supports USB Type-C® ) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports // Miscellaneous: 3 x Addressable Gen 2 headers - 1 x Chassis Intrusion header - 1 x CPU Over voltage jumper - 1 x Front Panel Audio header (F_AUDIO) - 1 x Start button - 1 x 10-1 pin Front System Panel header - 1 x Thermal Sensor header - 1 x Thunderbolt™ (USB4®) header
*Special Features*	Extreme Engine Digi+: 5K Black metallic capacitors // ASUS Q-Design: M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-SlotASUS // Thermal Solution: M.2 heatsink backplate - M.2 heatsink // ASUS EZ DIY: BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM // Aura Sync: Addressable Gen 2 headers
*Software Features*	ROG Exclusive Software: ROG CPU-Z - Dolby Atmos // ASUS Exclusive Software: Armoury Crate: Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving // AIDA64 Extreme (60 days free trial) // HWiNFO // ASUS AI Advisor // ASUS DriverHub // ASUS GlideX // USB Wattage Watcher // TurboV Core // Adobe Creative Cloud (30 Days Free Trial) // Norton 360 for Gamers (60 Days Free Trial) // WinRAR (40 Days Free Trial) // UEFI BIOS // AI Overclocking Guide // NPU Boost // ASUS EZ DIY: ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey // FlexKey
*Ethernet*	*1 x Intel® 2.5Gb Ethernet // ASUS LANGuard*
*Wireless & Bluetooth*	Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. // Bluetooth® v5.4: The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

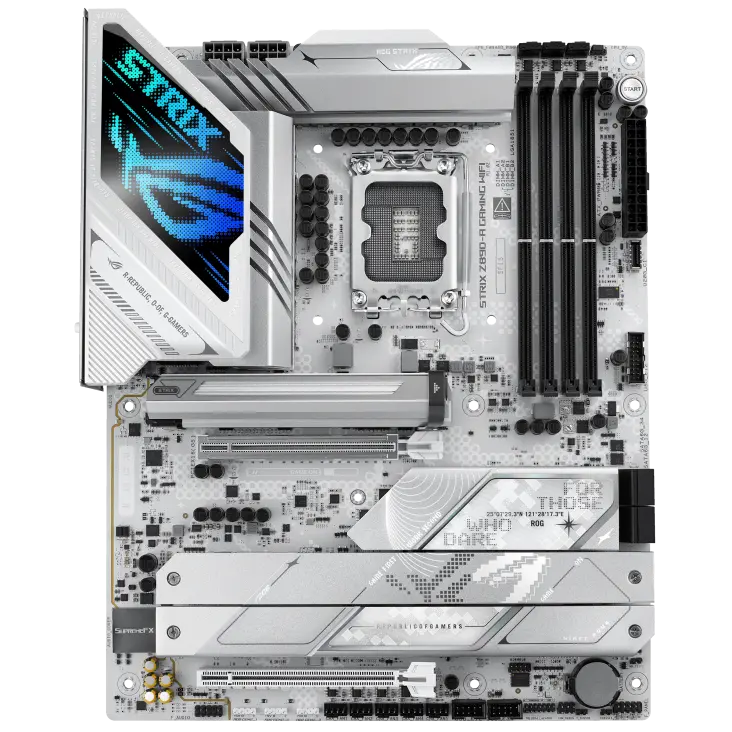

ASUS ROG Strix Z890-A Gaming WIFI LGA 1851 ATX Motherboard

Product Description
