Brand	ASUS
Model	ASUS TUF GAMING B760-PLUS WIFI
Product Number	90MB1ER0-M1EAY0
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® B760 Chipset
Memory	4x DIMM, Max. 192GB, DDR5
Memory Frequency	7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Memory Features	Dual Channel Memory Architecture // Supports Intel® Extreme Memory Profile (XMP) // OptiMem II
Graphics	1x DisplayPort: Supports max. 4K@60Hz as specified in DisplayPort 1.4 // 1x HDMI® port: Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots (CPU)	Intel® Core™ Processors (14th & 13th & 12th Gen): 1x PCIe 5.0 x16 slot
Expansion Slots (Chipset)	Intel® B760 Chipset: 1x PCIe 3.0 x16 slot (supports x4 mode) // 2x PCIe 3.0 x1 slots
Storage	Total Supports 3x M.2 slots // 4x SATA 6Gb/s ports
Storage (CPU)	Intel® Core™ Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (Chipset)	Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) // 4x SATA 6Gb/s ports
RAID Support	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Rear USB	Total 6 ports: 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®) - 1x USB 3.2 Gen 2 port (1x Type-A) - 3x USB 3.2 Gen 1 ports (3x Type-A) - 1x USB 2.0 port (1x Type-A)
Front USB	Total 7 ports: 1x USB 3.2 Gen 2 connector (supports USB Type-C®) - 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC:: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback
Audio Features	Audio Shielding // Premium audio capacitors // Dedicated audio PCB layers // Audio cover // Rear optical S/PDIF out port
Ethernet	Realtek® 2.5GbE Ethernet // TUF LANGuard
WIFI & Bluetooth	Wi-Fi 6: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band // Bluetooth® v5.2
Internal I/O Connectors	Fan and Cooling related: 1x 4-pin CPU Fan header - 1x 4-pin CPU OPT Fan header - 1x 4-pin AIO Pump header - 4x 4-pin Chassis Fan header /-/ Power related: 1x 24-pin Main Power connector - 1x 8-pin +12V Power connector - 1x 4-pin +12V Power connector /-/ Storage related: 3x M.2 slots (Key M) - 4x SATA 6Gb/s ports /-/ USB: 1x USB 3.2 Gen 2 connector (supports USB Type-C® ) - 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2x USB 2.0 headers support 4 additional USB 2.0 ports /-/ Miscellaneous: 3x Addressable Gen 2 headers - 1x Aura RGB header - 1x Clear CMOS header - 1x COM Port header - 1x Front Panel Audio header (AAFP) - 1x 20-3 pin System Panel header with Chassis intrude function - 1x Thunderbolt™ (USB4®) header
Back Panel I/O Ports	1x USB 3.2 Gen 2x2 port (1x USB Type-C®) // 1x USB 3.2 Gen 2 port (1x Type-A) // 3x USB 3.2 Gen 1 ports (3x Type-A) // 1x USB 2.0 port (1x Type-A) // 1x DisplayPort // 1x HDMITM port // 1x Wi-Fi Module // 1x Realtek 2.5Gb Ethernet port // 5x Audio jacks // 1x Optical S/PDIF out port
Accessories	Cables: 2x SATA 6Gb/s cables // Miscellaneous: 1x ASUS Wi-Fi moving antenna - 1x TUF Gaming sticker - 2x M.2 Rubber Packages - 1x Screw package for M.2 SSD // Documentation: 1x TUF Certification card - 1x User guide
BIOS	128Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows® 11 // Windows® 10 64-bit
Manageability	WOL by PME, PXE
Form Factor	ATX Form Factor 30.5x24.4cm

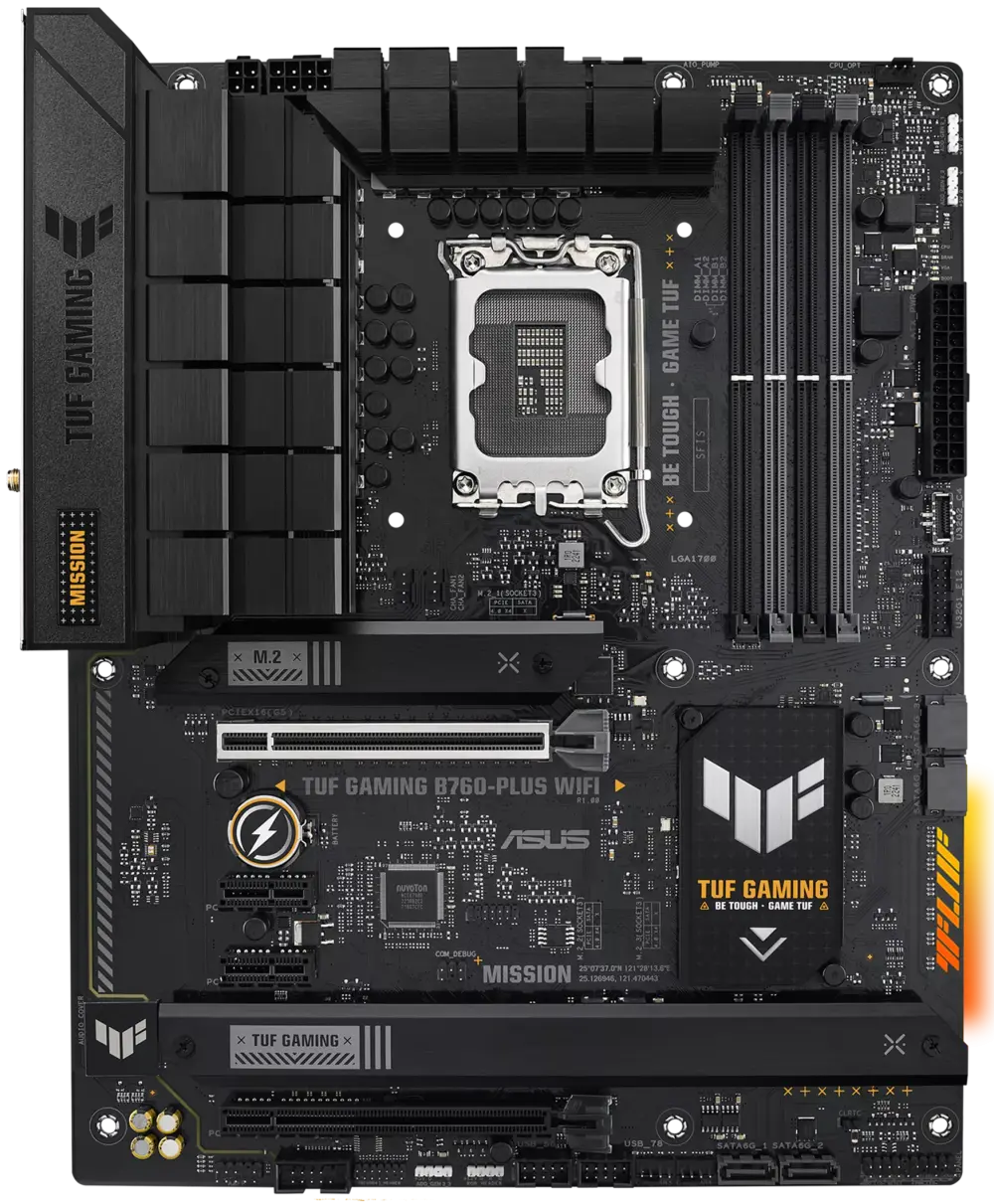

Asus TUF GAMING B760-PLUS WIFI LGA1700 ATX Motherboard
