Brand	ASUS
Model	ASUS TUF GAMING B650-PLUS WIFI
Product Number	90MB1BZ0-M0EAY0
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650
Memory	4x DIMM slots, max. 256GB, DDR5
Memory Frequency	7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Memory Features	Dual Channel Memory Architecture // Supports AMD EXTended Profiles for Overclocking (EXPO™) // OptiMem II
Graphics	1x DisplayPort: Supports max. 8K@60Hz as specified in DisplayPort 1.4 // 1x HDMI® port: Supports 4K@60Hz as specified in HDMI 2.1 // VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots (CPU)	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1x PCIe 4.0/3.0 x16 slot // AMD Ryzen™ 8000 Series Desktop Processors: 1x PCIe 4.0 x16 slot (supports x8/x4 mode)
Expansion Slots (Chipset)	AMD B650 Chipset: 1x PCIe 4.0/3.0 x16 slot (supports x4 mode) // 2x PCIe 4.0/3.0 x1 slots
Storage	Total Supports 3x M.2 slots // 4x SATA 6Gb/s ports
Storage (CPU)	AMD Ryzen™ 9000 & 7000 Series: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) // AMD Ryzen™ 8000 Series: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
Storage (Chipset)	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) // 4x SATA 6Gb/s ports
RAID Support	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Rear USB	Total 8 ports: 1x USB 3.2 Gen 2x2 port(s) (1x USB Type-C®) // 3x USB 3.2 Gen 2 port(s) (2x Type-A + 1 x USB Type-C®) // 4x USB 2.0 port(s) (4x Type-A)
Front USB	Total 7 ports: 1x USB 3.2Gen 1 connector (supports USB Type-C®) // 1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports // 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding // Power pre-regulator reduces power input noise to ensure consistent performance // Premium audio capacitors // Dedicated audio PCB layers // Audio cover // Unique de-pop circuit
Ethernet	Realtek® 2.5GbE Ethernet // TUF LANGuard
WIFI & Bluetooth	Wi-Fi 6: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) - Supports 2.4/5GHz frequency band // Bluetooth v5.2
Internal I/O Connectors	Fan and Cooling related: 1x 4-pin CPU Fan header(s) - 1x 4-pin CPU OPT Fan header(s) - 1x 4-pin AIO Pump header(s) - 4x 4-pin Chassis Fan header(s) /-/ Power related: 1x 24-pin Main Power connector - 1x 8-pin +12V Power connector - 1x 4-pin +12V Power connector /-/ Storage related: 3x M.2 slots (Key M) - 4x SATA 6Gb/s ports /-/ USB - 1x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) - 1x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports - 2x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports /-/ Miscellaneous: 3x Addressable Gen 2 header(s) - 1x Aura RGB header(s) - 1x Clear CMOS header - 1x COM Port header - 1x Front Panel Audio header (AAFP) - 20-3 pin System Panel header with Chassis intrude function - 1x Thunderbolt™ (USB4®) header
Back Panel I/O Ports	1x USB 3.2 Gen 2x2 port(s) (1x USB Type-C®) // 3x USB 3.2 Gen 2 port(s) (2x Type-A + 1x USB Type-C®) // 4x USB 2.0 port(s) (4x Type-A) // 1x DisplayPort // 1x HDMI® port // 1x Wi-Fi Module // 1x Realtek 2.5Gb Ethernet port // 5x Audio jacks // 1x BIOS FlashBack™ button
Accessories	Cables: 2x SATA 6Gb/s cables // Miscellaneous: 1x ASUS WiFi Q-Antenna - 2x M.2 rubber packages - 1x Screw package for M.2 SSD - 1x TUF GAMING sticker // Documentation: 1x Quick start guide
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows® 11 // Windows® 10 64-bit
Form Factor	ATX Form Factor 30.5x24.4cm

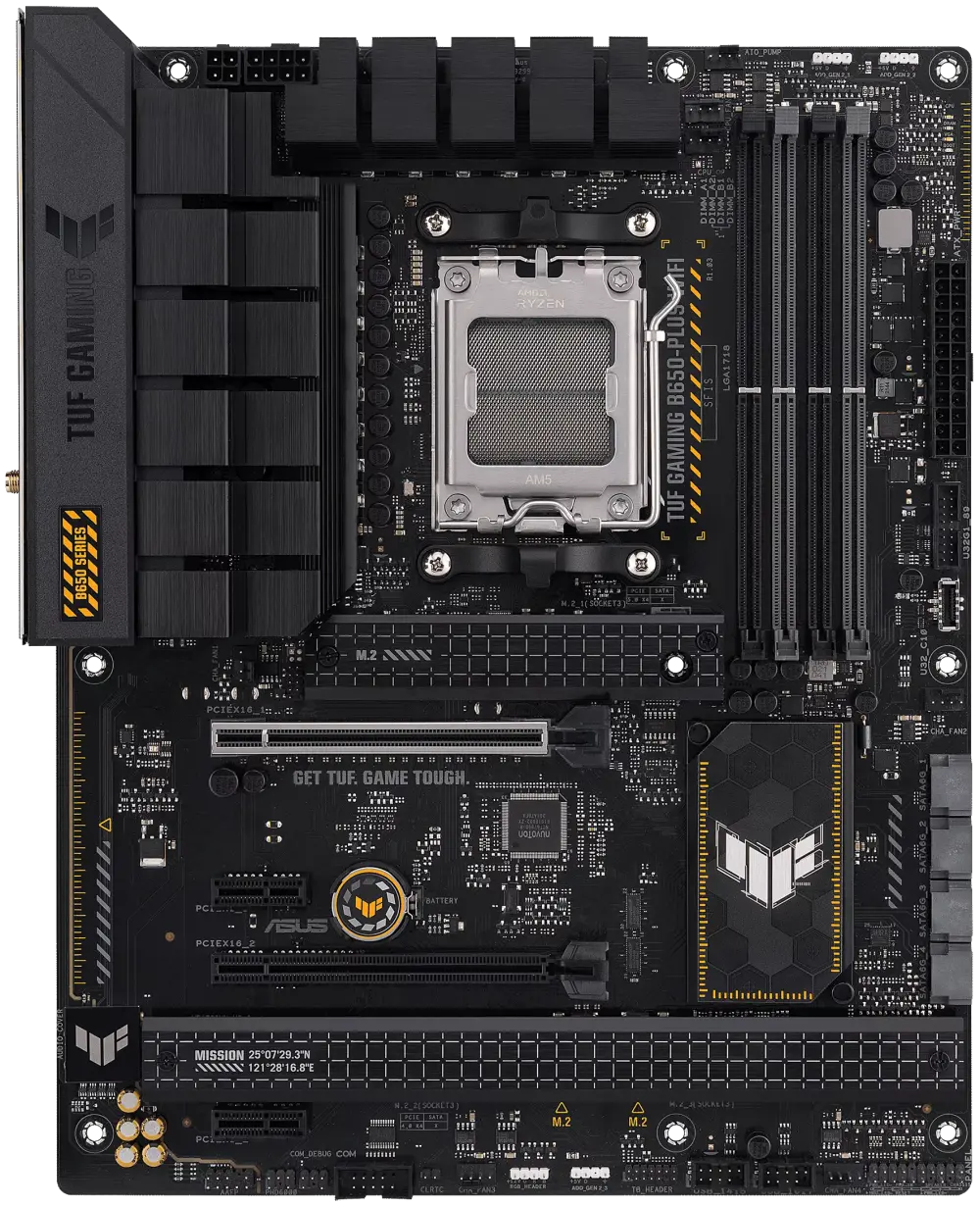

Asus TUF GAMING B650-PLUS WIFI AM5 ATX Motherboard

Product Description
