Brand	ASUS
Model	ASUS TUF GAMING X870E-PLUS WIFI7
Product Number	90MB1M70-M0EAY0
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870E Chipset
Memory	4x DIMM slots, max. 256GB, DDR5
Memory Frequency	Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Memory Features	Dual channel memory architecture // DIMM Fit // Supports AMD Extended Profiles for Overclocking (EXPO™) // ASUS Enhanced Memory Profile (AEMP)
Graphics	1x HDMI™ port Supports 4K@60Hz as specified in HDMI 2.1 // 2x USB® (40Gbps) ports support USB Type-C® display outputs Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots (CPU)	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1x PCIe 5.0 x16 slot // AMD Ryzen™ 8000 Series Desktop Processors: 1x PCIe 4.0 x16 slot (supports x8/x4 mode)
Expansion Slots (Chipset)	AMD X870E Chipset: 1x PCIe 4.0 x16 slot (supports x4 mode) // 1x PCIe 3.0 x1 Slot
Storage	Total Supports 4x M.2 slots // 4x SATA 6Gb/s ports
Storage (CPU)	AMD Ryzen™ 9000 & 7000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) // M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) // AMD Ryzen™ 8000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode): M.2_2 slot is not supported
Storage (Chipset)	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) // M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) // 4x SATA 6Gb/s ports
RAID Support	AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10 // Ryzen™ 8000 Series Processors: RAID 0/1 // Ryzen™ 7000 Series Processors: RAID 0/1/10 // M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
Rear USB	Total 13 ports: 2x USB4® (40Gbps) ports (2 x USB Type-C®) // 3x USB 10Gbps ports (3 x Type-A) // 4x USB 5Gbps ports (4 x Type-A) // 4x USB 2.0 ports (4 x Type-A)
Front USB	Total 7 ports: 1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) // 1x USB 5Gbps header supports 2 additional USB 5Gbps ports // 2 USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC: Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*"
Audio Features	Audio Shielding // Premium audio capacitors // Dedicated audio PCB layers // Audio cover // Unique de-pop circuit
Ethernet	Realtek® 2.5GbE Ethernet // TUF LANGuard
WIFI & Bluetooth	Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate // Bluetooth® v5.4
Internal I/O Connectors	Fan and Cooling Related: 1x 4-pin CPU Fan header - 1x 4-pin CPU OPT Fan header - 1x 4-pin AIO Pump header - 4x 4-pin Chassis Fan headers // Power Related: 1x 24-pin Main Power connector - 2x 8-pin +12V CPU Power connectors // Storage Related: 4x M.2 slots (Key M) - 4x SATA 6Gb/s ports // USB: 1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) - 1x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2x USB 2.0 headers support 4 additional USB 2.0 ports // Miscellaneous: 3x Addressable Gen 2 headers - 1x Clear CMOS header - 1x Chassis Intrusion header - 1x Front Panel Audio header (F_AUDIO) - 1x 10-1 pin Front System Panel header - 1x Thermal Sensor header
Back Panel I/O Ports	2x USB4® (40Gbps) ports (2 x USB Type-C®) // 3x USB 10Gbps ports (3x Type-A) // 4x USB 5Gbps ports (4x Type-A) // 4x USB 2.0 ports (4x Type-A) // 1x HDMI™ port // 1x Wi-Fi module // 1x Realtek 2.5Gb Ethernet port // 3x Audio jacks // 1x BIOS FlashBack™ button
Features	ASUS TUF PROTECTION: DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O // ASUS Q-Design: M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot // ASUS Thermal Solution: M.2 heatsinks - VRM heatsink design // ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM // Aura Sync: Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0
Accessories	Cables: 2x SATA 6Gb/s cables // Miscellaneous: 1x ASUS WiFi Q-Antenna - 2x M.2 rubber packages - 1x Screw package for M.2 SSD - 1x TUF GAMING sticker // Documentation: 1x Quick start guide
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows 11
Form Factor	ATX Form Factor 30.5x24.4cm

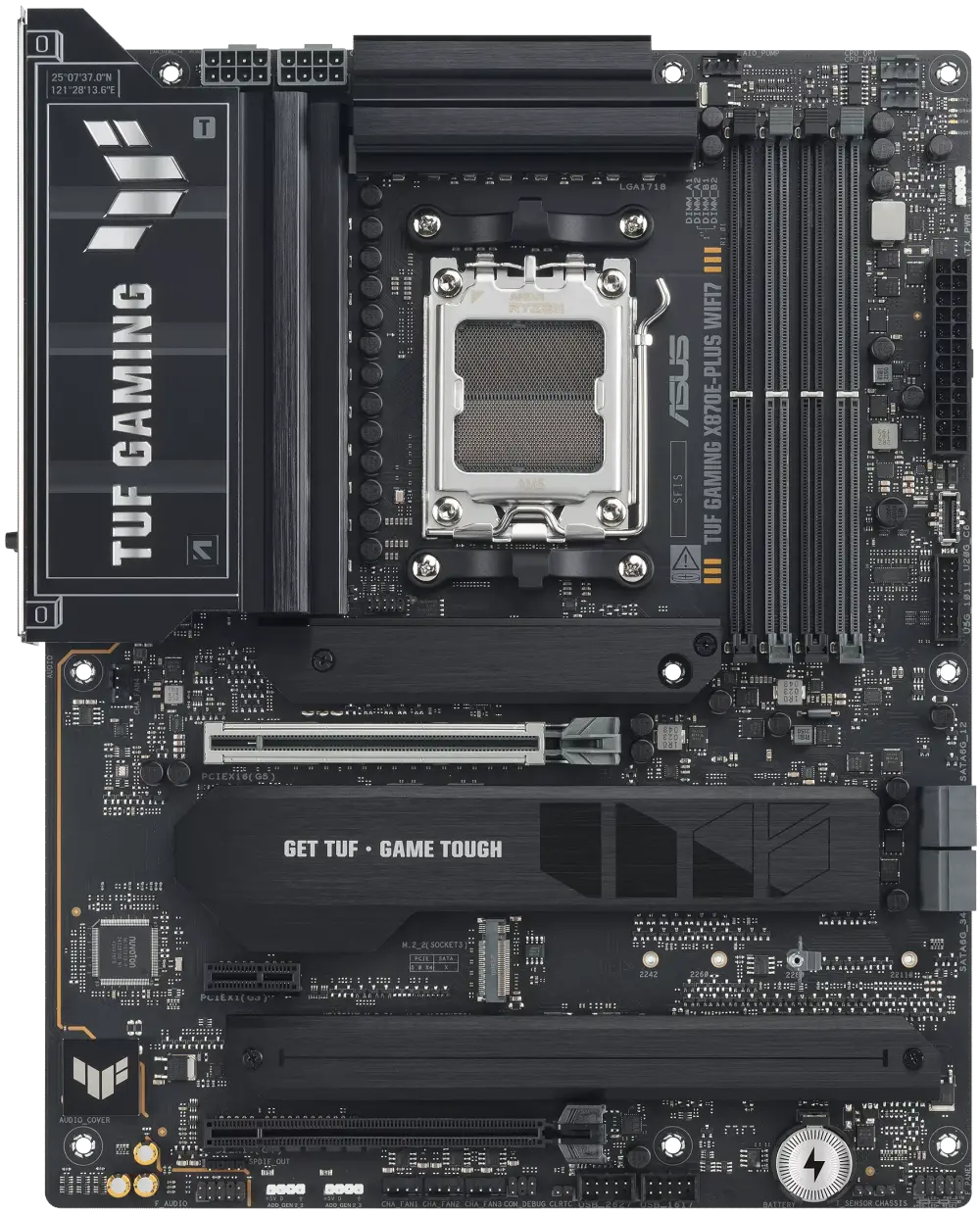

Asus TUF GAMING X870E-PLUS WIFI7 AM5 ATX Motherboard
