Next-Gen Power: The Foundation for Ryzen 9000 Series

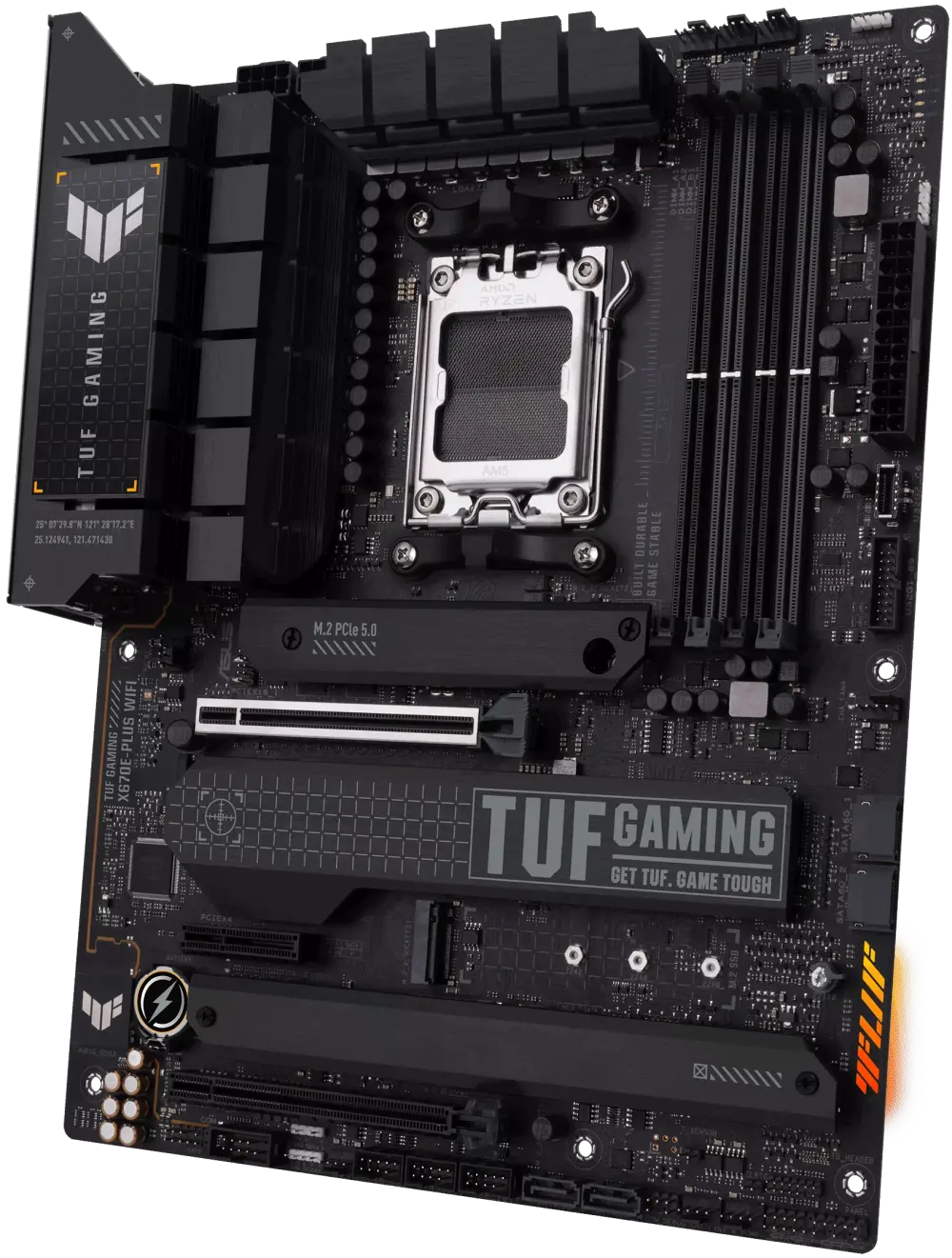

The ASUS TUF Gaming X670E-PLUS WIFI (90MB1BK0-M0EAY0) is built for gamers who demand a rock-solid foundation for the latest AMD socket AM5 processors. With its advanced power delivery and comprehensive cooling options, this motherboard is designed to handle the massive multi-threaded workloads of AMD Ryzen™ 9000 and 7000 Series processors without breaking a sweat.

Ultimate Future-Proofing: PCIe 5.0 & DDR5

Stay ahead of the curve with native PCIe 5.0 support for both your graphics card and your primary M.2 storage. This means you are ready for the next generation of ultra-fast SSDs and GPUs. Combined with support for high-speed DDR5-8000 (OC) memory, you’ll experience reduced latency and massive bandwidth for gaming, streaming, and content creation.

TUF Durability & Connectivity

True to the TUF Gaming lineage, this board features military-grade components, including ProCool power connectors and TUF LANGuard for enhanced longevity. With an integrated WiFi 6E module and 2.5Gb Ethernet, your connection stays stable during intense online matches. Plus, with a staggering 19 USB ports (including rear USB-C®), you’ll never run out of room for your peripherals.

Specs:

Brand	ASUS
Model	ASUS TUF GAMING X670E-PLUS WIFI
Product Number	90MB1BK0-M0EAY0 // 4711081905738
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series
Chipset	AMD X670
Memory	4x DIMM, Max. 192GB, DDR5
Memory Frequency	8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Memory Features	Dual Channel Memory Architecture // Supports AMD Extended Profiles for Overclocking (EXPO™) // OptiMem II
Graphics	1x DisplayPort: Supports max. 8K@60Hz as specified in DisplayPort 1.4. // 1x HDMI® port: Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots (CPU)	AMD Ryzen 9000 & 7000 Series Desktop Processors: 1x PCIe 5.0 x16 slot (support x16 mode) // AMD Ryzen 8000 Series Desktop Processors: 1x PCIe 5.0 x16 slot (support x8/x4 mode)
Expansion Slots (Chipset)	AMD X670 Chipset: 1x PCIe 4.0 x16 slot (supports x4 mode), 1x PCIe 4.0 x4 slots
Storage M.2 (CPU)	AMD Ryzen 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) // AMD Ryzen 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage M.2 (Chipset)	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) // M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (SATA)	4x SATA 6Gb/s connectors
RAID Support	AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Storage Compatibility	M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.
Rear USB	Total 10 ports: 1x USB 3.2 Gen 2x2 port (1x USB Type-C®) // 4x USB 3.2 Gen 2 ports (3x Type-A + 1 x USB Type-C®) // 5x USB 3.2 Gen 1 ports (5x Type-A)
Front USB	Total 9 ports: 1x USB 3.2 Gen 2 connector (supports USB Type-C®) // 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports // 3x USB 2.0 headers support additional 6 USB 2.0 ports
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Audio Features	Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Ethernet	1x Realtek 2.5Gb Ethernet // TUF LANGuard
WIFI & Bluetooth	Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band // Bluetooth v5.2
Internal I/O Connectors	Fan and Cooling related: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 1x W_PUMP+ header // Power related: 1x 24-pin Main Power connector, 2x 8-pin +12V Power connectors // Storage related: 4x M.2 slots (Key M), 4x SATA 6Gb/s ports // USB: 1x USB 3.2 Gen 2 connector (supports USB Type-C®), 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3x USB 2.0 headers support additional 6 USB 2.0 ports // Miscellaneous: 3x Addressable Gen 2 headers, 1x AURA RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x 20-3 pin System Panel header with Chassis intrude function, 1x Thermal Sensor header, 1x Thunderbolt™ header
Back Panel I/O Ports	1x USB 3.2 Gen 2x2 port (1x USB Type-C®) // 4x USB 3.2 Gen 2 ports (3x Type-A, 1 x USB Type-C®) // 5x USB 3.2 Gen 1 ports (5x Type-A) // 1x DisplayPort // 1x HDMI® port // 1x Wi-Fi Module // 1x Realtek 2.5Gb Ethernet port // 5x Audio jacks // 1x BIOS FlashBack™ button
Features	TUF PROTECTION: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O // ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution, M.2 heatsink, VRM heatsink design // ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS header, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM // AURA Sync: AURA RGB header, Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software: Armoury Crate: AURA Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, Two-Way AI Noise Cancellation // AI Suite 3: Easy Optimization, DIGI+ VRM, Turbo app, PC Cleaner // TUF GAMING CPU-Z // DTS Audio Processing // MyAsus // Norton Anti-virus software (Free Trial version) // WinRAR // UEFI BIOS // ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode // FlexKey
Manageability	WOL by PME, PXE
Accessories	Cables: 2x SATA 6Gb/s cables // Miscellaneous: 1x ASUS Wi-Fi moving antenna, 2x Rubber packages for M.2, 2x Screw packages for M.2 SSD // Documentation: 1x TUF certification card, 1x User guide
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	ATX Form Factor, 30.5x24.4cm
