Solid AM4 Mainboard with 10+3 Digital VRM, PCIe 4.0 & Dual M.2 Slots:

The Gigabyte B550 GAMING X V2 (9MB55GMX2-00-G13) is a feature-packed ATX motherboard designed to unlock the full potential of AMD Ryzen™ 5000, 4000G, and 3000 Series desktop processors. Built on the AMD B550 chipset, it features a 10+3 Phase Digital Twin Power Design with Low RDS(on) MOSFETs to deliver stable power to high-core-count CPUs under sustained gaming and rendering loads. Equipped with an Ultra Durable PCIe 4.0 x16 expansion slot, Dual M.2 slots with an integrated thermal guard, and Q-Flash Plus BIOS updating, the B550 GAMING X V2 provides an ideal foundation for high-performance budget and mid-range PC builds.

Key features:

10+3 Digital Twin Power Design: Utilizes digital PWM controllers and Low RDS(on) MOSFETs for precise power distribution and superior thermal dissipation during heavy CPU overclocks.
PCIe 4.0 Hardware Design: Enables ultra-fast data transfer rates for PCIe 4.0 graphics cards and M.2 NVMe SSDs when paired with AMD Ryzen 5000 and 3000 series processors.
M.2 Thermal Guard Armor: Prevents high-speed NVMe PCIe 4.0 SSDs from thermal throttling under continuous heavy file transfers and game loading screens.
Q-Flash Plus Technology: Allows users to flash and update the motherboard BIOS directly using a USB flash drive without installing a CPU, RAM, or graphics card.
Smart Fan 5 Cooling Control: Features multiple temperature sensors and hybrid fan headers with FAN STOP function to keep fan noise low while maintaining peak thermal efficiency.

specs:

Brand	Gigabyte
Model	Gigabyte B550 GAMING X V2
Product Number	9MB55GMX2-00-G13
CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
Chipset	AMD B550
Memory	4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Memory Frequency	Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Memory Features	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
Graphics	Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors: 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz \| 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz // Maximum shared memory of 16 GB
Expansion Slots (CPU)	1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode \| AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
Expansion Slots (Chipset)	1x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode // 3x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Storage M.2 (CPU)	1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs \| AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
Storage M.2 (Chipset)	1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs
Storage (SATA)	4 x SATA 6Gb/s connectors, integrated in the Chipset
RAID Support	SATA: Support for RAID 0, RAID 1, and RAID 10
USB (CPU)	1x USB 3.2 Gen 2 Type-A port on the back panel // 3x USB 3.2 Gen 1 ports on the back panel
USB (Chipset)	1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header // 2x USB 3.2 Gen 1 ports available through the internal USB header // 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Audio	Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel
Ethernet	Realtek® GbE LAN chip (1Gbps/100Mbps)
Internal I/O Connectors	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector // 1 x CPU fan header // 1x water cooling CPU fan header // 3 x system fan headers // 2 x addressable LED strip headers // 2 x RGB LED strip headers // 1 x CPU cooler LED strip/RGB LED strip header // 2 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x USB Type-C® port, with USB 3.2 Gen 1 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) // 1 x Clear CMOS jumper
Back Panel I/O Ports	2x USB 2.0/1.1 ports // 1 x PS/2 keyboard/mouse port // 1 x DVI-D port // 1 x HDMI port // 3 x USB 3.2 Gen 1 ports // 1 x USB 3.2 Gen 2 Type-A port (red) // 1 x Q-Flash Plus button // 1 x RJ-45 port // 3 x audio jacks
BIOS	1x 128 Mbit flash \| Use of licensed AMI UEFI BIOS \| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features	Support for APP Center: @BIOS \| EasyTune \| RGB Fusion \| Smart Backup \| System Information Viewer // Support for Q-Flash Plus // Support for Q-Flash // Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) // LAN bandwidth management software
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control // Overheating warning
Operating System	Support for Windows 11 64-bit \| Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5 x 24.4cm \| Weight: 1.12kg
Resources	https://www.gigabyte.com/Motherboard/B550-GAMING-X-V2-rev-13/sp

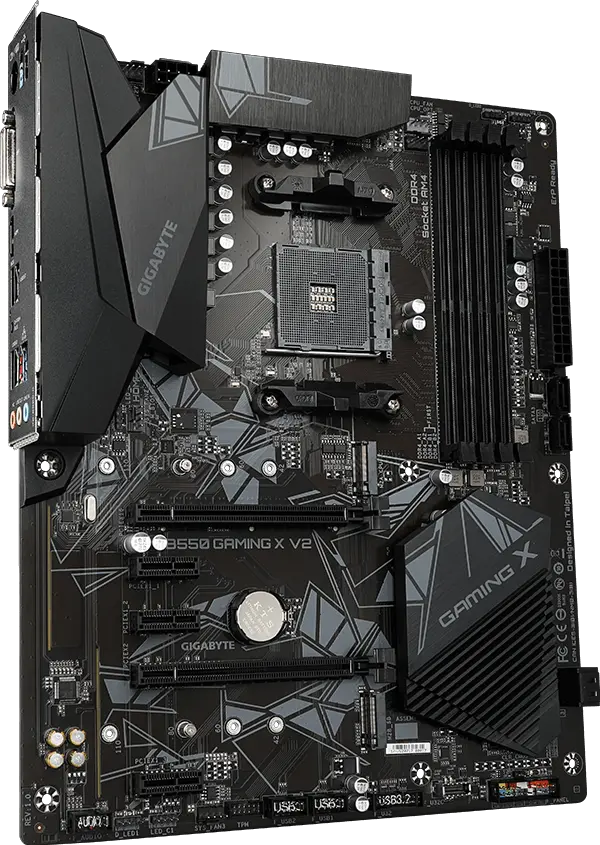

Gigabyte B550 GAMING X V2 AM4 ATX Motherboard
