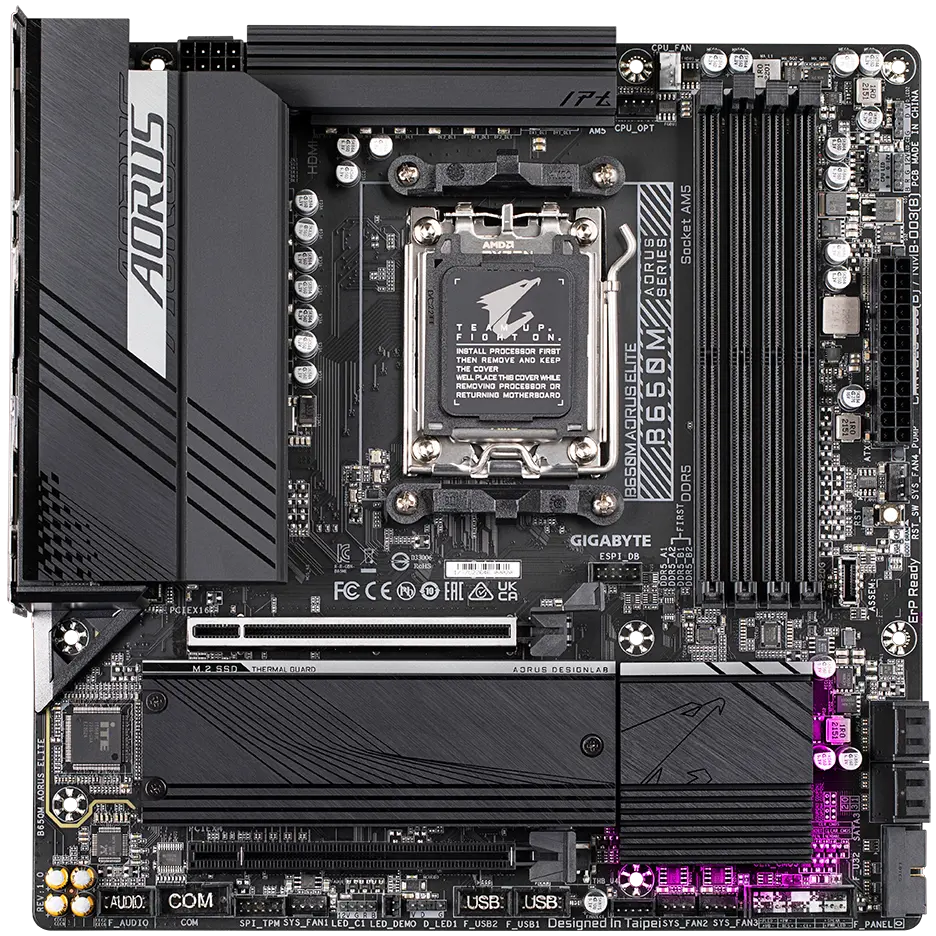

*Model*	*GIGABYTE B650M AORUS ELITE*
*CPU*	*AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors*
*Chipset*	*AMD B650*
*BIOS*	*1 x 256 Mbit flash // Use of licensed AMI UEFI BIOS // PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0*
*Memory*	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules // 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory // Dual channel memory architecture // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
*Graphics*	*Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144Hz // 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz*
*Expansion Slots*	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode // Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
*Storage*	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs // 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs // 4 x SATA 6Gb/s connectors // RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices // RAID 0, RAID 1, and RAID 10 support for SATA storage devices
*USB*	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel // CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel // Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers // Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
*Audio*	*Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out*
*Ethernet*	*Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)*
*Internal I/O Connectors*	1 x 24-pin ATX main power connector // 1 x 8-pin ATX 12V power connector // 1 x 4-pin ATX 12V power connector // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 3 x system fan headers // 1 x system fan/water cooling pump header // 3 x addressable RGB Gen2 LED strip headers // 1 x RGB LED strip header // 3 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x USB Type-C® header, with USB 3.2 Gen 1 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) // 1 x reset jumper // 1 x Clear CMOS jumper
*Back Panel I/O Ports*	1 x Q-Flash Plus button // 1 x DisplayPort // 1 x HDMI port // 1 x USB Type-C® port, with USB 3.2 Gen 2 support // 2 x USB 3.2 Gen 2 Type-A ports (red) // 5 x USB 3.2 Gen 1 ports // 4 x USB 2.0/1.1 ports // 1 x RJ-45 port // 1 x optical S/PDIF Out connector // 2 x audio jacks
*Features*	*Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus*
*Software Features*	*Norton® Internet Security (OEM version) // LAN bandwidth management software*
*I/O Controller*	*iTE® I/O Controller Chip*
*H/W Monitoring*	*Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control*
*Operating System*	*Support for Windows 11 64-bit // Support for Windows 10 64-bit*
*Form Factor*	*Micro ATX Form Factor; 24.4cm x 24.4cm*

Gigabyte B650M AORUS ELITE M-ATX — AM5, DDR5-8000 OC, Dual M.2 (Gen5/Gen4), 2.5Gb LAN
