*Model*	*B650M GAMING WIFI*
*Product Number*	*9MB65MGW-00-G13*
*CPU*	*CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)*
*Chipset*	*AMD B650*
*BIOS*	*1x 256 Mbit flash // Use of licensed AMI UEFI BIOS // PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0*
*Memory*	*2x DDR5 DIMM sockets supporting up to 128GB (64GB single DIMM capacity) of system memory*
*Memory Frequency*	*Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules*
*Memory Features*	Dual channel memory architecture // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme // Memory Profile (XMP) memory modules
*Graphics*	*Integrated Graphics Processor with AMD Radeon™ Graphics support: 1x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz - 1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz*
*Expansion Slots*	1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0x4 mode // Chipset: 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
*Expansion Slots Compatibility*	*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.*
*Storage*	1x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs // 4 x SATA 6Gb/s connectors
*RAID Support*	*RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices // RAID 0, RAID 1, and RAID 10 support for SATA storage devices*
*USB CPU*	*CPU: 2x USB 3.2 Gen 1 ports on the back panel - 1x USB 2.0/1.1 port on the back panel*
*USB Chipset*	Chipset: 2x USB 3.2 Gen 1 ports available through the internal USB header - 5x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available Through The internal USB header) // Chipset+USB 2.0 Hub: 2x USB 2.0/1.1 ports available through the internal USB header
*Audio*	*Realtek® Audio CODEC High Definition Audio // 2/4/5.1/7.1-channel*
*Ethernet*	*Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)*
*Wireless & Bluetooth*	*AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard*
*Internal I/O Connectors*	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector // 1x CPU fan header // 2x system fan headers // 2x addressable LED strip headers // 1x RGB LED strip header // 1 x M.2 Socket 3 connector // 4x SATA 6Gb/s connectors // 1x front panel header // 1x front panel audio header // 1x USB 3.2 Gen 1 header // 2x USB 2.0/1.1 headers // 1x Trusted Platform Module header // 1x Clear CMOS jumper
*Back Panel I/O Ports*	*4x USB 2.0/1.1 ports // 1x PS/2 keyboard/mouse port // 1x D-Sub port // 1x Q-Flash Plus button // 2x USB 3.2 Gen 1 ports // 1x HDMI port // 1x RJ-45 port // 3x audio jacks*
*Features*	*Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus*
*Bundled Software*	*Norton® Internet Security (OEM version) // LAN bandwidth management software*
*I/O Controller*	*iTE® I/O Controller Chip*
*H/W Monitoring*	*Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control*
*Operating System*	*Support for Windows 11 64-bit // Support for Windows 10 64-bit*
*Form Factor*	*Micro ATX Form Factor; 24.0x22.5cm*

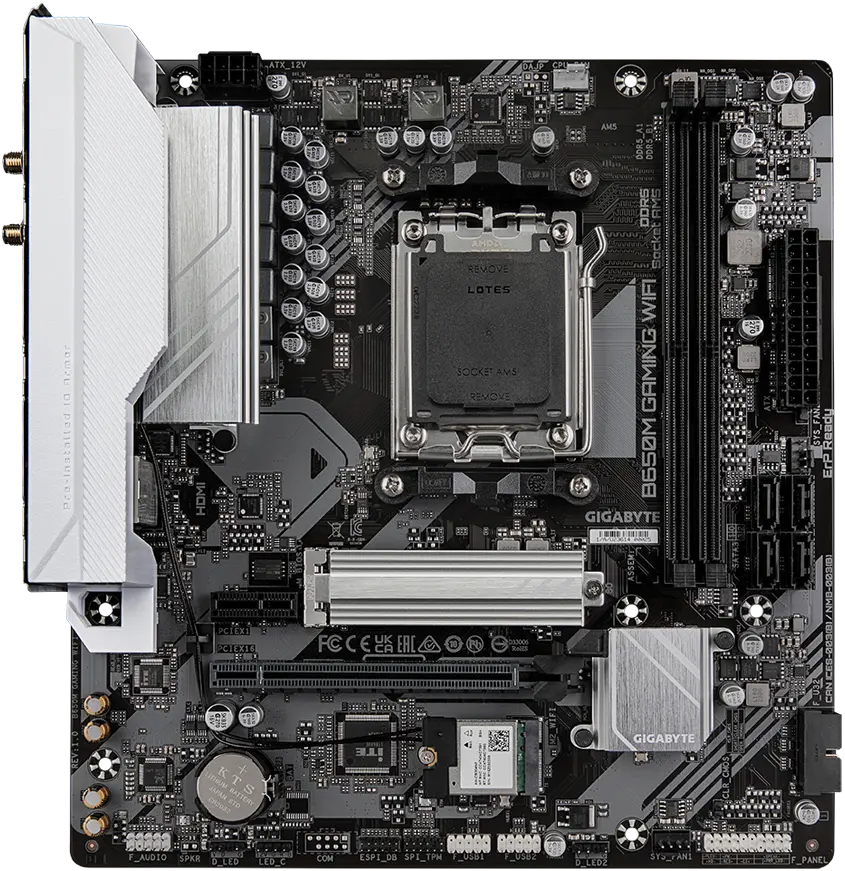

Gigabyte B650M GAMING WIFI AM5 M-ATX Motherboard

Product Description
