Versatile LGA 1700 mATX Mainboard with Hybrid 6+1+1 VRM, Dual PCIe 4.0 M.2 & 4x DDR4 Slots:

The Gigabyte B760M D3HP DDR4 (9MB76M3P4-00-G10) is a cost-effective Micro-ATX motherboard engineered for seamless compatibility with Intel® Core™ 14th, 13th, and 12th Generation processors. Powered by the Intel B760 chipset, it features a Hybrid 6+1+1 Phases Digital VRM Solution with solid power delivery to ensure stable CPU clocks under gaming and multitasking workloads. Equipped with 4 DDR4 DIMM slots supporting up to 128GB of high-speed system RAM, Dual PCIe 4.0 x4 M.2 connectors, multiple display outputs (HDMI, DisplayPort, D-Sub), and Q-Flash Plus BIOS updating, the B760M D3HP DDR4 delivers an efficient foundation for office, productivity, and budget gaming builds.

Key features:

Hybrid 6+1+1 Phase VRM Design: Digital PWM controller and Low RDS(on) MOSFETs deliver precise voltage regulation to Intel Core i3, i5, and i7 processors.
Quad DDR4 DIMM Memory Support: Provides 4 RAM slots for easy memory expansion up to 128GB with support for Extreme Memory Profile (XMP) modules.
Dual PCIe 4.0 x4 M.2 NVMe Storage: Enables high-speed solid-state drive performance for quick OS boot times and rapid application launching.
Q-Flash Plus Button: Allows users to flash and update the motherboard BIOS directly using a USB thumb drive without installing a CPU, memory, or graphics card.
Smart Fan 6 Cooling System: Features multiple onboard temperature sensors and hybrid fan headers with FAN STOP zero-RPM acoustic control.

specs:

Brand	Gigabyte
Model	Gigabyte B760M D3HP DDR4
Product Number	9MB76M3P4-00-G10
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors \| L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
Memory	4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Memory Frequency	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
Memory Features	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz \| 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz \| 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz (Graphics specifications may vary depending on CPU support.) // Support for up to triple-display at the same time
Expansion Slots (CPU)	1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Expansion Slots (Chipset)	2x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage (CPU)	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage (Chipset)	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Storage (SATA)	4 x SATA 6Gb/s connectors
RAID Support	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (Chipset)	1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header // 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) // 2x USB 2.0/1.1 ports on the back panel
USB (Chipset+USB 2.0 Hub)	4x USB 2.0/1.1 ports available through the internal USB headers
Audio	Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out
Ethernet	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Internal I/O Connectors	1 x 24-pin ATX main power connector // 1 x 8-pin ATX 12V power connector // 1 x CPU fan header // 3 x system fan headers // 1 x addressable LED strip header // 1 x RGB LED strip header // 2 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x USB Type-C® header, with USB 3.2 Gen 1 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) // 1 x serial port header // 1 x parallel port header // 1 x S/PDIF Out header // 1 x Q-Flash Plus button // 1 x reset jumper // 1 x Clear CMOS jumper
Back Panel I/O Ports	2 x USB 2.0/1.1 ports // 1 x PS/2 keyboard/mouse port // 1 x D-Sub port // 1 x DisplayPort // 1 x HDMI port // 3 x USB 3.2 Gen 1 ports // 1 x RJ-45 port // 3 x audio jacks
BIOS	1x 128 Mbit flash \| Use of licensed AMI UEFI BIOS \| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features	Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version)
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control
Operating System	Support for Windows 11 64-bit \| Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4 x 24.4cm
Resources	https://www.gigabyte.com/Motherboard/B760M-D3HP-DDR4/sp

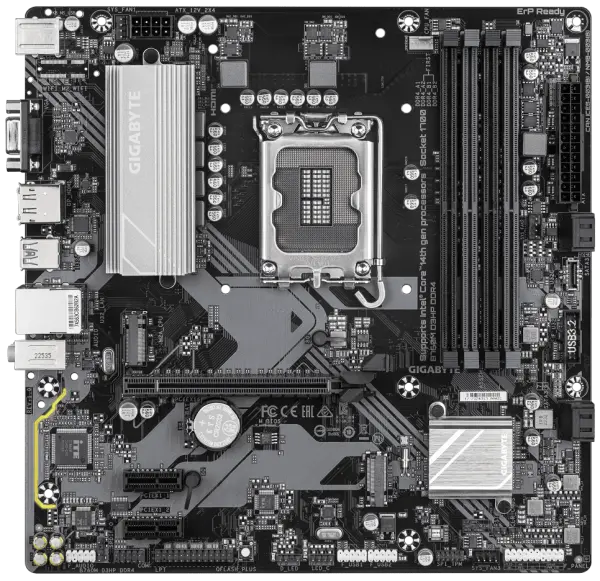

Gigabyte B760M D3HP DDR4 LGA 1700 Micro-ATX Motherboard
