*Brand*	*Gigabyte*
*Model*	*Gigabyte B760M DS3H WIFI6E GEN5*
*Product Number*	*9MB76MS65-00-G10 // 4719331872809*
*CPU*	*LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
*Chipset*	*Intel® B760 Express Chipset*
*BIOS*	*1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0*
*Memory*	*4x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity) of system memory*
*Memory Frequency*	14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules // 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules
*Memory Features*	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
*Graphics*	Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz // 1x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz // 1x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
*Expansion Slots (CPU)*	*1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16*
*Expansion Slots (Chipset)*	*2x PCI Express x1 slots, supporting PCIe 3.0 and running at x1*
*Expansion Slots Compatibility*	*The PCIEX16 slot can only support a graphics card or an NVMe SSD.*
*Storage M.2 (CPU)*	*1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
*Storage M.2 (Chipset)*	*1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)*
*Storage (SATA)*	*4x SATA 6Gb/s connectors*
*RAID Support*	*RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices*
*USB*	Chipset: 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2x USB 2.0/1.1 ports on the back panel // Chipset+USB 2.0 Hub: 4x USB 2.0/1.1 ports available through the internal USB headers
*Audio*	*Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out*
*Ethernet*	*Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)*
*WIFI & Bluetooth*	*Intel® Wi-Fi 6E AX210: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands // BLUETOOTH 5.3 //Support for 11ax 160MHz wireless standard*
*Internal I/O Connectors*	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector// 1x CPU fan header // 3x system fan headers // 2x addressable RGB Gen2 LED strip headers // 1x RGB LED strip header // 2x M.2 Socket 3 connectors // 4x SATA 6Gb/s connectors // 1x front panel header // 1x front panel audio header // 1x USB 3.2 Gen 1 header // 2x USB 2.0/1.1 headers // 1x Trusted Platform Module header // 1x S/PDIF Out header // 1x Q-Flash Plus button // 1x reset jumper // 1x Clear CMOS jumper
*Back Panel I/O Ports*	2x USB 2.0/1.1 ports // 1x PS/2 keyboard/mouse port // 2x antenna connectors (2T2R) // 1x HDMI port // 2x DisplayPorts // 3x USB 3.2 Gen 1 ports // 1x USB Type-C® port, with USB 3.2 Gen 2 support // 1x RJ-45 port // 3x audio jacks
*Features*	*Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup*
*Bundled Software*	*Norton® Internet Security (OEM version)*
*I/O Controller*	*iTE® I/O Controller Chip*
*H/W Monitoring*	*Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control*
*Operating System*	*Support for Windows 11 64-bit // Support for Windows 10 64-bit*
*Form Factor*	*Micro ATX Form Factor; 24.4x22.5cm*

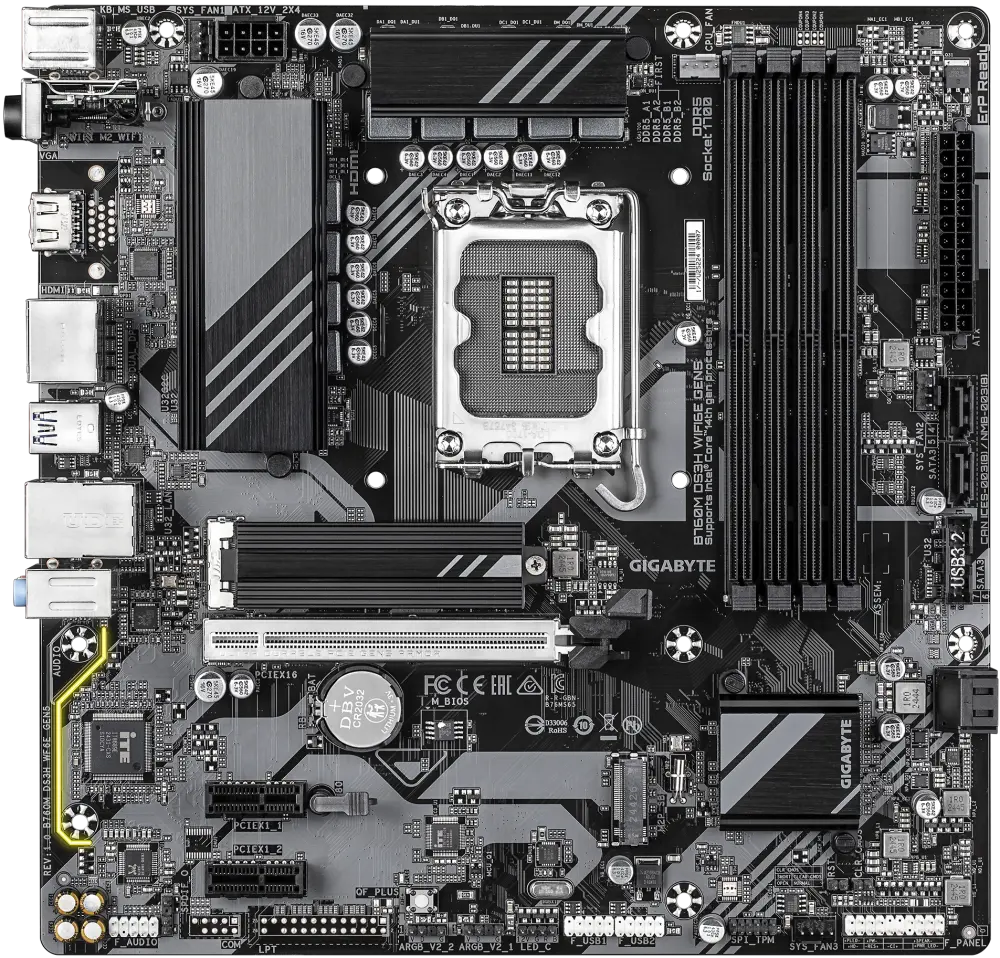

Gigabyte B760M DS3H WIFI6E GEN5 LGA1700 M-ATX Motherboard
