*Brand*	*Gigabyte*
*Model*	*Gigabyte B760M GAMING WIFI6 PLUS GEN5*
*Product Number*	*9MB76MGF5-00G-10 // 4719331872908*
*CPU*	*LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
*Chipset*	*Intel® B760 Express Chipset*
*BIOS*	*1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0*
*Memory*	*2x DDR5 DIMM sockets supporting up to 128GB (64GB single DIMM capacity) of system memory*
*Memory Frequency*	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
*Memory Features*	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
*Graphics*	Integrated Graphics Processor-Intel® HD Graphics support: 1x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz - 1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz - 1x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz // Support for up to triple-display at the same time
*Expansion Slots (CPU)*	*1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16*
*Expansion Slots (Chipset)*	*1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1*
*Expansion Slots Compatibility*	*The PCIEX16 slot can only support a graphics card or an NVMe SSD*
*Storage (M.2)*	*CPU: 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) // Chipset: 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)*
*Storage (SATA)*	*4x SATA 6Gb/s connectors*
*RAID Support*	*RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices*
*USB*	Chipset: 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2x USB 2.0/1.1 ports on the back panel // Chipset+USB 2.0 Hub: 4x USB 2.0/1.1 ports available through the internal USB headers
*Audio*	*Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out*
*Ethernet*	*Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)*
*WIFI & Bluetooth*	*Realtek® Wi-Fi 6 RTL8851BE: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard*
*Internal I/O Connectors*	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector// 1x CPU fan header // 3x system fan headers, 2x addressable RGB Gen2 LED strip headers, 1x RGB LED strip header, 2x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header, 1x serial port header, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper
*Back Panel I/O Ports*	2x USB 2.0/1.1 ports, 1x PS/2 keyboard/mouse port, 2x antenna connectors (1T1R), 1x D-Sub port, 1x HDMI port, 1x DisplayPort, 3x USB 3.2 Gen 1 ports, 1x USB Type-C® port, with USB 3.2 Gen 1 support, 1x RJ-45 port, 3x audio jacks
*Features*	*Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup*
*Bundled Software*	*Norton® Internet Security (OEM version)*
*I/O Controller*	*iTE® I/O Controller Chip*
*H/W Monitoring*	*Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control*
*Operating System*	*Support for Windows 11 64-bit // Support for Windows 10 64-bit*
*Form Factor*	*Micro ATX Form Factor; 24.4x22.5cm*

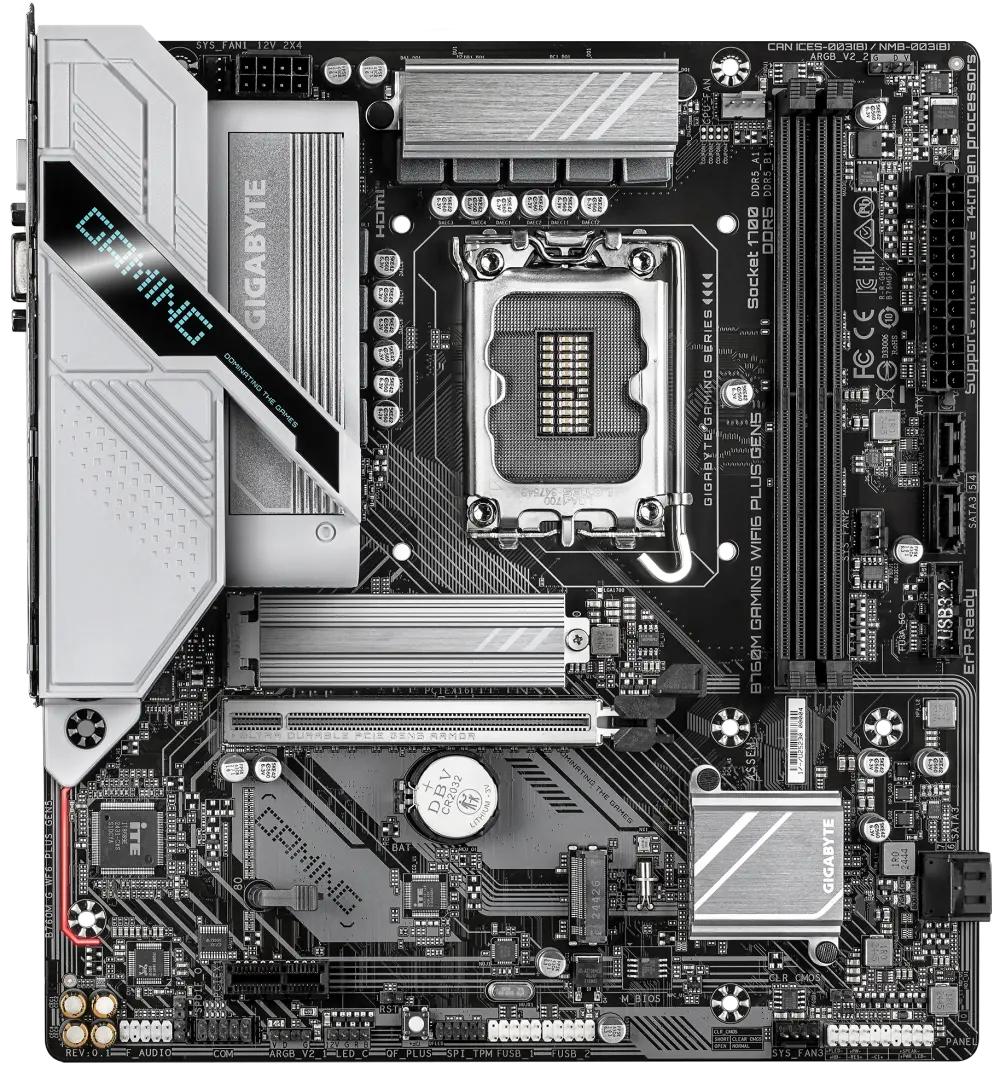

Gigabyte B760M GAMING WIFI6 PLUS GEN5 LGA1700 Motherboard
