*Model*	*GIGABYTE B850 GAMING WIFI6*
*CPU*	*AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors*
*Chipset*	*AMD B850*
*BIOS*	*1 x 256 Mbit flash // Use of licensed AMI UEFI BIOS // PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0*
*Memory*	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. // 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory // Dual channel memory architecture // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for AMD EXtended Profiles for Overclocking (AMD EXPO™)
*Graphics*	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1x DisplayPort, supporting a maximum resolution of 3840x2160@144Hz - 1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
*Expansion Slots*	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode // AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode // AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode // Chipset: 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
*Storage*	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs // 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs // 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs // 4 x SATA 6Gb/s connectors // RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices // RAID 0, RAID 1, and RAID 10 support for SATA storage devices
*USB*	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel // Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel // Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
*Audio*	*Realtek® Audio CODEC - High Definition Audio 2/4/5.1/7.1-channel*
*Ethernet*	*Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)*
*Wireless & Bluetooth*	*Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard*
*Internal I/O Connectors*	1 x 24-pin ATX main power connector // 1 x 8-pin ATX 12V power connector // 1 x 4-pin ATX 12V power connector // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 3 x system fan headers // 1 x system fan/water cooling pump header // 3 x addressable RGB Gen2 LED strip headers // 1 x RGB LED strip header // 3 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x USB Type-C® header, with USB 3.2 Gen 1 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) // 1 x reset jumper // 1 x Clear CMOS jumper
*Back Panel I/O Ports*	1 x DisplayPort // 1 x HDMI port // 1 x Q-Flash Plus button // 4 x USB 2.0/1.1 ports // 1 x PS/2 keyboard/mouse port // 2 x USB 3.2 Gen 2 Type-A ports (red) // 1 x USB Type-C® port, with USB 3.2 Gen 1 support // 1 x RJ-45 port // 2 x USB 3.2 Gen 1 ports // 2 x antenna connectors (2T2R) // 3 x audio jacks
*Features*	*Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup*
*Special Features*	*Infinite Memory Performance // X3D Turbo Mode // D5 Bionic Corsa // Steady Power // Comprehensive Thermal // Hassle-free Assembly*
*Software Features*	*Norton® Internet Security (OEM version) // LAN bandwidth management software*
*I/O Controller*	*iTE® I/O Controller Chip*
*H/W Monitoring*	*Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control*
*Operating System*	*Support for Windows 11 64-bit // Support for Windows 10 64-bit*
*Form Factor*	*ATX Form Factor; 30.5cm x 24.4cm*

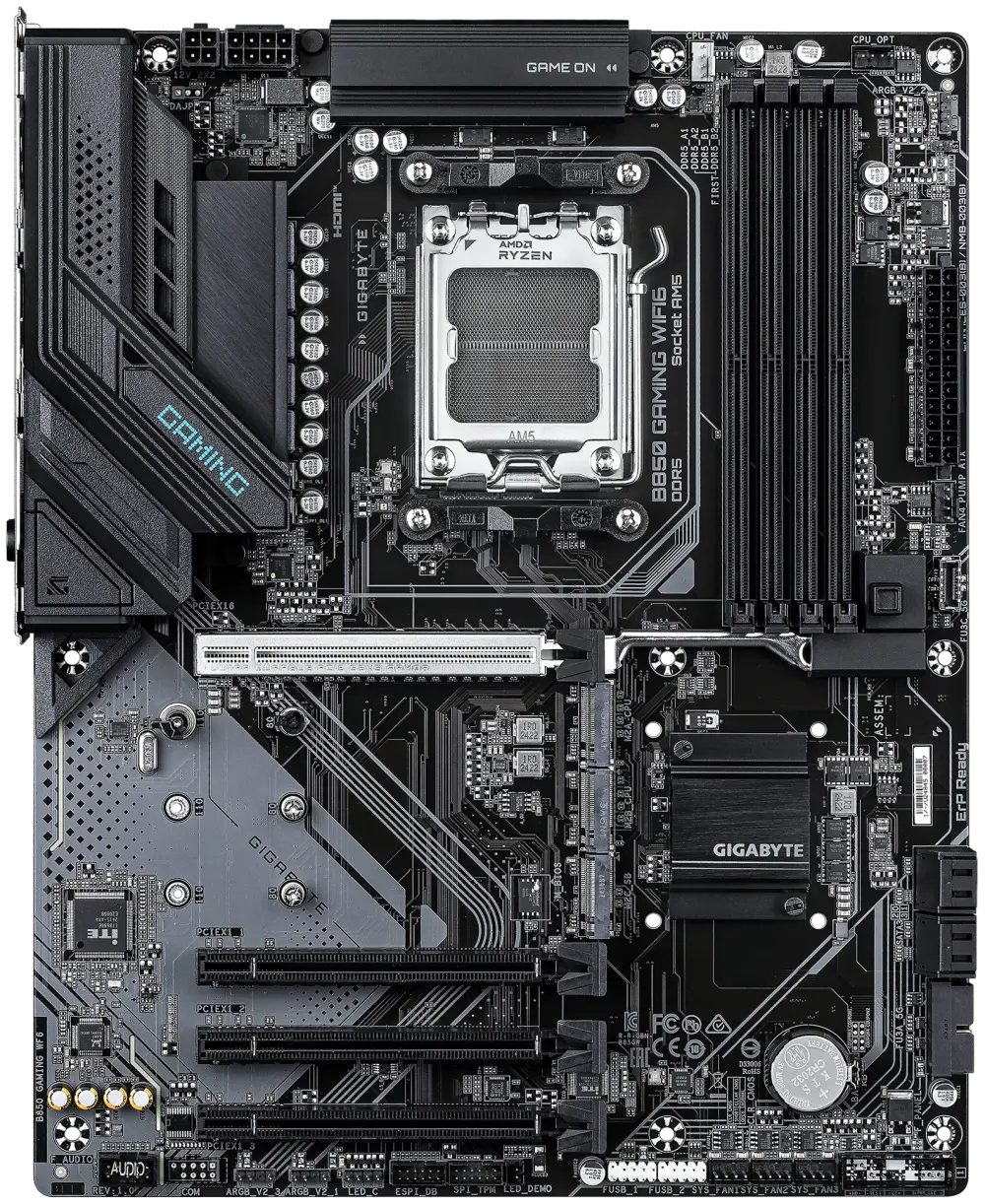

Gigabyte B850 GAMING WiFi6 AM5 ATX Motherboard

Product Description
