Model:	B860M AORUS PRO WIFI7
CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processor // L3 cache varies with CPU
Chipset	Intel ® B860 Express Chipset
BIOS	1 x 256 Mbit flash // Use of licensed AMI UEFI BIOS // PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Memory	Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules. // 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory // Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules // Support CUDIMM memory module // (The CPU and memory configurationmay affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. // Chipset: 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version // 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version // 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3. // 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz - Support for HDMI 1.4 version. // (Graphics specifications may vary depending on CPU support.) // Support for up to quad-display at the same time
Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) // Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors // RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: 1 x USB4® USB Type-C® port on the back panel // Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header // Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel // Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Back Panel I/O Ports	1 x DisplayPort (Note) // 1 x HDMI port (Note) // 1 x USB4® USB Type-C® port (DisplayPort (Note)) // 2 x USB 3.2 Gen 2 Type-A ports (red) // 4 x USB 3.2 Gen 1 ports // 4 x USB 2.0/1.1 ports // 1 x RJ-45 port // 2 x antenna connectors (2T2R) // 2 x audio jacks // 1 x optical S/PDIF Out connector
Audio	Realtek® Audio CODEC // High Definition Audio: 2/4/5.1/7.1-channel - You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. // Support for S/PDIF Out
Internal I/O Connectors	1 x 24-pin ATX main power connector // 2 x 8-pin ATX 12V power connectors // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 3 x system fan headers // 1 x system fan/water cooling pump headers // 3 x addressable RGB Gen2 LED strip headers // 1 x RGB LED strip header // 3 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x HDMI port // 1 x USB Type-C® header, with USB 3.2 Gen 2 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) // 1 x Q-Flash Plus button // 2 x Thunderbolt™ add-in card connectors // 1 x power button // 1 x reset button // 1 x reset jumper // 1 x Clear CMOS jumper.
Special Features	Support for GIGABYTE Control Center (GCC): Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup
Software Features	Norton® Internet Security (OEM version) // LAN bandwidth management software
Ethernet	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & Bluetooth	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands // BLUETOOTH 5.4 // Support for 11be 160MHz wireless standard
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control

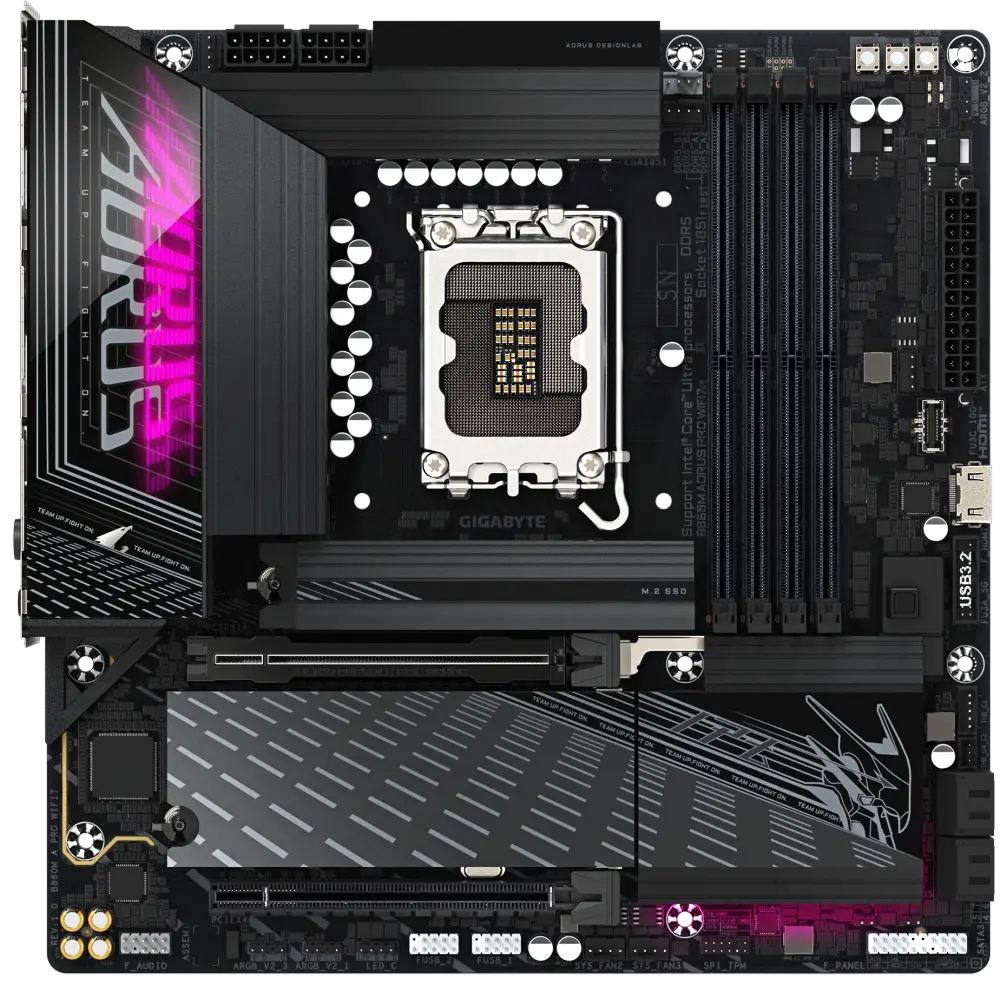

Gigabyte B860M AORUS PRO WIFI7 – LGA 1851, Intel B860 Chipset, DDR5, BLUETOOTH 5.4, USB4, Micro-ATX Motherboard
