Brand	Gigabyte
Model	Gigabyte B860M EAGLE WIFI6 V2
Product Number	9MB86MEW2-00-G10
CPU	LGA1851 socket: Support for Intel ® Core™ Ultra Processors // L3 cache varies with CPU
Chipset	Intel ® B860 Express Chipset
Memory	2x DDR5 DIMM sockets supporting up to 128GB (64GB single DIMM capacity) of system memory
Memory Frequency	Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
Memory Features	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Expansion Slots (CPU)	1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots (Chipset)	1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots Compatibility	The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Storage	Supports 2x M.2 slots and // 4x SATA 6Gb/s ports
Storage (CPU)	1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Storage (Chipset)	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4x SATA 6Gb/s connectors
RAID Support	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (Chipset)	1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3x USB 2.0/1.1 ports on the back panel
USB (Chipset+USB 2.0 Hub)	4x USB 2.0/1.1 ports available through the internal USB headers
Audio	Realtek® Audio CODEC: High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out
Ethernet	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIFI & Bluetooth	Realtek® Wi-Fi 6 RTL8851BE: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Internal I/O Connectors	1 x 24-pin ATX main power connector // 1 x 8-pin ATX 12V power connector // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 1 x system fan header // 1 x system fan/water cooling pump header // 3 x addressable RGB Gen2 LED strip headers // 2 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x S/PDIF Out header // 1 x USB Type-C® header, with USB 3.2 Gen 1 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) // 1 x serial port header // 1 x Q-Flash Plus button // 1 x reset jumper // 1 x Clear CMOS jumper
Back Panel I/O Ports	1 x PS/2 keyboard/mouse port // 1 x HDMI port // 1 x DisplayPort // 3 x USB 3.2 Gen 1 ports // 3 x USB 2.0/1.1 ports // 2 x antenna connectors (2T2R) // 1 x RJ-45 port // 3 x audio jacks
Features	Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) // LAN bandwidth management software
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control
Operating System & Drivers	Windows 11 64-bit - Windows 10 64-bit // https://www.gigabyte.com/Motherboard/B860M-EAGLE-WIFI6-V2/support
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	MicroATX Form Factor; 24.4x22.5cm

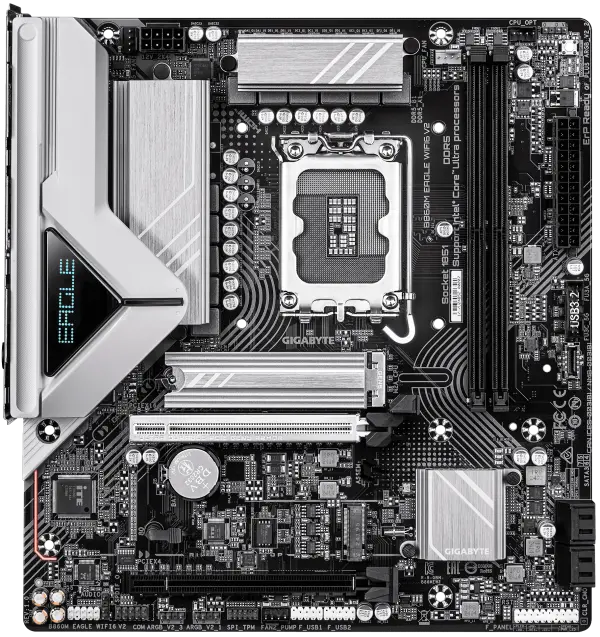

GIGABYTE B860M EAGLE WIFI6 V2
