Next-Gen Architecture: NVIDIA Blackwell Innovation Meets Advanced Triple-Fan Cooling

Step into the next generation of visual fidelity with the Gigabyte GeForce RTX 5060 EAGLE MAX OC 8G graphics card. Engineered on the revolutionary NVIDIA Blackwell architecture, this card redefines mid-tier performance boundaries by introducing ultra-efficient 5th-Gen Tensor Cores and 4th-Gen Ray Tracing Cores. Equipped with a rapid 8GB of next-generation GDDR7 VRAM operating over a structured 128-bit memory bus interface, this graphics processor eliminates texture streaming limitations, offering fluid responsiveness for high-framerate competitive gaming and intensive neural rendering applications.

This factory-overclocked edition pushes its limits with a 2550 MHz Boost Clock, providing a noticeable performance boost over standard reference designs. To maintain stability under sustained rendering configurations, Gigabyte has outfitted the card with its elite WINDFORCE cooling system. Utilizing three unique alternate-spinning Hawk fans, high-performance composite copper heat pipes, an extended screen cooling path, and server-grade thermal conductive gel, heat dissipation is managed efficiently. The card also includes a Dual BIOS switch, allowing you to cycle instantly between raw performance and ultra-quiet silent profiles depending on your workload needs.

Built with durability in mind, the card features a structural backplate that shields sensitive surface-mount components from flexing or twisting over time. Equipped with high-speed connectivity options, including three DisplayPort 2.1b outputs and a dedicated HDMI 2.1b port, it offers robust compatibility with modern high-refresh displays. Requiring only a standard single 8-pin PCIe power connector and a recommended 550W power supply, it serves as an efficient system upgrade option. Secure your next-generation setup today with localized warranty protection at Delta-Computer.net.

Specs:

*Brand*	*Gigabyte*
*Model*	*GeForce RTX™ 5060 EAGLE MAX OC 8G*
*Product Number*	*GV-N5060EAGLEMAX OC-8GD // 9VN5060EXO-00-G10*
*Graphic Engine*	*GeForce RTX™ 5060*
*Bus Standard*	*PCI Express 5.0*
*Engine Clock*	*2550MHz (Reference card : 2497MHz)*
*CUDA Core*	*3840*
*Video Memory*	*8GB GDDR7*
*Memory Speed*	*1750MHz, 28Gbps effective*
*Memory Interface*	*128bit*
*Memory Bandwidth*	*448.0GB/s*
*Tensor Compute Performance*	*FP16 (half): 19.58 TFLOPS (1:1) // FP32 (float): 19.58 TFLOPS // FP64 (double): 306.0 GFLOPS (1:64)*
*DirectX*	*DirectX 12 API*
*OpenGL*	*OpenGL®4.6*
*Vulkan API*	*Version: 1.4*
*Resolution*	*Digital Max Resolution 7680x4320*
*Interface*	*1x HDMI 2.1b // 3x DisplayPort 2.1b*
*Maximum Display Support*	4
*NVlink/ Crossfire Support*	No
*Features*	*WINDFORCE cooling system // Hawk fan // Server-grade Thermal conductive gel // Dual BIOS (Performance/Silent) // Reinforced structure*
*Accessories*	*Quick guide*
*PCB Form*	*ATX*
*Recommended PSU*	*550W*
*Power Connectors*	*1x 8-pin*
*Slot*	*2 Slot*
*Dimensions(LxWxH)*	*281x115x40mm*

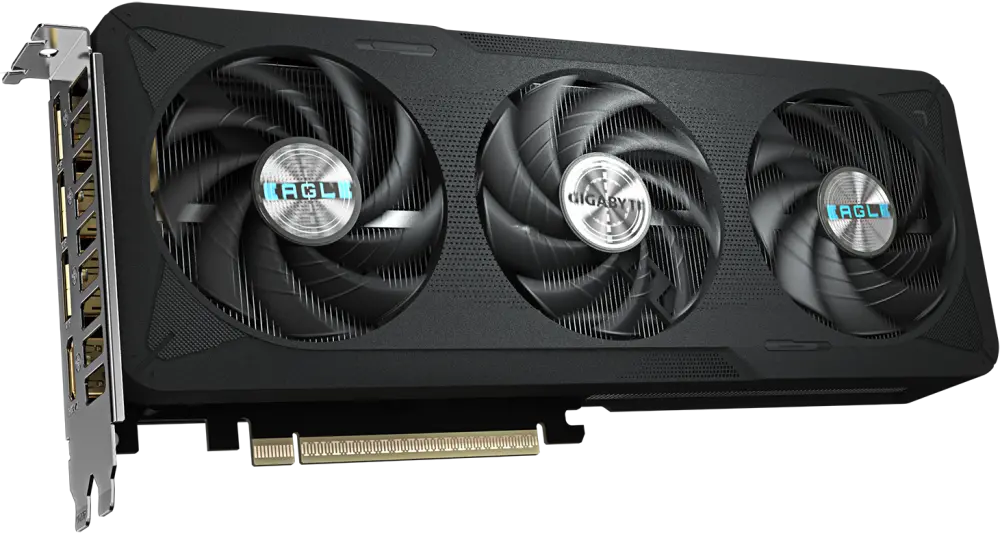

Gigabyte GeForce RTX 5060 EAGLE MAX OC 8GB GDDR7 Graphics Card

Product Description
