Essential Core Foundation: Solid Power, PCIe 4.0 Speed, and Smart Cooling Layouts

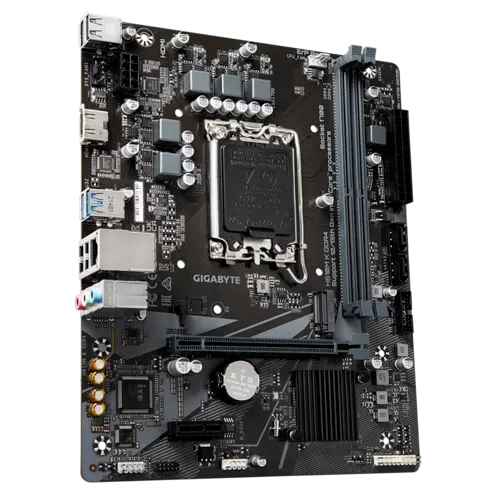

Deploy a highly reliable, cost-efficient foundation for your desktop build with the Gigabyte H610M K DDR4 Micro-ATX motherboard. Meticulously engineered to drive performance without unnecessary cost, this compact board features a native LGA1700 socket to offer full out-of-the-box compatibility with Intel® Core™ 14th, 13th, and 12th Generation processors. Utilizing a clean 3+1+1 hybrid digital power phase configuration combined with anti-sulfur resistor protections, it provides steady, long-term electrical delivery to your hardware components.

Streamlined data pipelines give your essential gaming hardware room to breathe. The board features dual-channel DIMM slots supporting up to 64GB of ultra-reliable DDR4 3200MHz memory. Graphics performance is completely unthrottled thanks to a high-bandwidth PCIe 4.0 x16 expansion slot. Storage configurations remain quick and responsive via an onboard NVMe PCIe 3.0 x4 M.2 slot, letting you bypass slow legacy SATA lines for your primary operating system and gaming drive layouts.

Intelligent design points extend to your actual physical operating conditions. Backed by Smart Fan 6 technology, the board links multiple internal hardware thermal sensors to hybrid fan headers with auto-stop functions, ensuring whisper-quiet idling and targeted airflow when your system is under heavy load. Complete with a Realtek Gigabit LAN chip for lag-free networking and high-fidelity audio caps with a dedicated noise guard, it stands as an excellent framework for system integrators. Claim your budget build foundation today with a local warranty at Delta-Computer.net.

specs:

Brand	Gigabyte
Model	Gigabyte H610M K
CPU	*LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors /L3 cache varies with CPU**
Chipset	Intel® H610 Express Chipset
BIOS	1x 128 Mbit flash / Use of licensed AMI UEFI BIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6x18.5cm
LAN	Realtek® GbE LAN chip (1Gbps/100Mbps)
Operating System	Support for Windows 11 64-bit / Support for Windows 10 64-bit
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules / 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory / Dual channel memory architecture / Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) / Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules / Support for Extreme Memory Profile (XMP) memory modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz / * Support for HDMI 2.1 version and HDCP 2.3. / * Support native HDMI 2.1 TMDS compatible ports
Storage	Chipset: 1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) / 2x SATA 6Gb/s connectors
I/O Controller	iTE® I/O Controller Chip
USB	Chipset: 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) / 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1x 24-pin ATX main power connector /1x 8-pin ATX 12V power connector / 1x CPU fan header / 1x system fan header / 1x M.2 Socket 3 connector / 2x SATA 6Gb/s connectors / 1x front panel header / 1x front panel audio header / 1x USB 3.2 Gen 1 header / 1x USB 2.0/1.1 header / 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) / 1x Clear CMOS jumper
Back Panel I/O Ports	1x HDMI port / 2x USB 3.2 Gen 1 ports / 4x USB 2.0/1.1 ports / 1x RJ-45 port / 3x audio jacks
Audio	Realtek® Audio CODEC / High Definition Audio / 2/4/5.1/7.1-channel
Unique Features	Support for APP Center / @BIOS / EasyTune /Smart Backup / System Information Viewer / Support for Q-Flash / Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) / LAN bandwidth management software
Expansion Slots	CPU: 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 // Chipset: 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
H/W Monitoring	Voltage detection / Temperature detection / Fan speed detection / Water cooling flow rate detection / Fan fail warning / Fan speed control // * Whether the fan speed control function is supported will depend on the cooler you install.

Gigabyte H610M K DDR4 LGA1700 Micro-ATX Motherboard

Product Description
