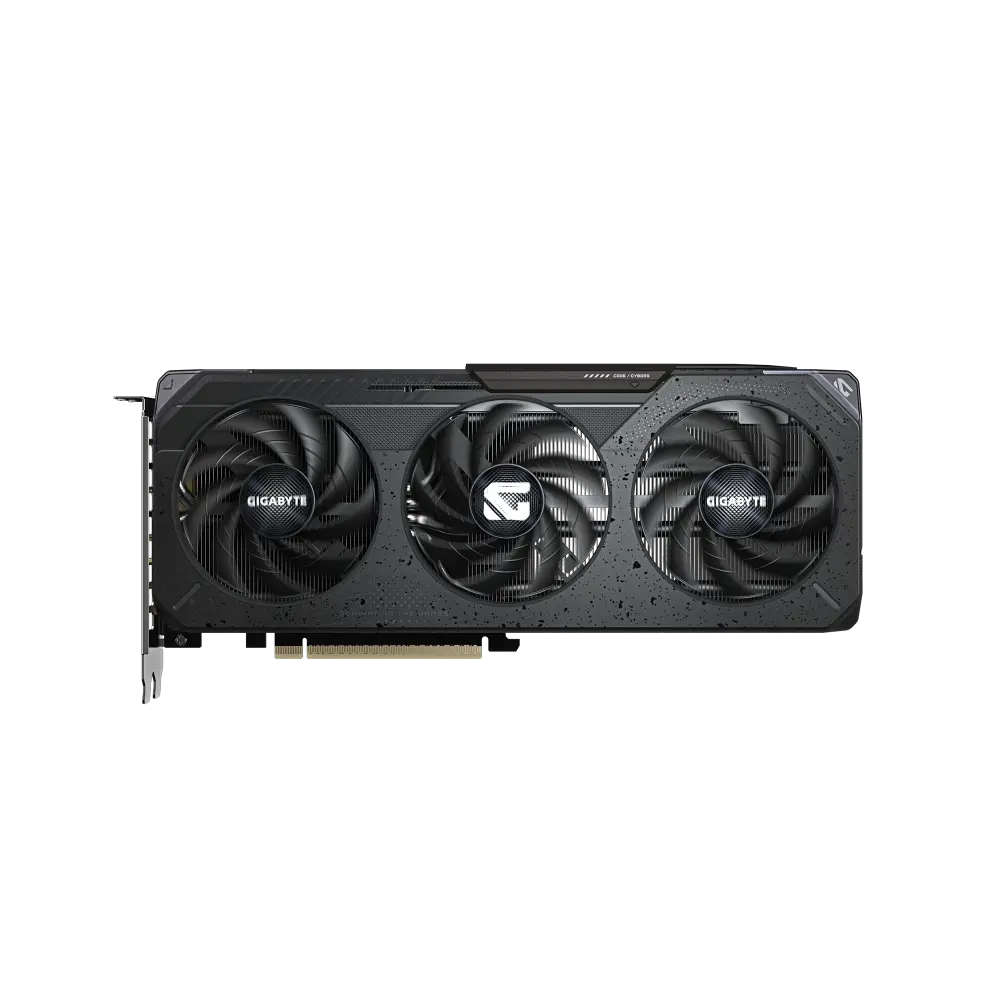

Next-Gen 1080p & 1440p Gaming Power: GIGABYTE GeForce RTX 5060 GAMING OC 8GB:

The GIGABYTE GeForce RTX™ 5060 GAMING OC 8GB (9VN5060GO-00G10) delivers elite gaming performance, advanced thermal efficiency, and high-speed memory for modern desktop builds. Powered by the groundbreaking NVIDIA architecture with 8GB of ultra-fast GDDR7 VRAM operating at 28 Gbps across a 128-bit memory interface, this factory-overclocked graphics card reaches boost clock speeds up to 2595 MHz. Built on the high-bandwidth PCIe 5.0 bus interface, it provides full hardware support for NVIDIA DLSS 4 multi-frame generation, real-time ray tracing, and AI-accelerated rendering.

Thermal performance is managed by GIGABYTE’s signature WINDFORCE cooling system, featuring aerodynamic Hawk Fans with alternate spinning, server-grade thermal conductive gel on critical components, a direct-touch copper plate, composite copper heat pipes, and a durable metal backplate for structural rigidity.

Key features:

GDDR7 Memory Architecture: Outfitted with 8GB of next-generation GDDR7 VRAM at 28 Gbps to deliver massive bandwidth increases for high-resolution texture streaming and fast frame generation.
WINDFORCE Thermal Solution: Utilizes three specialized Hawk fans with aerodynamic blade contours and alternate spinning technology to reduce turbulence and maximize air pressure.
Server-Grade Thermal Conductive Gel: Replaces traditional thermal pads with high-performance deformable gel on VRAM and MOSFETs to optimize heat transfer and long-term durability.
PCIe 5.0 & DisplayPort 2.1b Support: Fully compatible with next-generation motherboard data lanes and ultra-high refresh rate multi-monitor setups.
Dual BIOS & RGB Customization: Switch between Performance and Silent modes instantly, while customizing RGB lighting effects via GIGABYTE Control Center.

specs:

Brand	GIGABYTE
Model	GIGABYTE GeForce RTX™ 5060 GAMING OC 8G
Model Number	GV-N5060GAMING-OC-8GD // 9VN5060GO-00G10
Graphic Engine	GeForce RTX™ 5060
Bus Standard	PCI Express 5.0
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Video Memory	8 GB GDDR7
Engine Clock	2595 MHz (Reference card : 2497MHz)
CUDA Core	3840
Memory Speed	28 Gbps
Memory Interface	128 bit
Memory Bandwidth	448.0 GB/s
Resolution	Digital Max Resolution 7680 x 4320
Interface	3x DisplayPort 2.1b // 1x HDMI 2.1b
NVlink/ Crossfire Support	No
Maximum Display Support	4
Accessories	Quick guide
PCB Form	ATX
Weight	800g
Dimensions	L=281 W=119 H=40
Recommended PSU	500W
Power Connectors	1x 8 Pin
Slot	2 Slot

GIGABYTE GeForce RTX 5060 GAMING OC 8GB GDDR7 Graphics Card

Product Description
