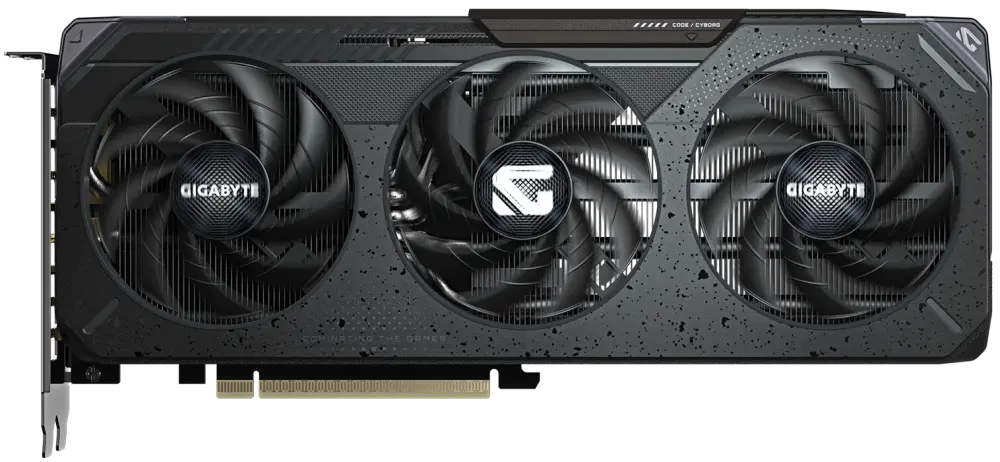

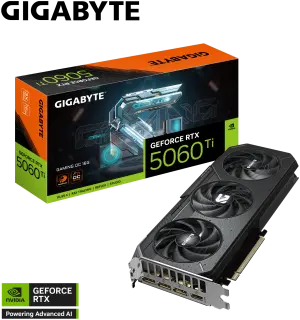

High-Frame-Rate 1440p Gaming & AI Power: Gigabyte GeForce RTX 5060 Ti GAMING OC 16GB GDDR7:

The Gigabyte GeForce RTX™ 5060 Ti GAMING OC 16GB GDDR7 (GV-N506TGAMING OC-16GD) combines high-efficiency thermal performance with next-gen rendering power for competitive 1440p and 1080p gaming. Driven by NVIDIA’s Blackwell architecture with 4608 CUDA Cores and 16GB of ultra-fast GDDR7 VRAM running on a 128-bit memory interface at 28 Gbps, this factory-overclocked GPU reaches boost clock speeds up to 2647 MHz. Built on the high-speed PCIe 5.0 bus interface, it provides full hardware acceleration for NVIDIA DLSS 4, full ray tracing with neural rendering, ninth-generation NVENC streaming, and NVIDIA ACE AI workflows. Thermal dissipation is managed by the signature WINDFORCE cooling system, featuring Hawk fans with alternate spinning, server-grade thermal conductive gel, direct-touch composite copper heat pipes, extended screen cooling, RGB Fusion lighting, and a hardware Dual BIOS switch.

Key features:

Advanced WINDFORCE Thermal Engineering: Integrates Hawk fan blades that increase static air pressure by up to 53.6%, alternate spinning fans to eliminate air turbulence, direct-touch copper heat pipes, and screen cooling for optimal airflow.
16GB High-Speed GDDR7 VRAM: Massive 16GB memory capacity running at 28 Gbps guarantees smooth texture loading in VRAM-demanding modern AAA games, ray-traced workloads, and AI content creation.
Server-Grade Thermal Conductive Gel: Replaces traditional thermal pads on VRAM and MOSFETs with highly deformable server-grade thermal gel to ensure maximum heat dissipation over long gaming sessions.
Onboard Dual BIOS Switch: Effortlessly switch between "Performance Mode" for maximum cooling efficiency and "Silent Mode" for quiet operation without opening software.
RGB Fusion & Metal Backplate: Features customizable RGB lighting synchronized via Gigabyte Control Center and a rigid protection metal backplate that enhances structural integrity while assisting passive heat dissipation.

specs:

Brand	Gigabyte
Model	Gigabyte GeForce RTX™ 5060 Ti GAMING OC 16G (GV-N506TGAMING-OC-16GD)
Product Number	9VN506TGO-00-G10
Graphic Engine	GeForce RTX™ 5060 Ti
Bus Standard	PCI Express 5.0
Engine Clock	2647MHz (Reference card :2572MHz)
CUDA Core	4608
Video Memory	16GB GDDR7
Memory Speed	1750MHz // 28Gbps effective
Memory Interface	128bit
Memory Bandwidth	448.0 GB/s
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Resolution	Digital Max Resolution 7680 x 4320
Interface	*DisplayPort 2.1b 3 // HDMI 2.1b 1*
NVlink/ Crossfire Support	No
Maximum Display Support	4
Accessories	Quick guide
PCB Form	ATX
Dimensions	L=281 W=119 H=40mm
Recommended PSU	650W
Power Connectors	*8 Pin1**
Slot	2 Slot
Weight	1.12 kg
Resources	https://www.gigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD/sp

RTX 5060 Ti GAMING OC 16GB GDDR7 Graphics Card Gigabyte

Product Description
