Compact SFF-Ready 1440p & 4K Gaming GPU with 12GB GDDR7 & WINDFORCE Cooling:

The Gigabyte GeForce RTX 5070 EAGLE OC SFF 12GB GDDR7 (9VN5070EO-00-G10) brings enthusiast-level 1440p and high-refresh 4K gaming to Small Form Factor (SFF) PC builds without thermal compromises. Powered by NVIDIA’s next-generation Blackwell architecture, this factory-overclocked GPU features 12GB of ultra-fast GDDR7 memory across a high-speed interface and full support for DLSS 4 Multi-Frame Generation and 4th Gen Ray Tracing. Built according to NVIDIA SFF-Ready guidelines, the EAGLE OC SFF utilizes Gigabyte's WINDFORCE Triple-Fan Cooling System with alternate spinning fans, direct-touch composite copper heat pipes, and 3D active fans to sustain peak boost clocks in compact ITX and mATX enclosures.

Key Features:

Compact SFF-Ready Form Factor: Meets strict Small Form Factor guidelines for effortless compatibility with tight Mini-ITX cases and compact mid-tower chassis.
12GB High-Speed GDDR7 VRAM: Massive memory bandwidth upgrade delivering smooth frame rates in VRAM-intensive 1440p and 4K AAA titles with maxed-out ray tracing settings.
NVIDIA DLSS 4 & Ray Tracing Cores: Utilizes AI-powered neural rendering and hardware-accelerated ray tracing to boost frame rates while maintaining crisp image fidelity.
WINDFORCE 3X Thermal System: Features three unique blade fans with alternate rotation, composite copper heat pipes touching the GPU directly, and extended screen cooling for maximum airflow dissipation.
PCIe 5.0 Next-Gen Bandwidth: Doubles interface throughput compared to PCIe 4.0, ensuring zero bus bottlenecks when paired with modern high-performance motherboards and CPUs.

specs:

Brand	Gigabyte
Model	GeForce RTX™ 5070 EAGLE OC SFF 12G
Model Number	GV-N5070EAGLE OC-12GD
Graphic Engine	NVIDIA® GeForce RTX™ 5070
Bus Standard	PCI Express 5.0
DirectX	12 Ultimate (12_2)
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Video Memory	12 GB GDDR7
Engine Clock	2587 MHz (Reference card : 2512 MHz)
CUDA Core	6144
Memory Speed	28 Gbps
Memory Interface	192 bit
Memory Bandwidth	672.0 GB/s
Resolution	Digital Max Resolution 7680 x 4320
Interface	DisplayPort 2.1b x3 // HDMI 2.1b x1
NVlink/ Crossfire Support	No
Maximum Display Support	4
Accessories	1. Quick guide // 2. 1x 12V-2x6 to 2x PCIe 8pin adapter
PCB Form	ATX
Recommended PSU	750W
Power Connectors	1x 16 Pin
Slot	2 Slot
Weight	0.99Kg
Dimensions(WxHxL)	120x50x290 mm
Resources	https://www.gigabyte.com/Graphics-Card/GV-N5070EAGLE-OC-12GD/sp

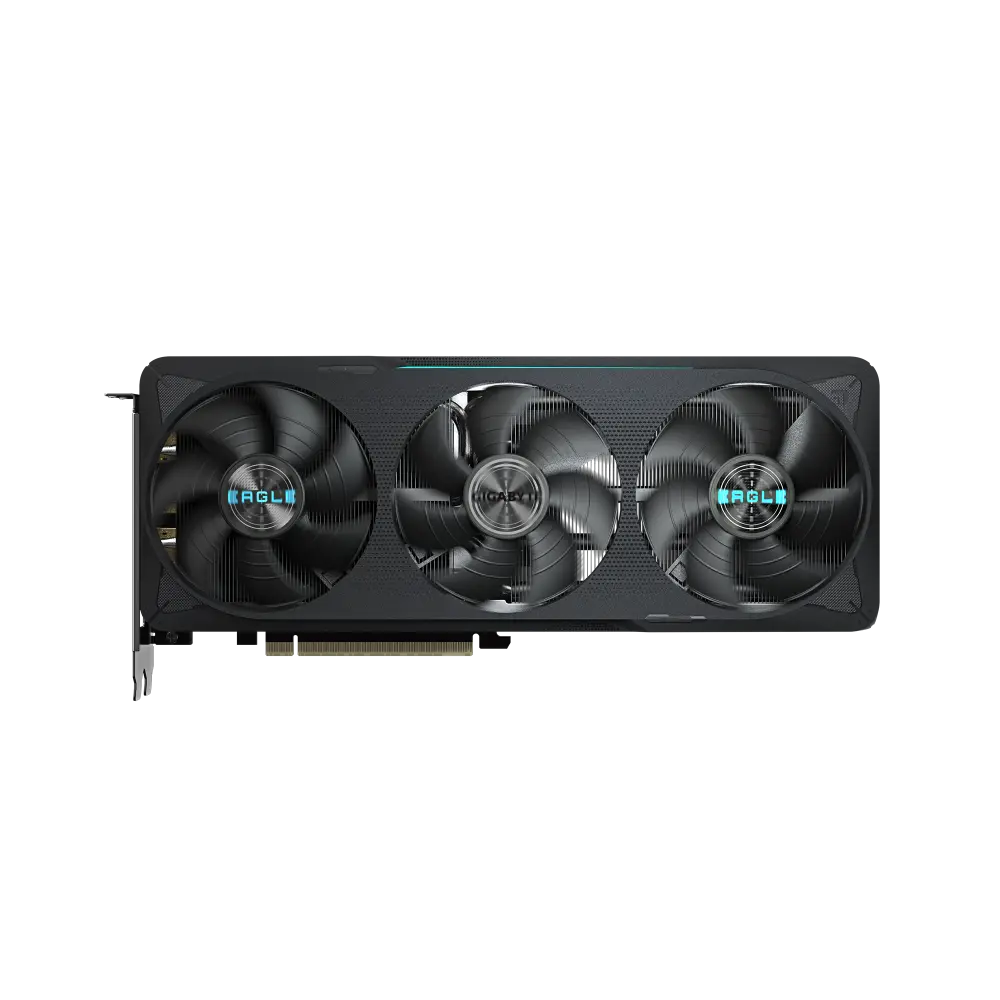

Gigabyte GeForce RTX 5070 EAGLE OC SFF 12GB GDDR7 Graphics Card

Product Description
