High-Performance 1440p & 4K Gaming GPU with WINDFORCE 3X Cooling & 12GB GDDR7:

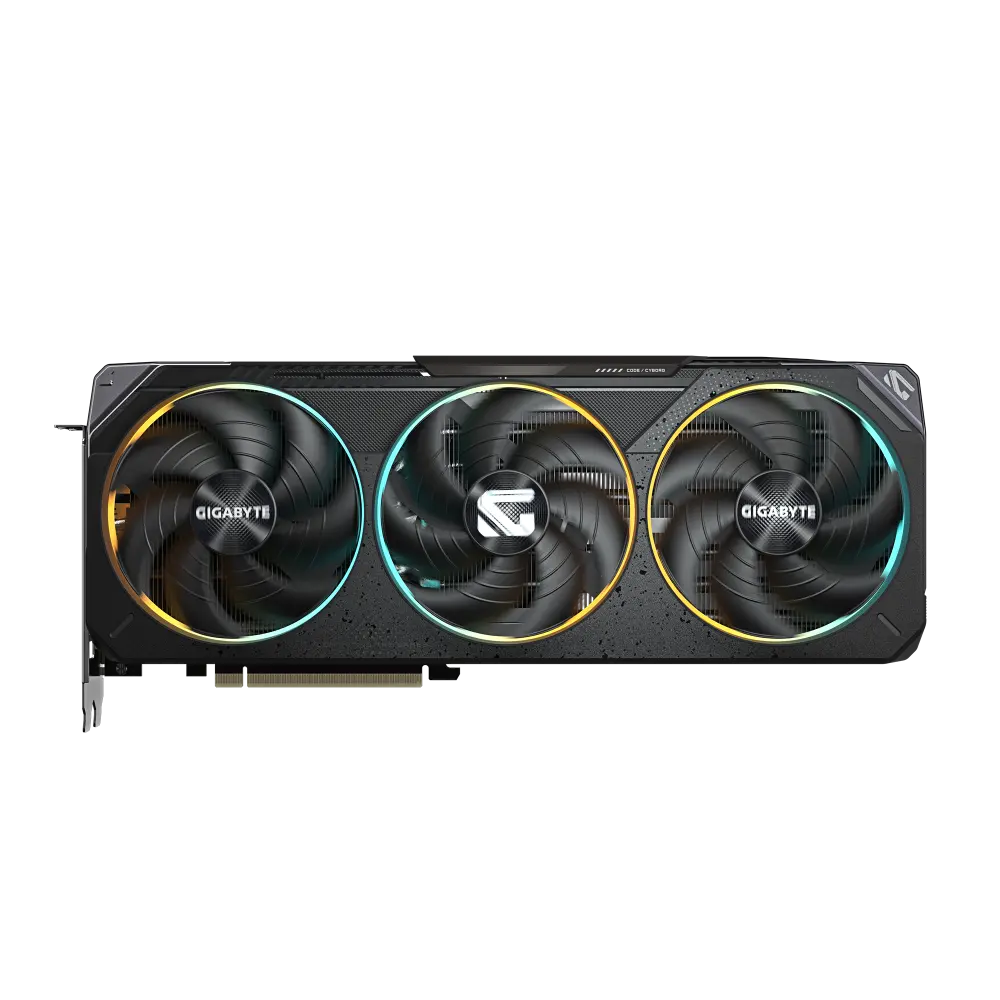

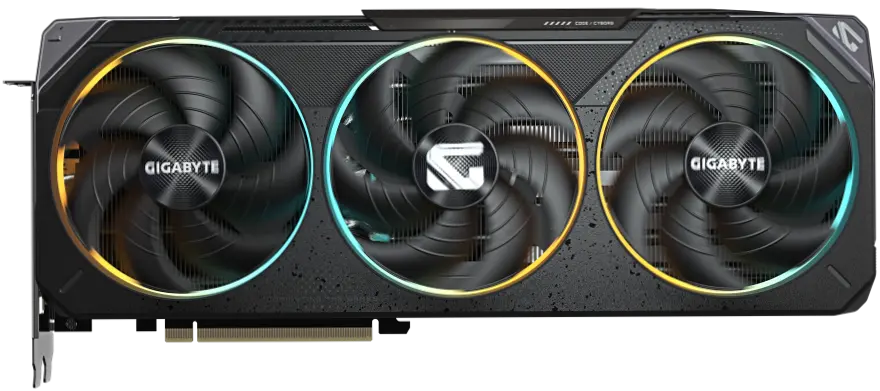

The GIGABYTE GeForce RTX 5070 GAMING OC 12G (GV-N5070GAMING-OC-12GD) is engineered for ultra-smooth 1440p and immersive 4K gaming performance. Powered by NVIDIA’s advanced Blackwell GPU architecture, this factory-overclocked graphics card comes equipped with 12GB of high-speed GDDR7 VRAM, full support for DLSS 4 AI acceleration, and 4th Generation Ray Tracing Cores. Featuring GIGABYTE’s flagship WINDFORCE 3X cooling system, it utilizes three unique blade fans with alternate spinning, direct-touch composite copper heat pipes, 3D Active 0dB Silent Fan technology, and customizable RGB Fusion lighting for thermal performance and style.

Key features:

WINDFORCE 3X Alternate Spinning Fans: Adjacent fans rotate in opposite directions to reduce air turbulence between fan blades, increasing static air pressure through the heatsink.
Direct-Touch Composite Heat Pipes: Pure copper heat pipes make direct contact with the GPU die and VRAM modules to transfer heat rapidly into the aluminum fin array.
3D Active Fan & 0dB Silent Mode: Fans remain off during low-load productivity tasks or media playback, providing silent operation when thermals allow.
Dual BIOS Hardware Toggle: Built-in physical switch lets users select between OC Mode for maximum boost clocks or Silent Mode for quieter acoustics.
Protective Structural Metal Backplate: Reinforced metal backplate strengthens the PCB frame against bending while aiding passive heat dissipation.

specs:

Graphic Engine	GeForce RTX™ 5070
Bus Standard	PCI Express 5.0
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Video Memory	12 GB GDDR7
Engine Clock	2625 MHz (Reference card : 2512 MHz)
CUDA Core	6144
Memory Speed	28 Gbps
Memory Interface	192 bit
Memory Bandwidth	672.0 GB/s
Resolution	Digital Max Resolution 7680 x 4320
Interface	*DisplayPort 2.1b 3 // HDMI 2.1b 1*
NVlink/ Crossfire Support	No
Maximum Display Support	4
Accessories	1. Quick guide // 2. Warranty registration // 3. 1x 12V-2x6 to 2x PCIe 8pin adapter // 4. Versatile VGA holder // 5. Versatile VGA holder manual
PCB Form	ATX
Recommended PSU	750W
Power Connectors	1x 16 Pin
Slot	3 Slot
Dimensions	L=327 W=132 H=56 mm // Weight: 3.40kg
Resources	https://www.gigabyte.com/Graphics-Card/GV-N5070GAMING-OC-12GD/sp
