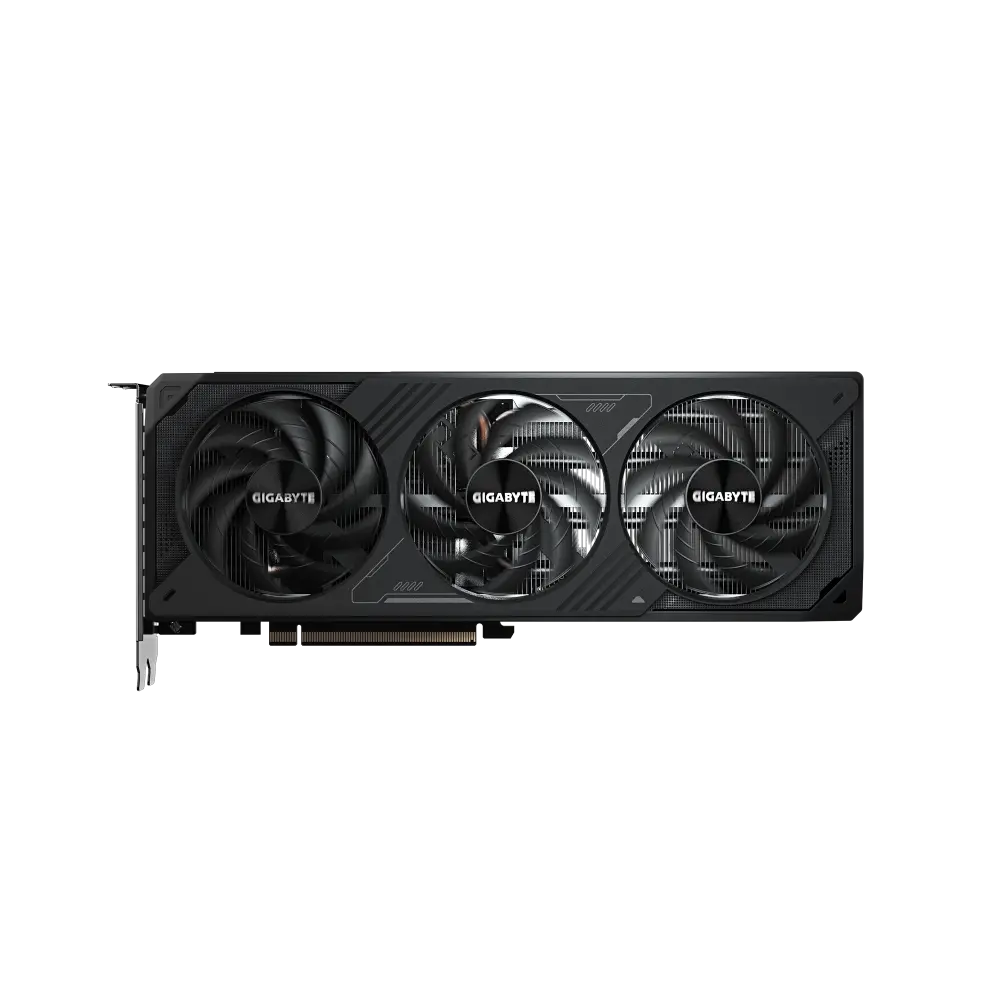

Compact Power for Small Form Factor Builds: GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G:

The GIGABYTE GeForce RTX™ 5070 WINDFORCE OC SFF 12G (GV-N5070WF3OC-12GD) delivers next-generation rendering power in a space-saving, compact triple-fan form factor engineered specifically for Small Form Factor (SFF) and space-constrained PC cases. Powered by NVIDIA architecture equipped with 12GB of ultra-fast GDDR7 VRAM, this factory-overclocked graphics card provides high frame rates and hardware acceleration for NVIDIA DLSS 4, real-time ray tracing, and AI workloads. Thermal performance is driven by the signature WINDFORCE cooling system, featuring alternate spinning fans, unique blade fans, composite copper heat pipes, screen cooling, and a durable protection metal backplate to ensure cool, stable operation under heavy gaming loads.

Key features:

Compact SFF-Optimized Triple-Fan Design: Engineered with a shortened and streamlined physical profile to fit comfortably into compact Micro-ATX and Mini-ITX Small Form Factor chassis without sacrificing cooling capacity.
Next-Gen GDDR7 Memory Architecture: Outfitted with 12GB of high-speed GDDR7 VRAM to handle high-resolution texture streaming, complex ray-traced scenes, and intensive creative applications.
WINDFORCE Thermal Solution: Utilizes three specialized fans with alternate spinning technology to reduce air turbulence and enhance pressure airflow across direct-touch copper heat pipes.
PCIe 5.0 & DisplayPort 2.1b Support: Fully compatible with next-generation motherboard bandwidth slots and high-refresh-rate multi-monitor setups.
Protection Metal Backplate: A rigid metal backplate reinforces structural rigidity to prevent card sag while providing clean aesthetics and auxiliary passive thermal dissipation.

specs:

Brand	GIGABYTE
Model	GIGABYTE GeForce RTX™ 5070 WINDFORCE OC SFF 12G (GV-N5070WF3OC-12GD)
Product Number	9VN5070WO-00-G10
Graphic Engine	GeForce RTX™ 5070
Engine Clock	2542 MHz (Reference card : 2512 MHz)
CUDA Core	6144
Bus Standard	PCI Express 5.0
Video Memory	12 GB GDDR7
Memory Speed	28 Gbps
Memory Interface	192 bit
Memory Bandwidth	672.0 GB/s
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.4
Resolution	Digital Max Resolution 7680 x 4320
Interface	3x DisplayPort 2.1b // 1x HDMI 2.1b
NVlink/ Crossfire Support	No
Maximum Display Support	4
Accessories	Quick guide // 1x 12V-2x6 to 2x PCIe 8pin adapter
PCB Form	ATX
Recommended PSU	750W
Power Connectors	1x 16 Pin
Slot	2 Slot
Weight	830g
Dimensions	L=282 W=110 H=50 mm
Resources	https://www.gigabyte.com/Graphics-Card/GV-N5070WF3OC-12GD/sp
