Next-Gen RDNA 4 Architecture for Ultra-Smooth 1440p Gaming:

The Gigabyte Radeon RX 9060 XT GAMING OC 16GB graphics card is engineered to deliver high-frame-rate 1440p gaming and AI-accelerated performance. Powered by AMD's RDNA 4 architecture (Navi 44 GPU) and equipped with 16GB of high-speed GDDR6 memory, this factory-overclocked card gives gamers and creators the VRAM buffer needed for modern ray tracing and texture-heavy titles.

Key Architectural & Thermal Highlights:

AMD RDNA 4 Architecture: Built on a 4nm process with 2048 Stream Processors and dedicated AI Accelerators for enhanced Ray Tracing and AMD FSR 4 upscaling.

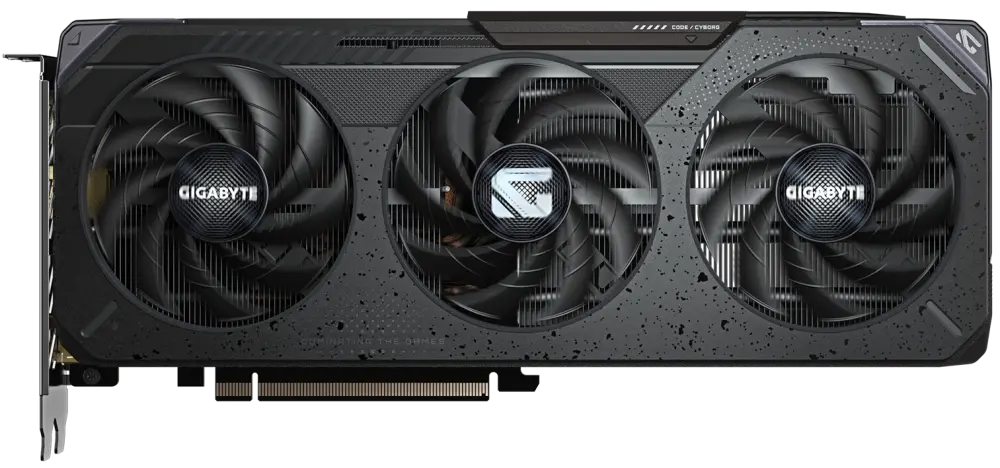

WINDFORCE Cooling System: Features 3x Hawk fans with alternate spinning, server-grade thermal conductive gel, composite copper heat pipes, and a large copper plate directly contacting the GPU and VRAM.
Factory Overclocked Boosts: Delivers an aggressive factory overclock up to 3320 MHz Boost Clock and 2780 MHz Game Clock for maximum out-of-the-box frame rates.
16GB GDDR6 Memory Buffer: Operates over a 128-bit memory interface at 20 Gbps, delivering up to 320 GB/s bandwidth to prevent memory bottlenecks in next-gen games.
Future-Proof Display Support: Equipped with DisplayPort 2.1a and HDMI 2.1b ports to support 8K high-refresh gaming displays with HDR.

specs:

Model	Radeon™ RX 9060 XT GAMING OC 16G
Product Number	GV-R9060XTGAMING OC-16GD
Graphic Engine	Radeon™ RX 9060 XT
Bus Standard	PCI Express 5.0
Engine Clock	Boost Clock: up to 3320MHz (Reference card: 3130MHz) - Game Clock: up to 2780MHz (Reference card: 2530MHz)
Stream Processors	2048
Video Memory	16GB GDDR6
Memory Speed	2518 MHz // 20.1 Gbps effective
Memory Interface	128bit
Memory Bandwidth	322.3GB/s
Tensor Compute Performance	FP16 (half): 54.39 TFLOPS (2:1) // FP32 (float): 27.20 TFLOPS // FP64 (double): 849.9 TFLOPS (1:32)
DirectX	DirectX 12 API
OpenGL	OpenGL®4.6
Vulkan API	Version: 1.3
Resolution	Digital Max Resolution 7680 x 4320
Interface	2x DisplayPort 2.1a // 1x HDMI 2.1b
NVlink/ Crossfire Support	No
Maximum Display Support	3
PCB Form	ATX
Dimensions	L=281 W=118 H=40 mm
Recommended PSU	450W
Power Connectors	1x 8 pin
Slot	2Slot
Accessories	Quick guide
Resources	https://www.gigabyte.com/Graphics-Card/GV-R9060XTGAMING-OC-16GD/sp

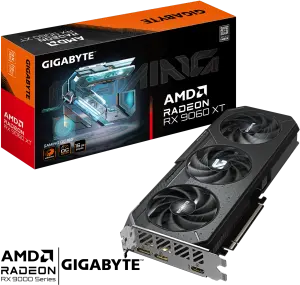

Gigabyte Radeon RX 9060 XT GAMING OC 16GB GDDR6 Graphics Card
