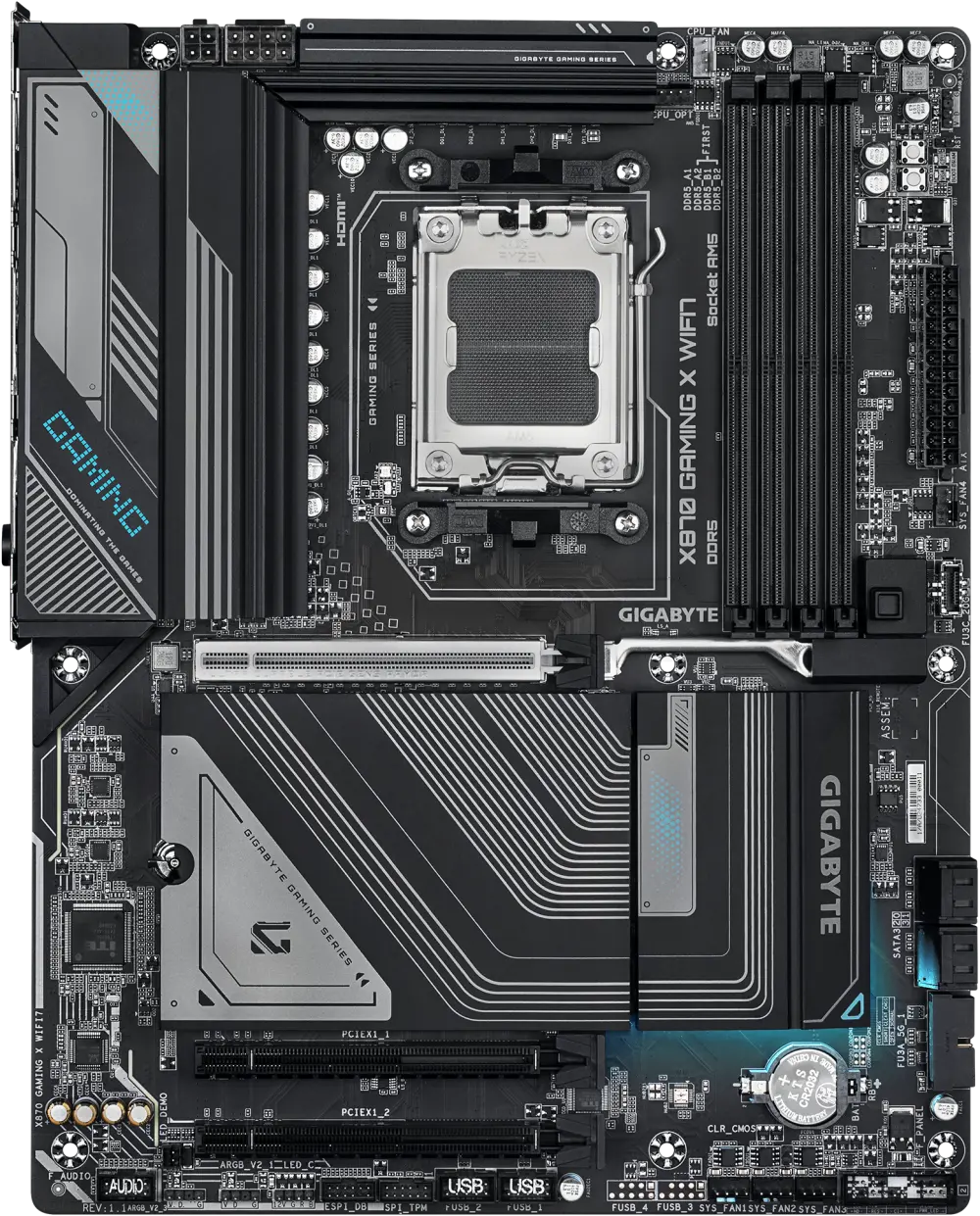

Build a high-performance AMD gaming PC with the Gigabyte X870 GAMING X WIFI7 AM5 ATX motherboard. Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, it delivers next-generation performance with DDR5 memory support, PCIe 5.0 connectivity, dual USB4 ports, integrated WiFi 7, Bluetooth 5.4, and high-speed 2.5GbE LAN. Whether you're building a gaming system or a workstation, the X870 GAMING X WIFI7 provides exceptional speed, expandability, and long-term upgrade potential.

Specs:

Brand	Gigabyte
Model	Gigabyte X870 GAMING X WIFI7
Product Number	9MX87GX7-00-G11 // 4719331865368
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset	AMD X870
BIOS	1x 256 Mbit flash // Use of licensed AMI UEFI BIOS // PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory	4x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity) of system memory
Memory Frequency	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Memory Features	Dual channel memory architecture // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: 2x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240Hz // Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 HDMI port, supporting a maximum resolution of 4096x2160@60Hz
Expansion Slots (CPU)	1x PCI Express x16 slot (PCIEX16), integrated in the CPU: 9000/7000 Series Processors support PCIe 5.0 x16 mode, 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots (Chipset)	Chipset: 2x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Expansion Slots Compatibility	The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Storage (M.2)	1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: 9000/7000 Series support PCIe 5.0 x4/x2 SSDs, 8000 Series- Phoenix 1 support PCIe 4.0 x4/x2 SSDs, 8000 Series- Phoenix 2 support PCIe 4.0 x4/x2 SSDs // 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs // 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
Storage (SATA)	4x SATA 6Gb/s connectors
RAID Support	NVMe SSD: RAID 0, RAID 1, RAID 5, and RAID 10 support // SATA: RAID 0, RAID 1, and RAID 10 support
USB (CPU)	CPU+ASMedia USB4® controller: 2x USB4® USB Type-C® ports on the back panel // CPU: 1x USB 3.2 Gen 2 Type-A port (red) on the back panel, 1x USB 3.2 Gen 1 port on the back panel // CPU+USB 2.0 Hub: 4x USB 2.0/1.1 ports on the back panel
USB (Chipset)	1x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header // 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) // 4x USB 2.0/1.1 ports available through the internal USB headers
Audio	Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel
Ethernet	Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)
WIFI & Bluetooth	Realtek® Wi-Fi 7 RTL8922AE: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands // BLUETOOTH 5.4 // Support for 11be 160MHz wireless standard
Internal I/O Connectors	1x 24-pin ATX main power connector // 1x 8-pin ATX 12V power connector // 1x 4-pin ATX 12V power connector // 1x CPU fan header // 1x CPU fan/water cooling pump header // 4x system fan headers // 3x addressable RGB Gen2 LED strip headers // 1x RGB LED strip header // 4x SATA 6Gb/s connectors // 3x M.2 Socket 3 connectors // 1x front panel header // 1x front panel audio header // 1x USB Type-C® header, with USB 3.2 Gen 2x2 support // 1x USB 3.2 Gen 1 header // 2x USB 2.0/1.1 headers // 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) // 1 x power button // 1x reset button // 1x reset jumper // 1x Clear CMOS jumper
Back Panel I/O Ports	1x Q-Flash Plus button // 2x antenna connectors (2T2R) // 1x HDMI port // 2x USB4® USB Type-C® ports // 1x USB 3.2 Gen 2 Type-A port (red) // 3x USB 3.2 Gen 1 ports // 4x USB 2.0/1.1 ports // 1x RJ-45 port // 3x audio jacks
Features	Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) // LAN bandwidth management software
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5x24.4cm
