CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ // AMD Ryzen™ 8000 Series Processors // AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870E
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11ax 80MHz wireless standard // Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
I/O Controller	iTE® I/O Controller Chip
Operating System	Support for Windows 11 64-bit.
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Memory	Support for DDR5 Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules // 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory // Dual channel memory architecture // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. //Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. // - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.)
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) // LAN bandwidth management software
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. // When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. // AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode // AMD Ryzen™ 8000 Series Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) // Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs // AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs // AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs // AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs // 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: // AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. // 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. // RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel // CPU: - 1 x USB 3.2 Gen 1 port on the back panel // Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Back Panel I/O Ports	1 x Q-Flash Plus button // 4 x USB 2.0/1.1 ports // 4 x USB 3.2 Gen 1 ports // 1 x HDMI port (Note) // 2 x USB4® USB Type-C® ports (DisplayPort (Note)) // 1 x RJ-45 port // 2 x USB 3.2 Gen 2 Type-A ports (red) // 2 x antenna connectors (2T2R) // 2 x audio jacks // 1 x optical S/PDIF Out connector
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. // High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. // Support for S/PDIF Out
Internal I/O Connectors	1 x 24-pin ATX main power connector // 2 x 8-pin ATX 12V power connector // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 3 x system fan headers // 1 x system fan/water cooling pump header // 3 x addressable RGB Gen2 LED strip headers // 1 x RGB LED strip header // 4 x SATA 6Gb/s connectors // 4 x M.2 Socket 3 connectors // 1 x front panel header // 1 x front panel audio header // 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support // 2 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) // 1 x HDMI port (Note) // 1 x power button // 1 x reset button // 1 x reset jumper // 1 x Clear CMOS jumper

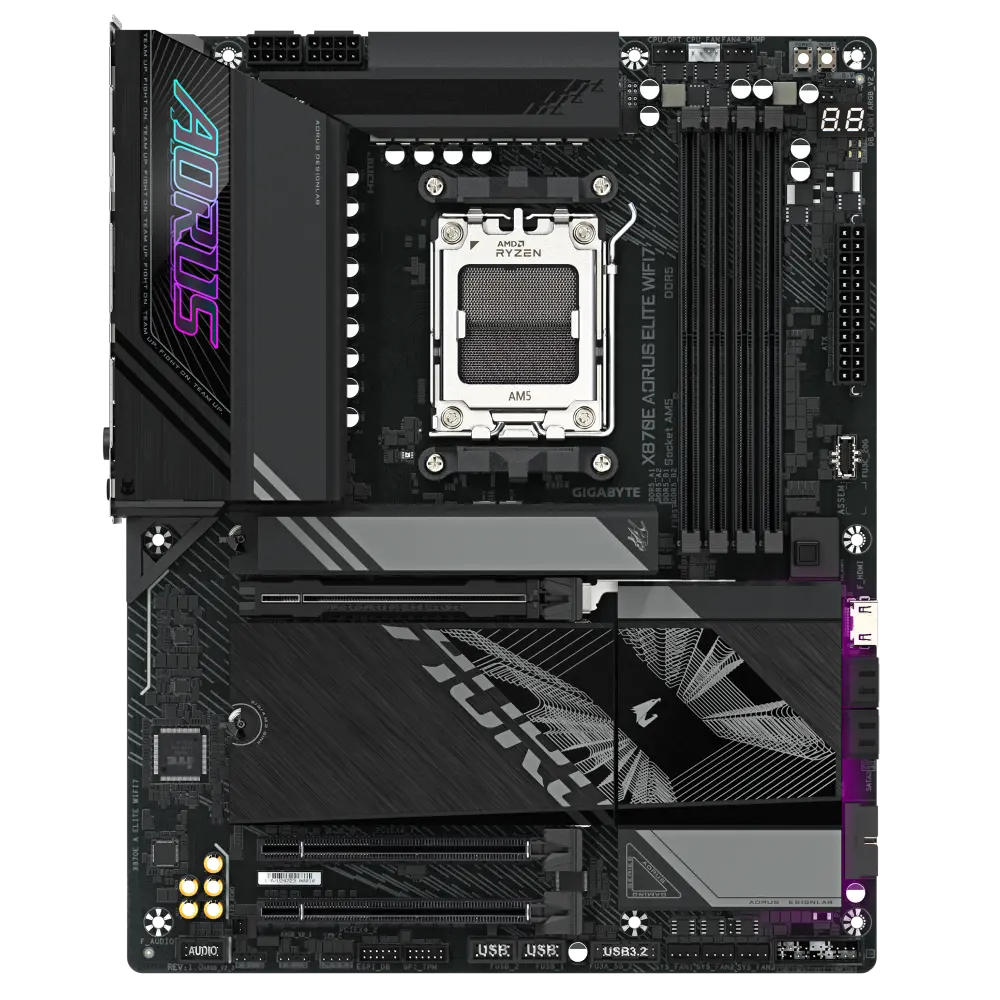

Gigabyte X870E AORUS ELITE WiFi 7 AM5 ATX Motherboard

Product Description

Gigabyte X870E AORUS ELITE WiFi 7 AM5 ATX Motherboard
