Brand	Gigabyte
Model	Gigabyte Z790 EAGLE AX
Product Number	9MZ79EGLX-00-G12
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors // L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	4x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity) of system memory
Memory Frequency	14th and 13th Generation Intel® Core™ i9/i7 Pocessors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules // 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules
Memory Features	Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz - 1x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
Expansion Slots (CPU)	1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots (Chipset)	1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Storage (CPU)	1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage (Chipset)	1x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Storage (SATA)	4x SATA 6Gb/s connectors
RAID Support	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices // RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (Chipset)	1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB // 2x USB 2.0/1.1 ports on the back panel
USB (Chipset+USB 2.0 Hub)	4x USB 2.0/1.1 ports, available through the internal USB headers
Audio	Realtek® Audio CODEC // High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out
Ethernet	Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)
WIFI & Bluetooth	Realtek® Wi-Fi 6E RTL8852CE: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Internal I/O Connectors	1x 24-pin ATX main power connector // 2x 8-pin ATX 12V power connectors // 1x CPU fan header // 1x CPU fan/water cooling pump header // 3x system fan headers // 1x system fan/water cooling pump header // 2x addressable LED strip headers // 3x M.2 Socket 3 connectors // 4x SATA 6Gb/s connectors // 1x front panel header // 1x front panel audio header // 1x S/PDIF Out header // 1x USB Type-C® header, with USB 3.2 Gen 1 support // 1x USB 3.2 Gen 1 header // 2x USB 2.0/1.1 headers // 2 x Thunderbolt™ add-in card connectors // 1x Trusted Platform Module header // 1x reset button // 1x Q-Flash Plus button // 1x reset jumper // 1x Clear CMOS jumpe
Back Panel I/O Ports	1x PS/2 keyboard/mouse port // 1x USB Type-C® port, with USB 3.2 Gen 2 support // 1x USB 3.2 Gen 2 Type-A port (red) // 4x USB 3.2 Gen 1 ports // 2x USB 2.0/1.1 ports // 2x SMA antenna connectors (1T1R) // 1x HDMI port // 1x DisplayPort // 1x RJ-45 port // 3x audio jacks
Features	Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) // LAN bandwidth management software
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control
Operating System	Support for Windows 11 64-bit // Support for Windows 10 64-bit
BIOS	1x 256 Mbit flash // Use of licensed AMI UEFI BIOS // PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5x24.4cm

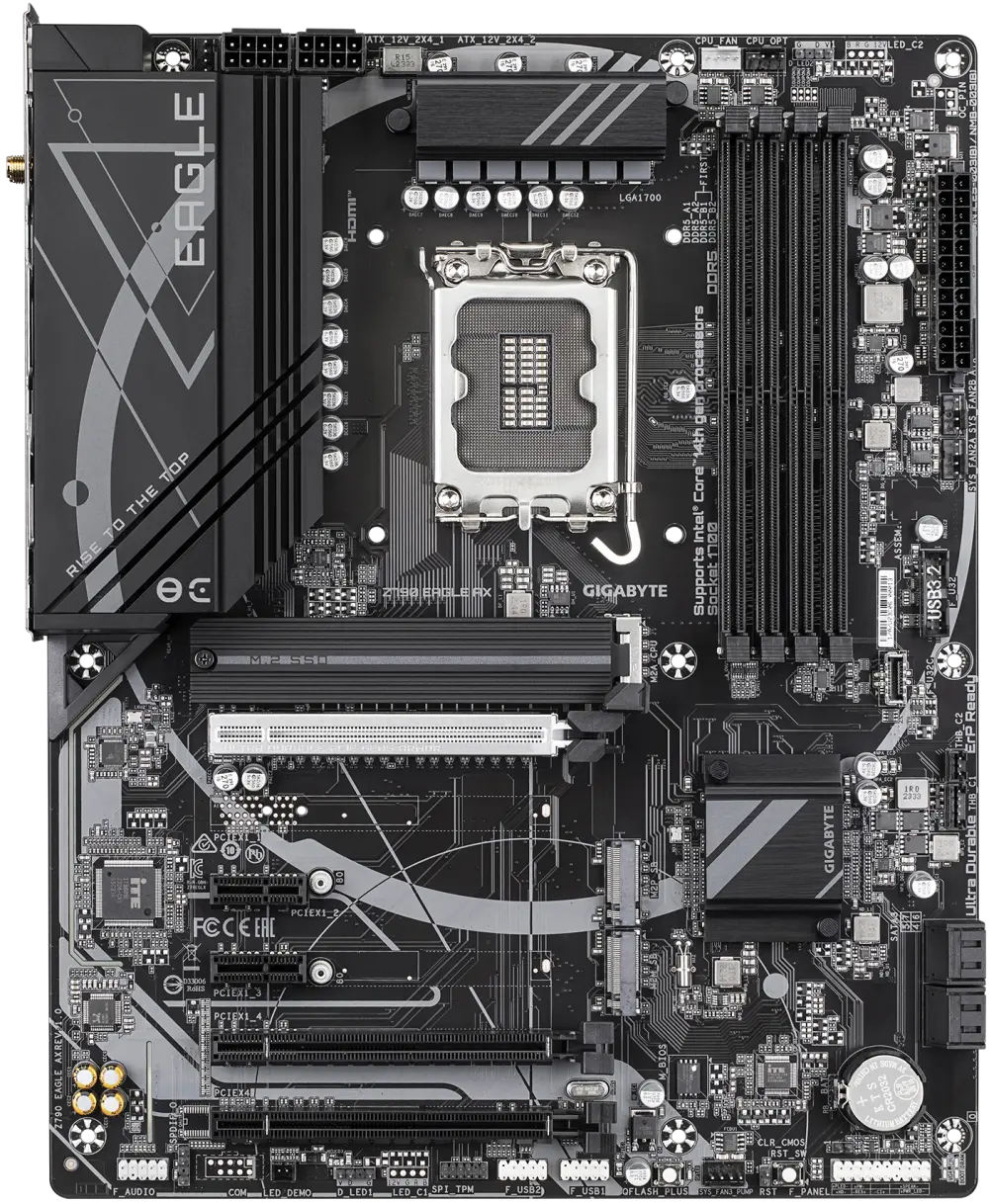

Gigabyte Z790 EAGLE AX LGA1700 ATX Motherboard
