Next-Gen Core Engine: Extreme Z890 Power, Native USB4, and Future-Proof WiFi 7

Step into the absolute frontier of desktop computing with the Gigabyte Z890 EAGLE WIFI7 ATX motherboard. Built precisely to harness the architectural shift of Intel® Core™ Ultra Processors (Series 2), this advanced hub centers around the new LGA1851 socket and high-tier Intel Z890 chipset to enable true AI-accelerated system performance. To handle these advanced, high-efficiency processors, Gigabyte deploys a robust Digital twin 14+1+2 phase VRM solution armed with 60A DrMOS power stages and VRM Thermal Armor Advanced, guaranteeing cool, unfaltering electricity delivery under total multi-threaded gaming or rendering tasks.

Data delivery

breaks speed barriers across every physical layer. Four dual-channel DIMM slots leverage advanced D5 Bionic Corsa technology to unlock stable, breathtaking extreme memory speeds up to DDR5 9200 MHz (O.C.). Graphics configurations gain access to massive bandwidth via a primary steel-reinforced PCIe 5.0 x16 slot boasting a 10x structural load-bearing capacity to safely secure heavy, next-gen graphics cards. Storage pipelines are equally rapid, packing a dedicated PCIe 5.0 x4 M.2 layout alongside three additional PCIe 4.0 M.2 slots, all running cool underneath an integrated M.2 Thermal Guard system.

Assembly hassle is completely phased out by Gigabyte’s premier DIY accommodations, utilizing an EZ-Latch Plus setup for screwless M.2 installation and quick-release graphics cards. The rear connectivity cluster features an elite USB4 Type-C port supporting massive 40Gbps transfers and DisplayPort video out. Backed by an ultra-fast Realtek 2.5GbE LAN port and cutting-edge Wi-Fi 7 wireless connectivity utilizing Multi-Link Operation (MLO) for lag-free performance, your online data pipelines are permanently secure. Secure the ultimate foundation for your system upgrade today with an official local warranty at Delta-Computer.net.

specs:

Brand	Gigabyte
Model	Gigabyte Z890 EAGLE WIFI7
CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors / L3 cache varies with CPU
Chipset	Intel® Z890 Express Chipset
BIOS	1x 256 Mbit flash / Use of licensed AMI UEFI BIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5x24.4cm
LAN	Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)
Operating System	Support for Windows 11 64-bit
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. // 4 x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity) of system memory / Dual channel memory architecture / Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) / Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules / Support for Extreme Memory Profile (XMP) memory modules / Support CUDIMM memory module
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144Hz / * Support for DisplayPort 2.1 version / - 1x DisplayPort, supporting a maximum resolution of 3840x2160@144Hz / * Support for DisplayPort 2.1 version
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) / - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6GHz carrier frequency bands / - BLUETOOTH 5.4 / - Support for 11be 160MHz wireless standard // Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) / - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands / -BLUETOOTH 5.4 / - Support for 11be 160MHz wireless standard
Storage	CPU: 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) / 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) // Chipset: 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) // 1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) / - 4x SATA 6Gb/s connectors / RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices / RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
I/O Controller	iTE® I/O Controller Chip
USB	CPU: - 1x USB4® USB Type-C® port on the back panel // Chipset: - 1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header / - 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel / - 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) // Chipset +2 USB 2.0 Hubs: - 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1x 24-pin ATX main power connector / 2x 8-pin ATX 12V power connectors / 1x CPU fan header / 1x CPU fan/water cooling pump header / 3x system fan headers / 1x system fan/water cooling pump header / 3x addressable RGB Gen2 LED strip headers / 1x RGB LED strip header / 4x M.2 Socket 3 connectors / 4x SATA 6Gb/s connectors / 1x front panel header / 1x front panel audio header / 1x USB Type-C® header, with USB 3.2 Gen 2 support / 1x USB 3.2 Gen 1 header / 2x USB 2.0/1.1 headers / 2x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) / 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) / 1x power button / 1x Q-Flash Plus button / 1x reset button / 1x reset jumper / 1x Clear CMOS jumper
Unique Features	Support for GIGABYTE Control Center (GCC) // Support for Q-Flash / Support for Q-Flash Plus / Support for Smart Backup
Audio	Realtek® Audio CODEC / High Definition Audio / 2/4/5.1/7.1-channel
Bundled Software	Norton® Internet Security (OEM version) / LAN bandwidth management software
Expansion Slots	CPU: 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) // * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. // Chipset: 2x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
H/W Monitoring	Voltage detection / Temperature detection / Fan speed detection / Water cooling flow rate detection / Fan fail warning / Fan speed control
Back Panel I/O Ports	1x USB4® USB Type-C® port (DisplayPort (Note)) / 2x USB 3.2 Gen 2 Type-A ports (red) / 3x USB 3.2 Gen 1 ports / 4x USB 2.0/1.1 ports / 1x DisplayPort (Note) / 2x antenna connectors (2T2R) / 1x RJ-45 port / 3x audio jacks

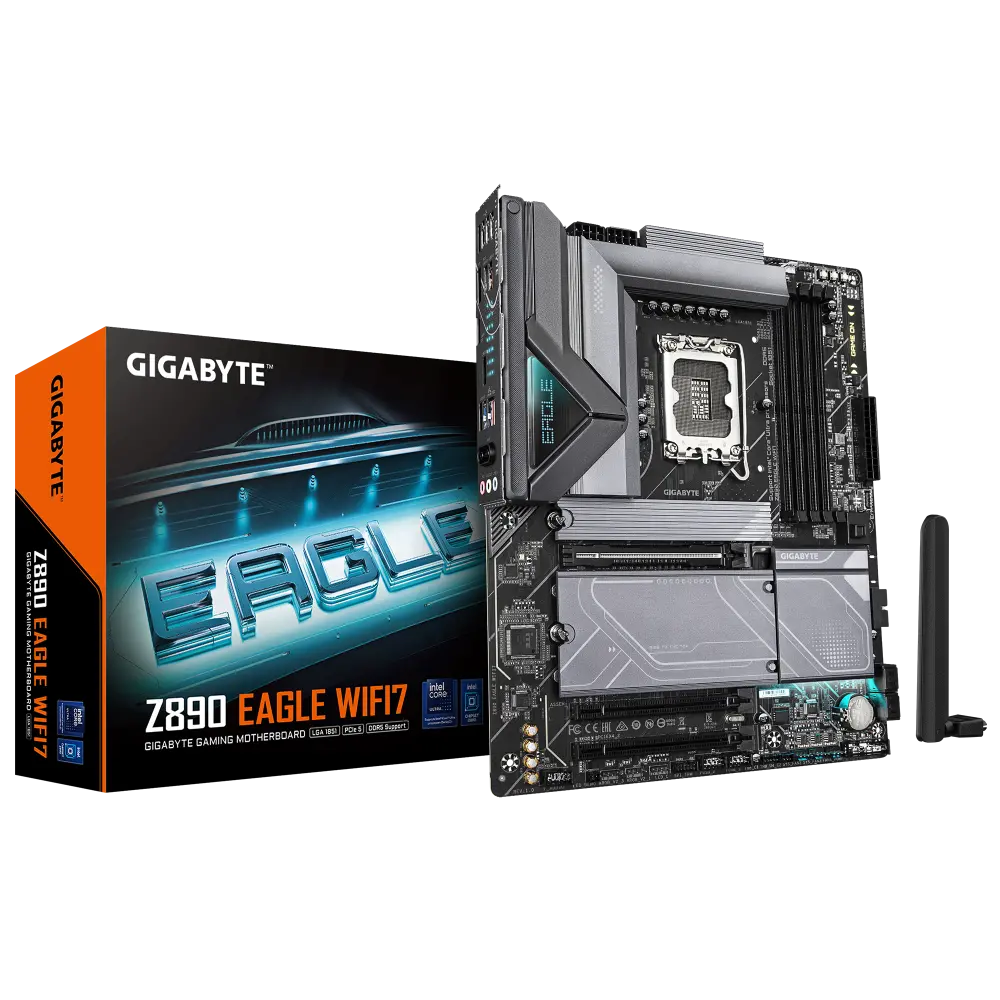

Gigabyte Z890 EAGLE WIFI7 LGA1851 ATX Motherboard
