brand	Intel®
Model Number	BX8071514700F
Product Collection	Intel® Core™ i7 Processors (14th gen)
Vertical Segment	Desktop
Processor Number	i7-14700F
Lithography	Intel 7
Total Cores	20
Performance-cores	8
Efficient-cores	12
Total Threads	28
Max Turbo Frequency	5.4GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡	5.4GHz
Performance-core Max Turbo Frequency	5.3GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Base Frequency	2.1GHz
Efficient-core Base Frequency	1.5GHz
Cache	33MB Intel® Smart Cache
Total L2 Cache	28MB
Processor Base Power	65W
Maximum Turbo Power	219W
Max Memory Size	192GB
Memory Types	Up to DDR5 5600MT/s // Up to DDR4 3200MT/s
Max of Memory Channels	2
Max Memory Bandwidth	89.6GB/s
Direct Media Interface (DMI) Revision	4.0
Max of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16+4, 2x8+4
Max of PCI Express Lanes	20
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020C
Package Size	45.0x37.5mm
Max Operating Temperature	100°C
Intel® Turbo Boost Technology	2.0
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Intel® Gaussian & Neural Accelerator	3.0
Intel® Volume Management Device	Yes
Intel® Deep Learning Booston CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Max Technology 3.0	Yes
Intel® Hyper-Threading Technology	Yes
Intel® 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes

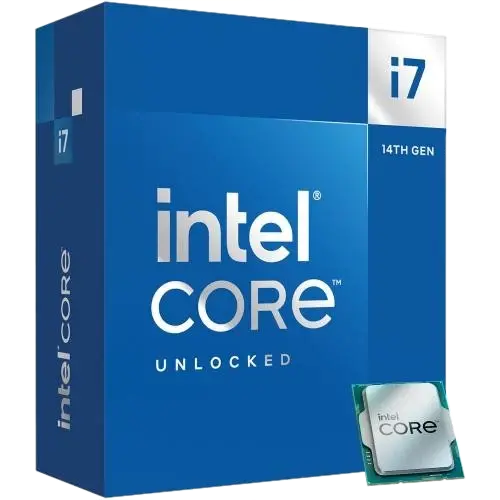

Intel Core i7-14700F - 20 Core 28 Thread, 5.40GHz Turbo, 33MB Cache, PCIe 5.0, LGA1700 14th
