Product Collection	Intel® Core™ Ultra Processors (Series 2)
Vertical Segment	Desktop
Processor Number	225F
Lithography	TSMC N3B
Total Cores	10
Performance-cores	6
Efficient-cores	4
Total Threads	10
Max Turbo Frequency	4.9 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Efficient-core Base Frequency	2.7 GHz
Performance-core Base Frequency	3.3 GHz
Cache	30 MB Intel® Smart Cache
Total L2 Cache	22 MB
Processor Base Power	65 W
Maximum Turbo Power	121 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
AI Software Frameworks Supported by CPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Memory Types	Up to DDR5 6400 MT/s
Use Conditions	PC/Client/Tablet
Max Memory Size (dependent on memory type)	256 GB
Max of Memory Channels	2
NPU Specifications	NPU Name: Intel® AI Boost // NPU Peak TOPS (Int8): 13 // Sparsity Support: Yes // Windows Studio Effects Support: Yes // AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Direct Media Interface (DMI) Revision	4
Max of DMI Lanes	8
Intel® Thunderbolt™ 4	Yes
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max of PCI Express Lanes	24
Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2022C
Max Operating Temperature	105 °C
Intel® Volume Management Device (VMD)	Yes
Intel® Turbo Boost Technology	2
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Intel® Gaussian & Neural Accelerator	3.5
Intel® Thread Director	Yes
Embedded Options Available	Yes
Intel® Volume Management Device	Yes
Intel® Speed Shift Technology	Yes
Intel® 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® AES New Instructions	Yes
Intel vPro® Eligibility	Intel vPro® Enterprise
Intel vPro® Security Eligibility	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes

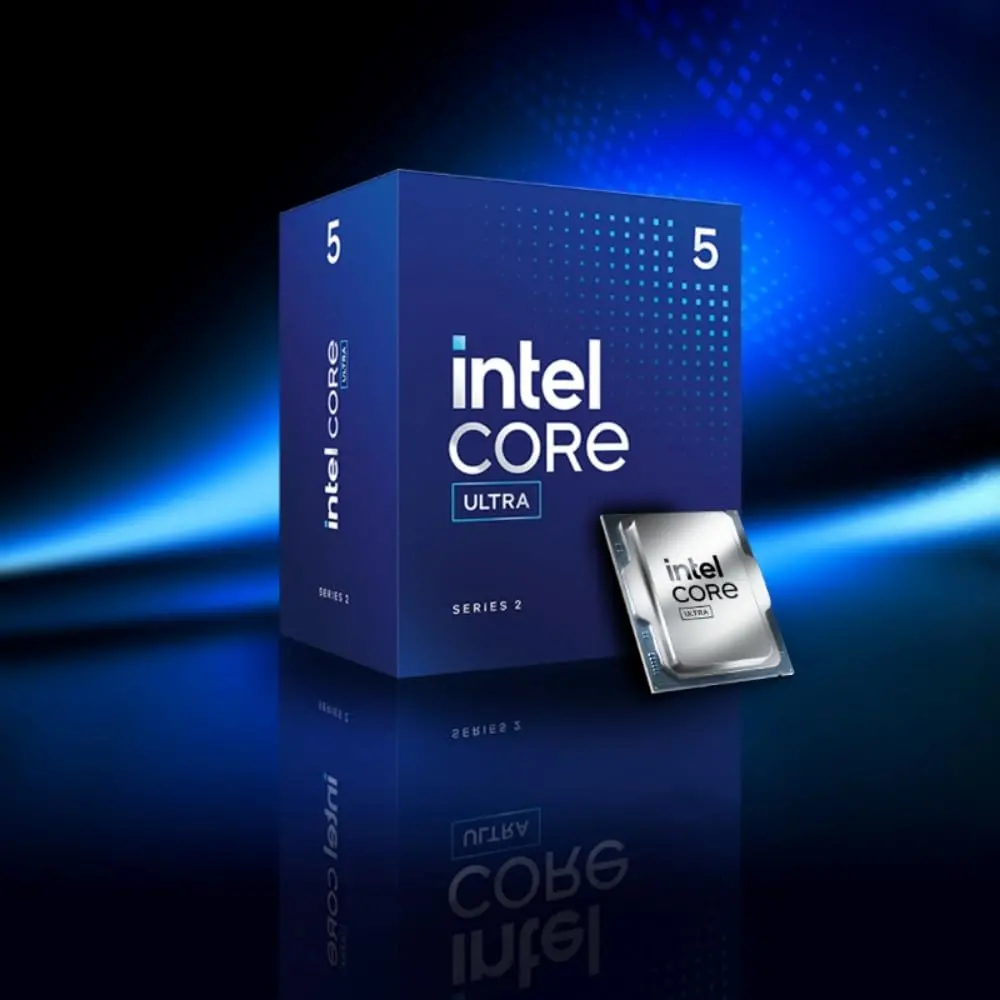

Intel Core Ultra 5 225F Processor –Box -10 Cores, AI Boost, Intel 4 Tech, PCIe 5.0, Wi-Fi 7

Product Description
