Product Collection	Intel® Core™ Ultra Processors (Series 2)
Vertical Segment	Desktop
Processor Number	245K
Overall Peak TOPS (Int8)	30
Total Cores	14
Performance-cores	6
Efficient-cores	8
Total Threads	14
Max Turbo Frequency	5.2GHz
Performance-core Max Turbo Frequency	5.2GHz
Efficient-core Max Turbo Frequency	4.6GHz
Performance-core Base Frequency	4.2GHz
Efficient-core Base Frequency	3.6GHz
Cache	24MB Intel® Smart Cache
Total L2 Cache	26MB
Processor Base Power	125W
Maximum Turbo Power	159W
Intel® Deep Learning Boost on CPU	Yes
AI Software Frameworks Supported by CPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography	TSMC N3B
Embedded Options Available	No
Use Conditions	PC/Client/Tablet/Workstation
Max Memory Size	192GB
Memory Types	Up to DDR5 6400MT/s
Max of Memory Channels	2
Max Memory Speed	6400MHz
ECC Memory Supported ‡	Yes
GPU Name	Intel® Graphics
Graphics Base Frequency	300MHz
Graphics Max Dynamic Frequency	1.9GHz
GPU Peak TOPS (Int8)	8
Graphics Output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores	4
Max Resolution (HDMI)‡	4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)‡	8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡	4K @ 60Hz
*DirectX Support**	12
*OpenGL Support**	4.5
*OpenCL Support**	3
Intel® Quick Sync Video	Yes
Displays Supported	4
Device ID	0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
NPU Name	Intel® AI Boost
NPU Peak TOPS (Int8)	13
Sparsity Support	Yes
Windows Studio Effects Support	Yes
AI Software Frameworks Supported by NPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Direct Media Interface (DMI) Revision	4
Max of DMI Lanes	8
Intel® Thunderbolt™ 4	Yes
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max of PCI Express Lanes	24
Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2020A
Max Operating Temperature	105°C
Intel® Volume Management Device (VMD)	Yes
Intel® Gaussian & Neural Accelerator	3.5
Intel® Thread Director	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology	2
Intel® 64	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel vPro® Eligibility ‡	Intel vPro® Enterprise, Intel vPro® Platform
Intel® Hardware Shield Eligibility ‡	Yes
Intel® Threat Detection Technology (TDT)	Yes
Intel® Active Management Technology (AMT) ‡	Yes
Intel® Standard Manageability (ISM) ‡	Yes
Intel® Remote Platform Erase (RPE) ‡	Yes
Intel® One-Click Recovery ‡	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® Total Memory Encryption - Multi Key	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® Trusted Execution Technology ‡	Yes
Execute Disable Bit	Yes
Intel® OS Guard	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Stable IT Platform Program (SIPP)	Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes

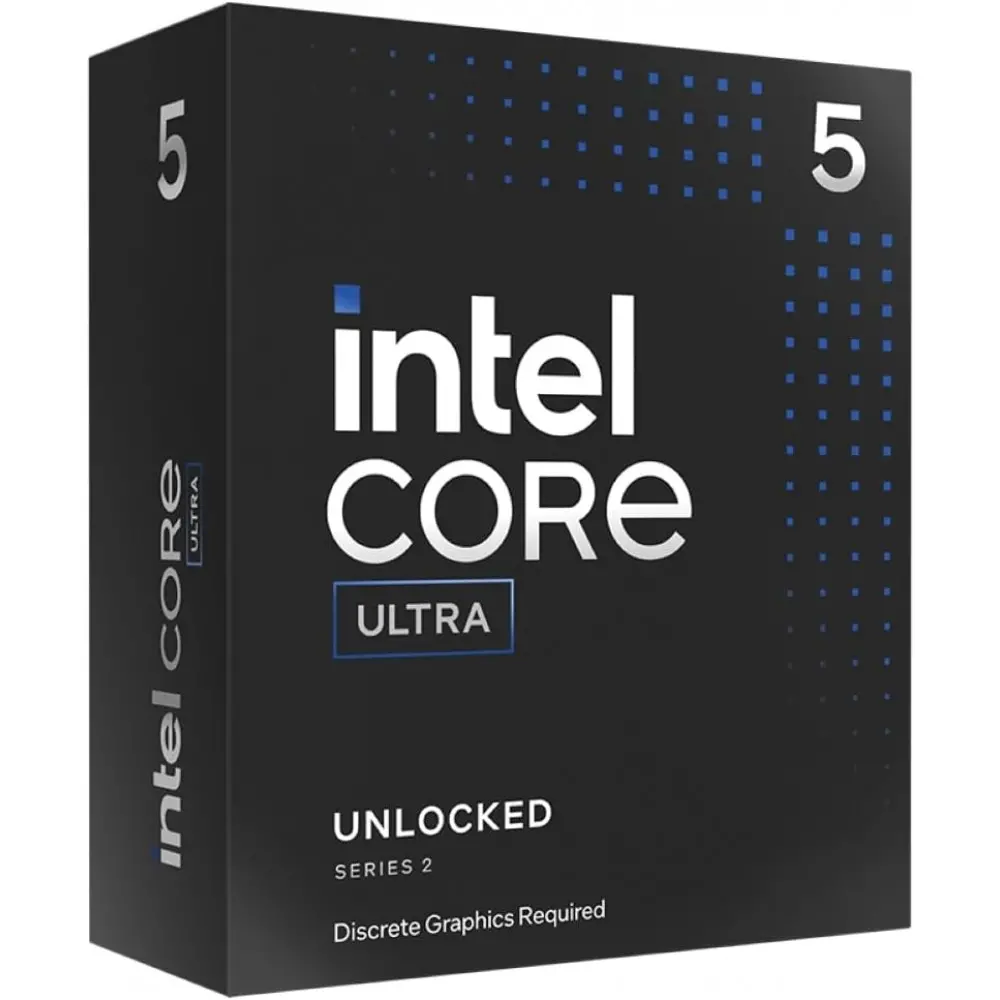

Intel Core Ultra 5 Processor 245K 24M Cache, up to 5.20GHz
