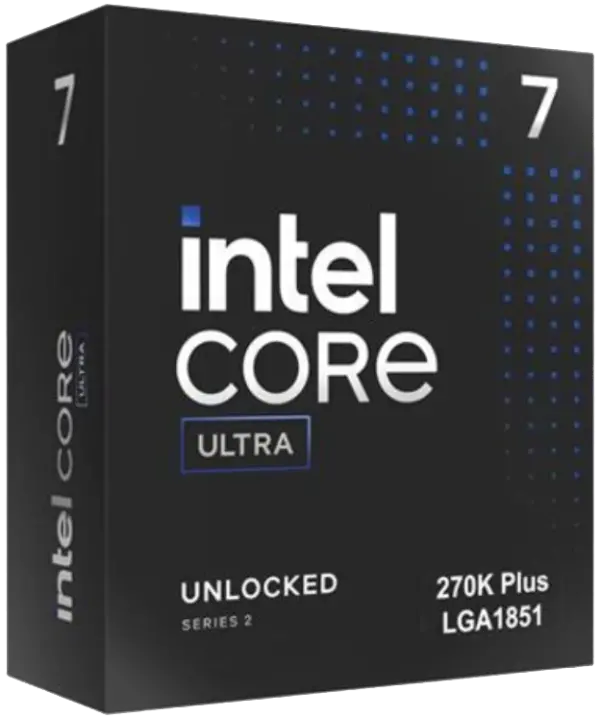

The Intel Core Ultra 7 270K Plus is a high-performance unlocked desktop processor built for enthusiasts, gamers, and content creators. Featuring a hybrid architecture with 24 cores (8 Performance-cores and 16 Efficient-cores), boost frequencies up to 5.5GHz, DDR5 memory support, PCIe 5.0 connectivity, and integrated Intel Graphics, it delivers exceptional gaming, multitasking, and professional application performance. Designed for the LGA1851 platform, the Core Ultra 7 270K is an excellent choice for next-generation gaming PCs and powerful workstations.

Key Features:

Intel Core Ultra 7 270K plus desktop processor
24 cores (8P + 16E) / 24 threads
Up to 5.5GHz Max Turbo Frequency
Intel LGA1851 socket
DDR5 memory support
PCIe 5.0 support
Integrated Intel Graphics
Intel AI acceleration
Unlocked for overclocking
Ideal for gaming, streaming, AI workloads, and content creation

specs:

Brand	Intel
Model	Intel® Core™ Ultra 7 processor 270K Plus 36M Cache, up to 5.50 GHz
Product Number	BX80768270K
Product Collection	Intel® Core™ Ultra Processors (Series 2)
Processor Number	270K PLUS
Total Cores	24
Performance-cores	8
Efficient-cores	16
Total Threads	24
Max Turbo Frequency	5.5 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency	5.5 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Performance-core Base Frequency	3.7 GHz
Efficient-core Max Turbo Frequency	4.7 GHz
Efficient-core Base Frequency	3.2 GHz
Cache	36 MB Intel® Smart Cache
Total L2 Cache	40 MB
Overall Peak TOPS (Int8)	36
Processor Base Power	125 W
Maximum Turbo Power	250 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
AI Software Frameworks Supported by CPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Max Memory Size	256 GB
Memory Types	Up To DDR5 7200 MT/s
Max of Memory Channels	2
ECC Memory Supported	Yes
GPU Name	Intel® Graphics
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	2 GHz
Graphics Output	eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores	4
Max Resolution	HDMI: 4096X2304 @ 60Hz (HDMI 2.1 TMDS) // 7680x4320 @ 60Hz (HDMI 2.1 FRL) // DP: 7680x4320 @ 60Hz // eDP - Integrated Flat Panel: 3840x2400 @ 120Hz
*DirectX Support**	12
*OpenGL Support**	4.5
*OpenCL Support**	3
Encode/Decode	H.264 Hardware: Yes // H.265 (HEVC) Hardware: Yes // AV1: Yes // Intel® Quick Sync Video: Yes
NPU Specifications	NPU Name: Intel® AI Boost // NPU Peak TOPS (Int8): 13 // Sparsity Support: Yes // Windows Studio Effects Support: Yes // AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Direct Media Interface (DMI) Revision	4
Max of DMI Lanes	8
Intel® Thunderbolt™ 4	Yes
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max of PCI Express Lanes	24
Sockets Supported	FCLGA1851
Thermal Solution Specification	PCG 2020A
Max Operating Temperature	105 °C
Intel® Turbo Boost Technology	2.0
Instruction Set	64-bit
Package Size	45.0 mm x 37.5 mm
Intel® Gaussian & Neural Accelerator	3.5
Intel® Volume Management Device	Yes
Intel® Deep Learning Booston CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Max Technology 3.0	Yes
Intel® Hyper-Threading Technology	Yes
Intel® 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes
Resources	https://www.intel.com/content/www/us/en/products/sku/245692/intel-core-ultra-7-processor-270k-plus-36m-cache-up-to-5-50-ghz/specifications.html
